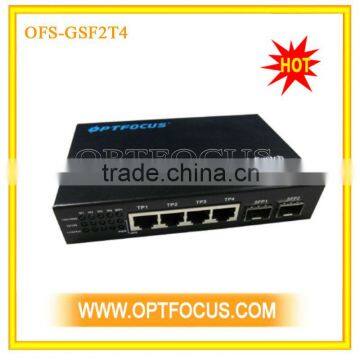

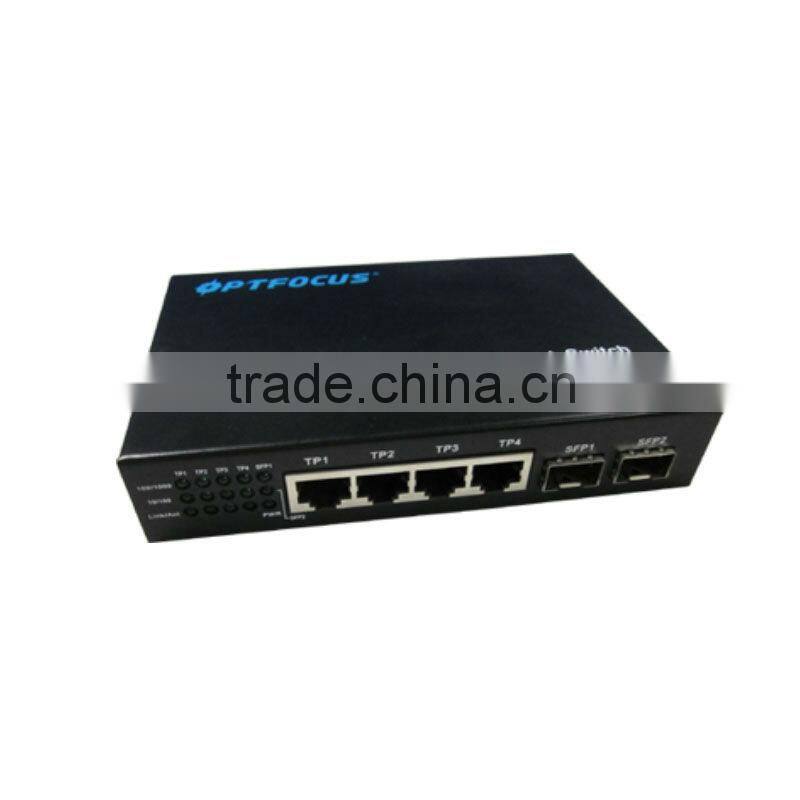

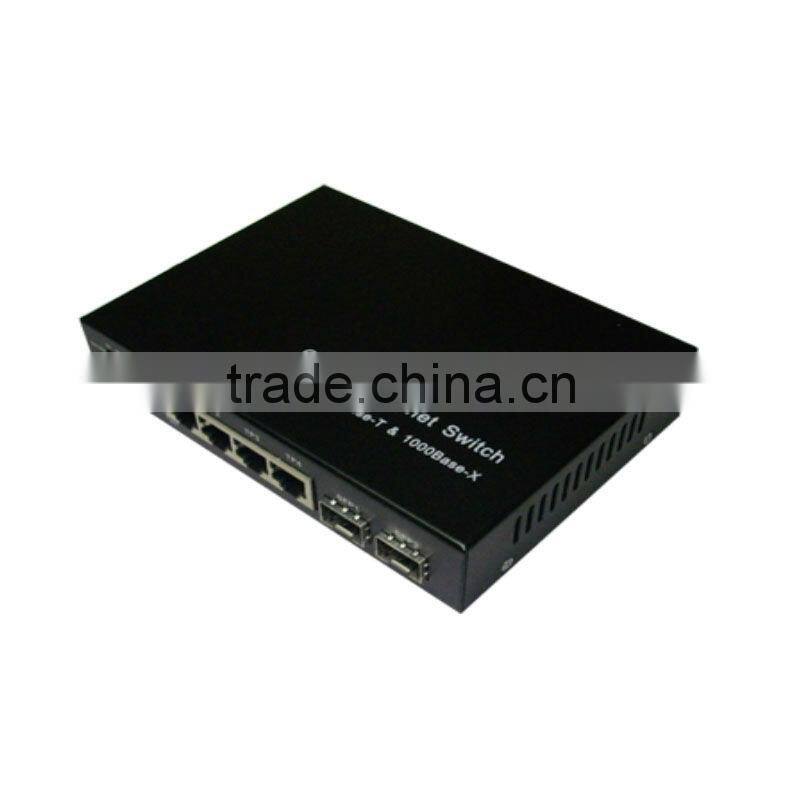

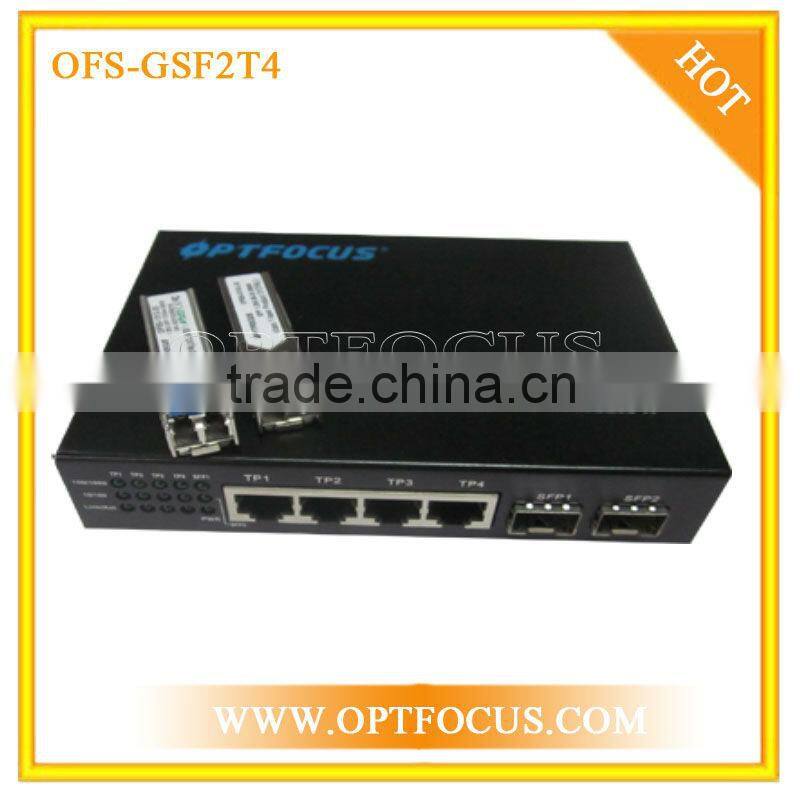

10/100/1000M 4UTP+2SFP Media Converter
OFS-GS2F4T 6 ports Gigabit Ethernet Switch has four 10/100/1000M UTP ports and two 1000M SFP sockets. Customer can choose different 1000M SFP module according as his demand, such as 1000Base-T,1000Base-SX or 1000Base-LX etc. The product is possessed of stable performance, excellent quality and reasonable price with adopting latest IC from USA. It is applicable to use in constructing of Optical Fiber Ethernet.
Main features
It can switch Ethernet signals among 10/100/1000M UTP ports (T) and 1000M Optical Fiber Interfaces (X)
Auto negotiation function supports UTP ports to auto 10/100/1000M and Full Duplex/Half Duplex.
The SFP slot supports 1000M and Full Duplex mode.
Supports flow control and broadcast storm protection.
Supports VLAN and QoS.
Supports max 10K bytes frame.
It is low power consume (4W), low heat, and good reliability.
Technical Specifications
Operating standards:IEEE802.3z/AB,10/100/1000Base-T and 1000Base-SX/LX
MAC address table: 1K
Frame buffer memory:1MKb
Switching capacity:12G
Connector: UTP:RJ-45,10/100/1000Mbps;
SFP slot:1000Mbps;
Cable:UTP:Cat.5 or 6 UTP(the max distance up to 100m)
Multimode Fiber:50/125,62.5/125μm(the max distance up to 224/550m)
Singlemode Fiber:8/125,8.7/125,9/125μm(the max distance up to 10~100 km)
Flow control:Full Duplex: IEEE802.3x flow control;
Half Duplex: back pressure flow control
LED:PWR,F1 Link/Act,F2 Link/Act;TP1~TP4 Link/Act,TP1~TP4 100,TP1~TP4 1000;
Power Requirement: AC220V(100-240V),50~60Hz;DC:V,2A
Ambient Temperature:0 ~ +50°C;
torage Temperature:-20 ~ +70°C;
umidity:% ~ 90%;
imensions:30(high)×140(width)×90(length)mm;
Order Information
Model |
Product description |
OFS-GSF2T4 |
6 ports Gigabit Ethernet Optical Fiber Switch with two 1000M SFP ports and four RJ45 ports. |
