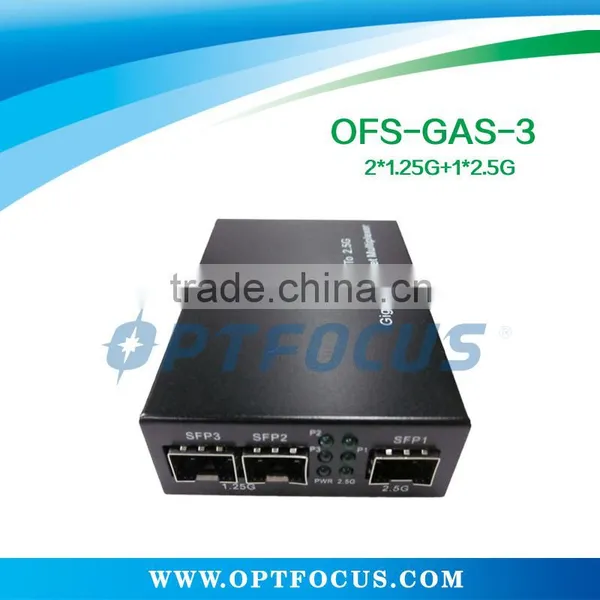

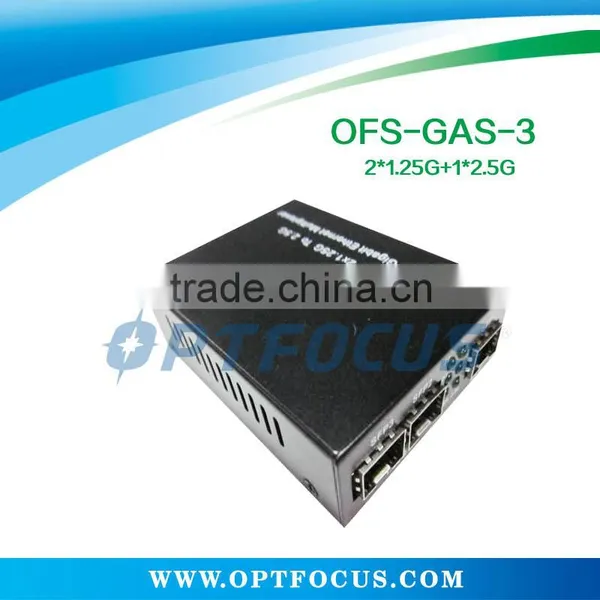

         2×1.25G to 2.5G Gigabit Ethernet Multiplexer

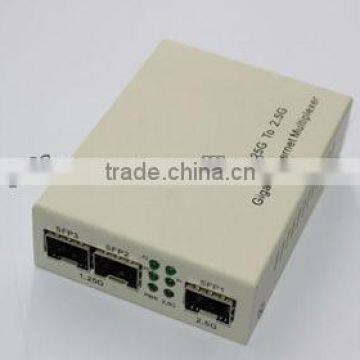

The  Gigabit Ethernet Multiplexer aggregates 2 port Gigabit Ethernet into 1 port 2.5G uplink, reducing the conversion CAPEX and increasing the fiber utilization effectively. The multiplexer can be used either in point-to-point topology fuctioning as a media converter for transporting two Gigabit Ethernet services over one fiber or in CWDM system working as a wavelength converter for extending the system’s transmits- sion capacity doubly. The multiplexer is equipped with three SFP-based ports: SFP1 is 2.5G uplink port, SFP2 and SFP3 are Gigabit Ethernet service ports.The multiplexer must be used in couples

Main Features

Attach one 2.5G SFP module to SFP1 Cage on the Multiplexer. Attach two 1.25G SFP modules to SFP2 and SFP3 Cage on the Multiplexer.

Link fiber from the SFP1 on one Multiplexer with SFP1 on another Multiplexer. It can link through CWDM system.

Link fiber from the SFP2 and SFP3 on the Multiplexer to Gigabit Ethernet Service.

 Note: SFP2 on one Multiplexer link pass only with SFP2 on another Multiplexer. SFP3 on one Multiplexer link pass only with SFP3 on another Multiplexer.

Connect the power cord to the Multiplexer and check that the Power LED lights up. The Px  LEDs will light when all the cable connections satisfactory.

Technical Specifications

Standerds: IEEE 802.3AB 1000Base-T

1000Base-SX/LX/LH

Fiber Cable:

Molti-mode: 50/125,62.5/125µm

Single-mode: 9/125µm.

Data Transfer Rate:2.5Gbps for SFP1, 1Gbps for SFP2 and SFP3.

LED Indicators:

Power, P1 2.5G, P1 Link/Act, P2 Link/Act,P3 Link/Act,

Power Requirement: 220V(110-245V)AC,50Hz

Ambient Temperature:0 ~ 50°C

Humidity: 5% ~ 90%

Dimensions: 26×70×93mm(H×W×D)

Typical Application

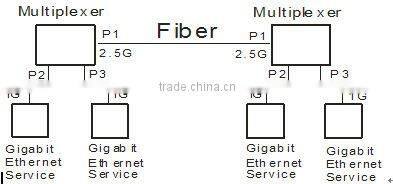

Application 1

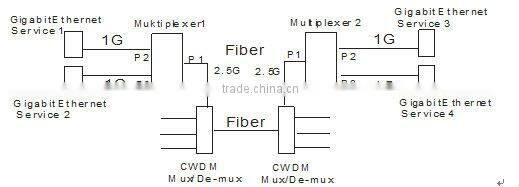

Application 2
