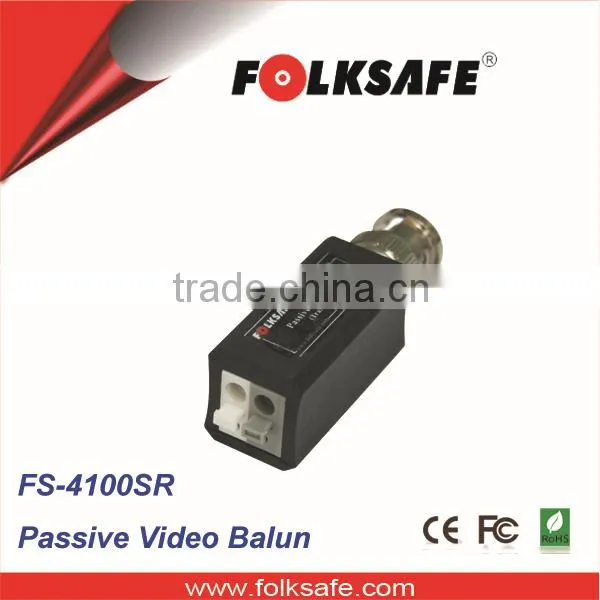

Folksafe cctv accessories manufacturer, passive video balun, FS-4100SR
•Full-motion color video signal up to 1312ft(400m) and
monochrome (B&W) up to1968ft(600m) via UTP cat5e/6
•NTSC, PAL & SECAM video format compatible
•Real-time transmission
•No power required
•Reliable screwless UTP terminal block
•Tool-less installation within less than 1 minute
•Male BNC connector
•Exceptional interference rejection
•Built-in TVS(Transient Voltage Suppressors) for surge protection
•Lightning protection design Grade:Ⅲ
•50 dB crosstalk and noise immunity
•Compact size and easy installation
•ABS engineering plastic housing
The FS-4100SR video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective
Unshielded Twisted Paired(UTP) cable. Baseband (composite) signals of any type are supported.
Male BNC of FS-4100SR allows connection directly to the camera or DVR. Screwless terminal block allows tool-less connection of UTP cable output.

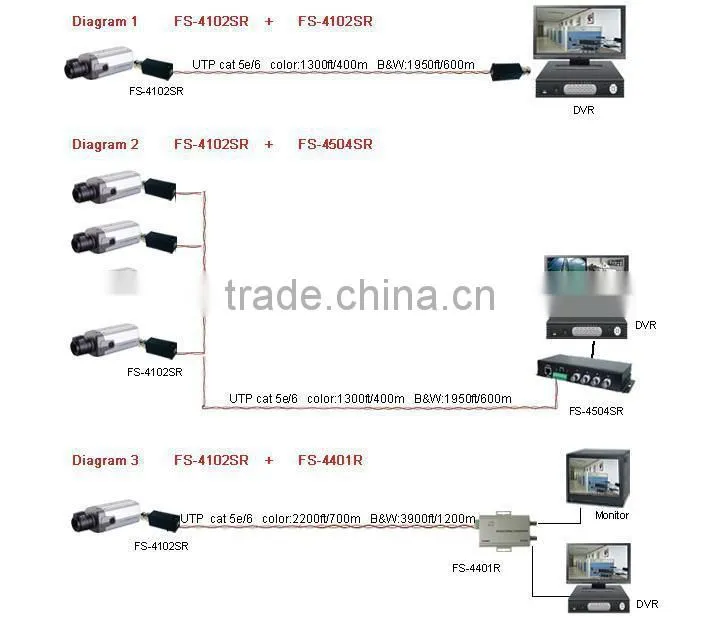

Used in pairs, FS-4100SR eliminates costly and bulky coaxial cable, allowing live CCTV color video signal up to 1312ft/400m. FS-4100SR is also compatible
with all the other FOLKSAFE passive transceiver for application at distance up to 1312ft/400m and active receiver up to 2200ft/700m.
The superial interference rejection and low emissions of the FS-4100SR allow video signals to coexist in the same wire bundle as telephone, datacom,
or low-voltage power circuits. This allows the use of a shared or existing cable plant. The FS-4100SR has built-in surge suppression to protect video equipment
against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
Product Name |
Single Channel Passive Video Transceiver ( FS-4100SR ) |
||
Applied Devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
||
Video |
Video Format |
PAL, NTSC, SECAM |
|
|
Operating Frequency |
DC to 5MHz |
|
|
Max Distance |
UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m) |
|
|
Common-mode/Differential-mode rejection |
15 KHz to 5 MHz 60 dB typ |
|
|
Impedance |
Coax, Male BNC 75Ω unbalanced |
|
|
|
UTP, two push-pins terminal block 100Ω balanced |
|
|
Attenuation |
1.5 dB typ Max |
|
Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
|
|
Category Type |
2 or better |
|
|
Impedance |
100 ± 20 ohms |
|
|
DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
|
|
Differential Capacitance |
19 pF/ft max (62 pF/m max) |
|
Power |
No external power required |
||
Connector |
Video input/output |
Male BNC connector |
|
|
Video input/output |
Screwless terminal block |
|
Protection |
Surge Protection |
renewable solid state surge protection |
|
|
Video Input |
2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
|
Video Output |
2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
|
Mechanical
|
Housing |
ABS engineering plastic |
|
|
Body Color |
Black |
|
|
Dimensions(L*W*H) |
35.1*16.7*18.7mm (BNC connector excluded) |
|
|
Net Weight |
20g |
|
|
Environmental
|
Operating Temperature |
-20º ~ 70º C |
|
|
Relative Humidity |
0~95% (non-condensing) |
|
|
Storage Temperature |
-40º ~ 150º C |
|
FOLKSAFE has more than 10 years' experience in manufacturing and marketing of transmission products. All our products are certified with CE,FCC & RoHS.
