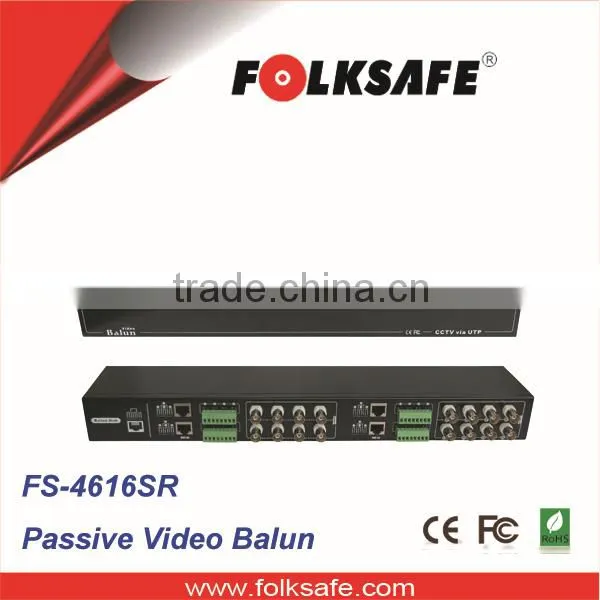

surveillance video systems, Folksafe 16-ch passive video balun, FS-4616SR
• Full-motion color video signal up to 1300ft(400m) and
monochrome (B&W) up to1950ft(600m) via UTP cat5e/6
•NTSC, PAL & SECAM video format compatible
•Real-time transmission
•No power required
•RJ45 and detachable terminal blocks for UTP cat5e/6
•Female BNC connector
•Exceptional interference rejection
•Built-in TVS(Transient Voltage Suppressors) for surge protection
•Lightning protection design Grade:Ⅲ
•50 dB crosstalk and noise immunity
•Compact size and easy installation
•Rack, wall mountable and desk installation with 4 rubber feet
•Black galvanized housing
The FS-4616SR video balun hub is a passive (non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective
Unshielded Twisted Paired(UTP) cable. Baseband (composite) signals of any type are supported.

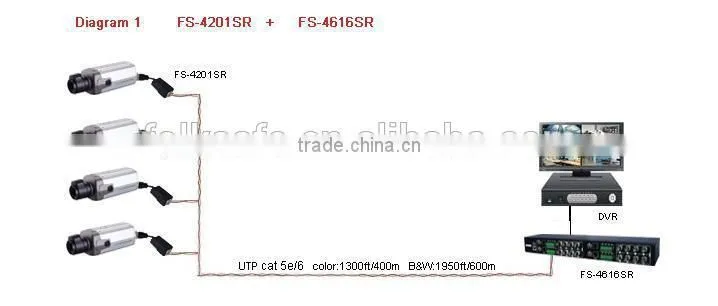

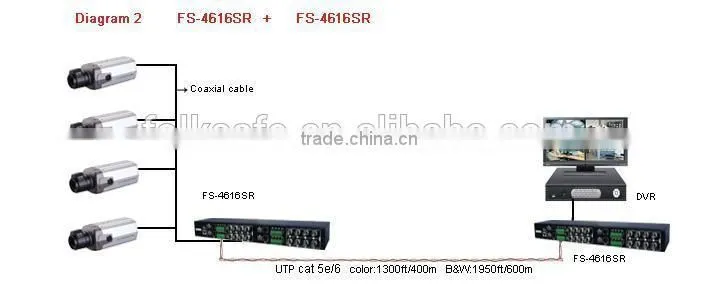

The FS-4616SR supports pluggable screw terminal or RJ45 connections. Used in pairs, it is capable to transmit 16 channel live CCTV color video signal
from camera end and receive 16 channel video signal at DVR end via 4 UTP cable at distance up to 1300ft(400m). FS-4616SR is compatible with all the
other FOLKSAFE passive transceiver for application at distance up to 1300ft(400m) and active receiver up to 2200ft(700m)
The superial interference rejection and low emissions of the FS-4616SR allow video signals to coexist in the same wire bundle as telephone, datacom,
or low-voltage power circuits. This allows the use of a shared or existing cable plant. It has built-in surge suppression to protect video equipment against
damaging voltage spikes and provide noise immunity to ensure quality signals without disturbing "hum-bars".
p;and noise immunity
•Compact size and easy installation
•Rack, wall mountable and desk installation with 4 rubber feet
•Black galvanized housing
Model |
FS-4616SR |
|
Product Name |
16 Channel Passive Video Transceiver Hub |
|
Applied Devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
|
Video |
Video Format |
PAL, NTSC, SECAM |
Operating Frequency |
DC to 5MHz |
|
Max Distance |
UTP Category 5e (24AWG) Color: 1300ft(400m) B&W: 1950ft(600m) |
|
Common-mode/Differential-mode rejection |
15 KHz to 5 MHz 60 dB typ |
|
Impedance |
Coax, female BNC 75Ω unbalanced |
|
UTP, screw terminal block or RJ45 100Ω balanced | ||
Attenuation |
1.5 dB typ Max |
|
Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
Category Type |
2 or better |
|
Impedance |
100 ± 20 ohms |
|
DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
|
Differential Capacitance |
19 pF/ft max (62 pF/m max) |
|
Power |
No external power required |
|
Connector |
Video input/output |
Female BNC connector |
Video output/input |
pluggable screw terminal block and RJ45 for UTP ( select one connection) |
|
Protection |
Surge Protection |
renewable solid state surge protection |
Antistatic |
YES |
|
Video Input |
2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
Video Output |
2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
|
Mechanical
|
Dimensions(L*W*H) |
BNC connector & mounting bracket excluded |
430*85*44.5mm | ||
Housing |
Galvanized |
|
Body Color |
Black |
|
Net Weight |
1250g |
|
|
Environmental
|
Operating Temperature |
-20º ~ 70º C |
Relative Humidity |
0~95% (non-condensing) |
|
Storage Temperature |
-40º ~ 150º C |
|
FOLKSAFE has more than 10 years' experience in manufacturing and marketing of transmission products. All our products are certified with CE,FCC & RoHS.
