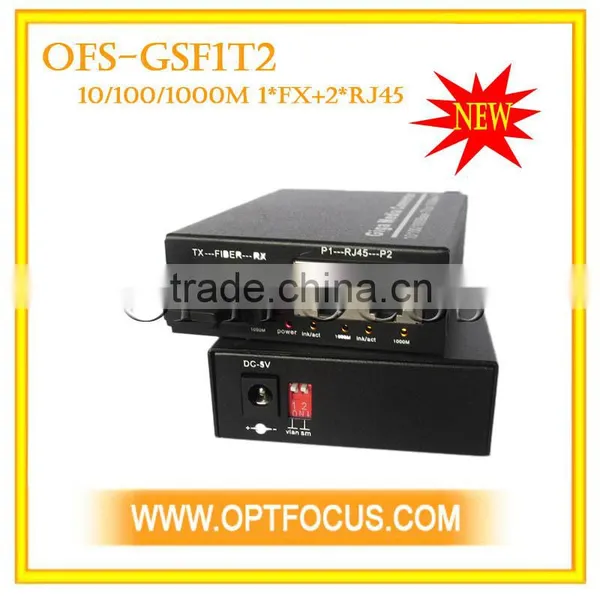

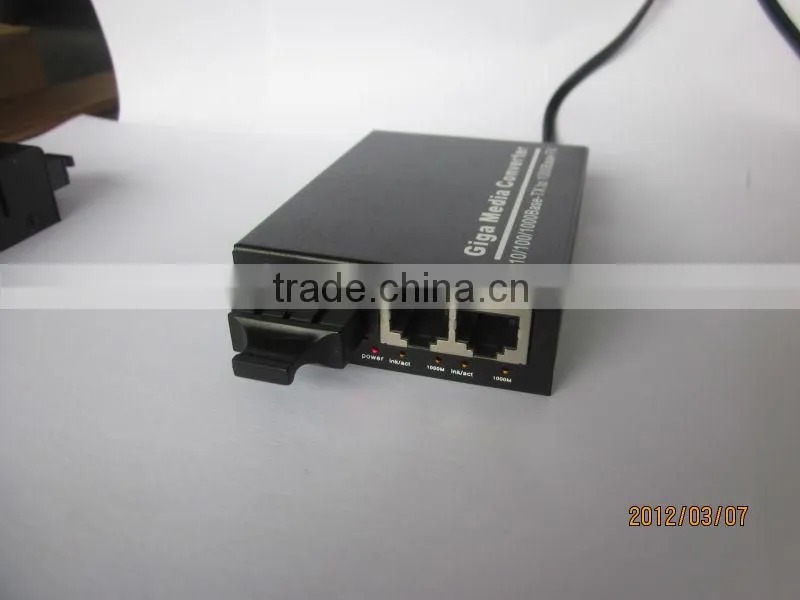

OFS-GSF1T2 3 port Gigabit Ethernet Switch with two 10/100/1000M UTP ports and two 1000M SFP sockets. The end users can use different SFP module according to his requirement, for example: 1000Base-T, 1000Base-SX, 1000Base-LX etc. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.
Main features
Two RJ45 ports and One Fiber port ,It can convert Optical-Electric Ethernet signals between 10/100/1000M UTP ports and 1000M optical fiber ports and switch Ethernet signals between port and port.
Auto negotiation function supports UTP ports to auto 10/100/1000M and Full Duplex/Half Duplex.
Broadcast storm protection
Supports VLAN and QoS
Supports the max 1536 bytes frame
Small power consumption (3W), low heat, good stability
Technical Specifications
Operating standards: IEEE802.3z/AB, 10/100/1000Base-T and 1000Base-SX/LX
MAC address:1K
Frame buffer memory: 512Kb RAM .
Bandwidth: 12 G, can be transmitted to achieve non-blocking wire-speed
Cable: UTP cable: Cat. 5 (the max distance up to 100m)
multimode Fiber: 50/125, 62.5/125μm(the max distance up to 224/550m)
singlemode Fiber: 8/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
Flow control: Full Duplex: IEEE802.3x flow control
Half Duplex: bake pressure flow control
Power: AC110-240V;
Environment temperature:0 ~ +50°C
Storage temperature:-20 ~ +70°C
Humidity:5% ~ 90%
Dimensions
:Power external: 26 (high) x 70 (width) x 94 (length) mm
Power internal : 27 (high) x 85 (width) x 135 (length) mm
Type |
Connector |
Fiber type |
Max. distance |
Wavelength |
TX power |
Sensitivity |
Link Budget |
OFS-GSF1T2 |
multimode |
SC/ST |
550m |
850/1310nm |
-20~-12dBm |
-18dBm |
7dBm |
OFS-GSF1T2-20 |
singlemode |
SC |
20km |
1310nm |
-11~-5dBm |
-23dBm |
11dBm |
OFS-GWSF1T2-20 |
Singlemode Singlefiber |
SC |
20km |
1310/1550nm |
-14~-8dBm |
-21dBm |
12dBm |
Order Information
Model |
Product description |
OFS-GSF1T2-2 |
Three ports Gigabit Ethernet Switch with two 10/100/1000M RJ45 ports and one 1000M Multimode Fiber port distance 0~550M |
OFS-GSF1T2-xx |
Three ports Gigabit Ethernet Switch with two 10/100/1000M RJ45 ports and one 1000M Singlemode Fiber port distance 0~100KM |
OFS-GWSF1T2-X |
Three ports Gigabit Ethernet Switch with two 10/100/1000M RJ45 ports and one 1000M Singlemode Singlefiber Fiber port distance 0~100KM |
