1000M Dual fiber multimode 550M PSE media converter

FOB Price

Negotiable / Piece

5 Pieces(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	OPTFOCUS
Model Number	OFS-DM-2-PSE

Product Description

1000M 1 ports FX to 1 port 10/100 TX POE media converter

More than a Fiber Media Converter and also can be a Power over Ethernet Injector as well.The best data link and power sourcing solution for long reach network equipment.

This OFS-GXXX-PSE series Media Converter are 10/100/1000Base T/TX to 1000Base FX Power over Ethernet(PoE) devices that serve as Power Sourcing Equipment(PSE).which allows the converter to provide power to IEEE802.3af PoE standard-compliant Powered Devices(PDs) using the twisted pair connection. Power transmitted along with data in one single cable(RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such as Wifi Aps. IP Cameras or IP Phones.etc.

Feature:

With PoE supported to save power infrascture cost

IEEE 802.3af/at Poe PSE(Power Source Equipment) Compatible

Connect to PoE switches.mid-span hubs.or otcher 802.3af Power Source Equipment(PSE).

Support Full-Duplex and Auto-Negotiation Mode for Fiber Port.

Stand alone unit with mini design.

Specification:

Standard	IEEE802.3i 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE802.3z 1000BASE-TX
	IEEE802.3x Flow Control
	IEEE802.3af Power over Ethernet
PoE power	15.4W per port (IEEE802.3af)
	Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-)
	Cable:UTP cat.5 or higher
Fiber type	Multi mode(MM): 62.5/125m.50/125m
Fiber type	Single mode(SM): 9/125m
Distance	Multi mode & Dual Fiber 550M
Distance	Single mode & Single Fiber:20/40/60/80/120KM
Data rate	10/100/1000Mpbs
Connector	RJ45,SC,FC
Wavelength	1310nm 1490nm 1550nm
Diagnostic LED	Power Link/Activity
Power	DC48V 1.25A
Power Consumption	<3w
Temperature	0~50°C(Operating)-20~70°C(Storag)
Humidity	10~90% non-codensing
Dimension	90x70x26

Ordering information:

OFS-DM-2-PSE	10/100/1000M Ethernet Dual Fiber Switch with 1 UTP ports and 1 multimode fiber port, 850 or 1310nm of optical wavelength, the max distance of fiber up to 550m.supported 15.4W PSE.
OFS-DSXX-PSE	10/100/1000M Ethernet Dual Fiber Switch with 1 UTP ports and 1 singlemode fiber port, 1310 or 1550nm of optical wavelength, the max distance of fiber up to 20~120km.supported 15.4W PSE.

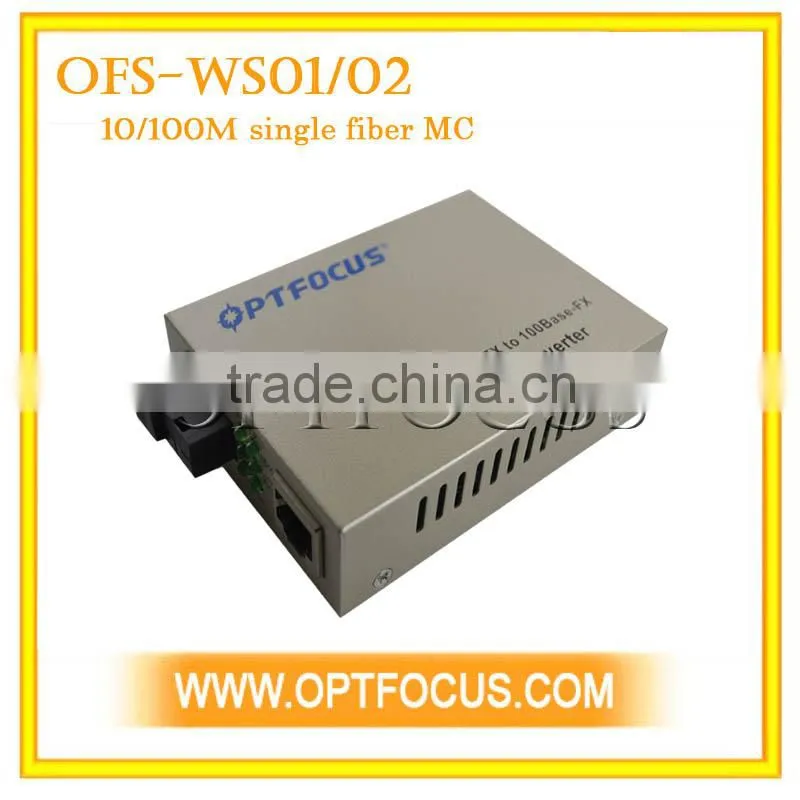

OFS-WS01/02-XX-PSE	10/100/1000M Ethernet Single Fiber Switch with 1 UTP ports and 1 singlemode fiber port, 1310/1550nm of optical wavelength, the max distance of fiber up to 20~120km.supported 15.4W PSE.
