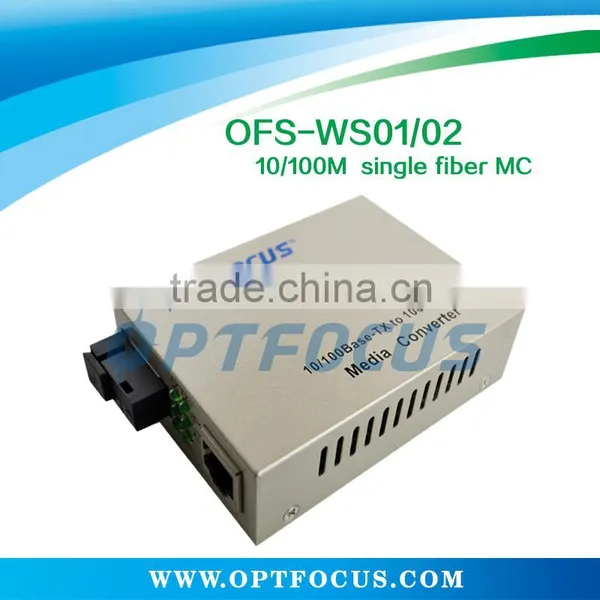

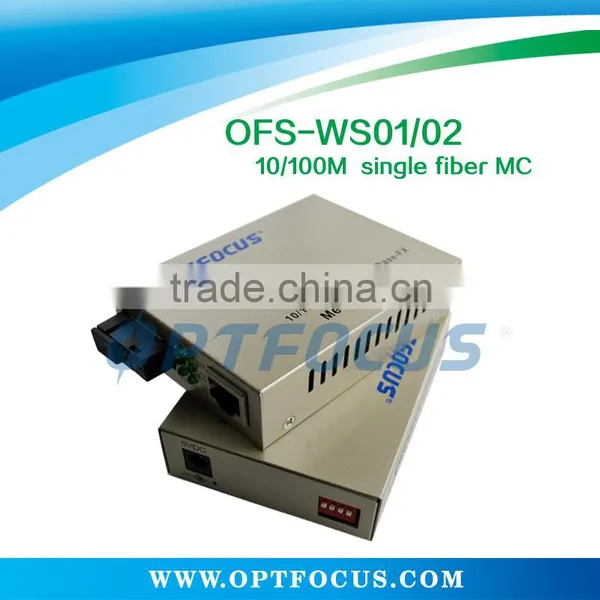

OFS Series 10/100M Ethernet Single Fiber Media Converter

The OFS-WS01/02  is Fast Ethernet Bridge 100Base-FX fiber to 10/100Base-TX shielded twisted pair (STP) converter. It supports selectable for half-duplex and full-duplex operations and supports a variety of fiber options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex, the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth. An override switch provides total manual control over the half/full-duplex operation, in fiber-optic interface. The fiber port of converter operates at 1310 nm and uses ST, SC, FC or WDM connectors. Multi-mode models that support distances up to 2 km and single-mode models that support distances up to 20/40/60/80 km are available.

The OFS-WS01/02 series are with LFP (Link Fault Pass Through function) (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. The DIP Switch provides disable or enable the LFP function.( LFP function is optional)

Main features

The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.

Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Standard

Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex

UTP port supports MDI / MDI-X auto crossover.

Supporting flow control

Supporting 1536 bytes packet

Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber

One Fiber-optic, 1310nm wavelength, connector-type and distance vary with model
- OFS-WS01-20: Tx-1310nm, Rx-1550nm
- OFS-WS02-20: Tx-1550nm, Rx-1310nm

Data Transfer Rate:
- TP: 10/100Mbps
- FX: 100Mbps

Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
- Full or half-duplex mode by DIP-switch (FX)

LED indicators: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act

Supports link fault pass through function.

Design of internal or external power supply for selection by end-users

Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

Application

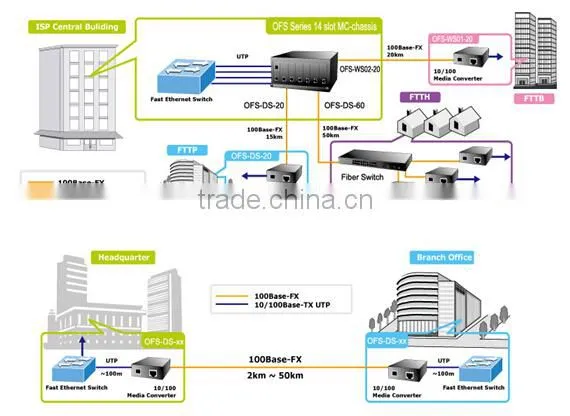

Standalone and Centralized Management Media Converter Installation
Affording the current network grows and expanding, the OFS-WS01/02 provide advanced Media conversion technology to fill this kind of demand. The OFS-WS01/02 series Media COnverter provide the diverse fiber connecting types of options to meet different network applications. It is very flexible for OFS-WS01/02 to work as a standalone device or install into the central Standard Media converter chassis for centralized power provide. The OFS-WS01/02 is ideal solution for building a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) and FTTB (Fiber to the Building) for ISPs, campuses and enterprises.

Technical Specifications

Operating standard:

IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX/FX Fast-Ethernet
IEEE802.3x

MAC address table:  1K

Data Buffer :128Kb RAM

Connector: UTP: RJ-45,10/100Mbps;  Fiber: SC,100Mbps

Cable:

UTP: Cat. 5 UTP (the max distance up to100m)

Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)

Flow control

Full Duplex:IEEE802.3x

Half Duplex:back pressure

LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.

Power :Input:AC 110~265V or DC:-36V~-72V

         Output:DC 5V 1A

Conversion mode: Medium conversion

MTBF: 80,000 hours

Ambient temperature:0 ~ +50℃

Storage temperature:-20 ~ +70℃

Humidity:5% ~ 95%

Dimensions:

Power external: 26 (high) x 70 (width) x 94 (length) mm

Power internal : 30 (high) x 110 (width) x 140 (length) mm

Weight

Power external: 0.3kg

Power internal: 0.6kg
