Steel Wire Armoured Power Cable
US$ 0.3 - 35.3
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Hengfei
Model Number:
YJV22,YJV32
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or according to your requirement
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Tape Armoured Power CableUS$ 0.3 - 35.3MOQ: 500 Meters -
PVC Insulated Armoured Power Cable SupplierUS$ 0.3 - 35.3MOQ: 500 Meters
-
XLPE Insulated Armoured Power Cable SupplierUS$ 0.3 - 35.3MOQ: 500 Meters
-
XLPE Insulated Aluminium Cable SWA/STA/AWA Armoured Power CableUS$ 0.3 - 35.3MOQ: 500 Meters
-
PVC Insulated Steel Wire Armoured Power CableUS$ 0.3 - 35.3MOQ: 500 Meters
Place of Origin
Hunan, China
Brand Name
Hengfei
Model Number
YJV22,YJV32
Conductor Material
Copper
Insulation Material
XLPE
Jacket
PVC
Number of Conductors
multi-core
Application
power station power plant
Specifications
1.Standard:IEC605022.Certificate:CQC, 3C
3.Strict QC
4.99.95% purity copper conductor
5.Free sample

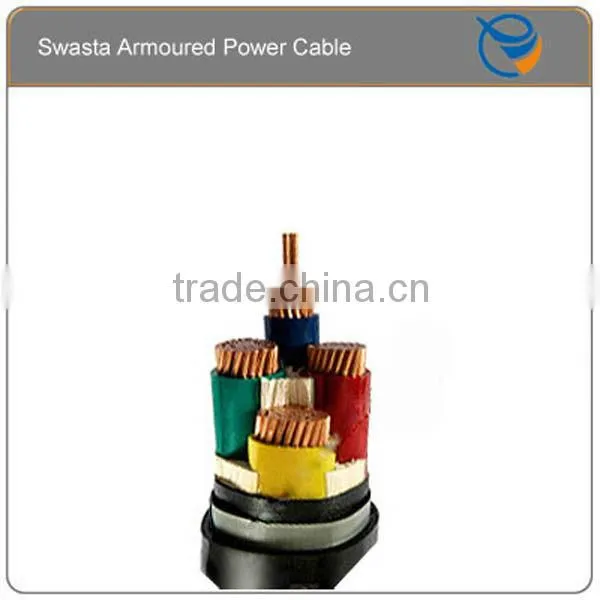

Steel Wire Armoured Power Cable
Application
It is used in power plant or power station ,it can be direct buried or in ground, it can bear external mechanical forces.
Construction
1.Conductor 2.Insulation 3.Inner sheath
4.Steel tape armoured 5.Steel wire armoured 6.Sheath
Technical data
Rated voltage 0.6/1KV,1.8/3KV, 3.6/6KV
Highest working temperature of conductor 90°C
Minimum bending radius 12D
Product description
| Type | Description | Application | |
| Cu | Al | ||
| YJV | YJLV | Copper-core(aluminum core)XLPE insulation and PVC sheath power cable | For laying indoor,in tunnels and in ducts,unable to bear external mechanical forces |
| YJY | YJLY | Copper-core(aluminum core)XLPE insulation and PE sheath power cable | |
| YJV22 | YJLV22 | Copper-core(aluminum core)XLPE insulation steel tape armoured PVC sheath power cable | For laying indoor,in tunnels and in ducts,can able to bear external mechanical forces |
| YJV23 | YJLV23 | Copper-core(aluminum core)XLPE insulation steel tape armoured PE sheath power cable | |
| YJV32 | YJLV32 | Copper-core(aluminum core)XLPE insulation steel wire armoured PVC sheath power cable | For laying in water or ground along route with large difference of level,can able to bear external mechanical forces |
| YJV33 | YJLV33 | Copper-core(aluminum core)XLPE insulation steel wire armoured PE sheath power cable | |
| YJV42 | YJLV42 | Copper-core(aluminum core)XLPE insulation thick wire armoured PVC sheath power cable | |
| YJV43 | YJLV43 | Copper-core(aluminum core)XLPE insulation thick wire armoured PE sheath power cable | |
