Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Solar Connector Cable With TUV
Solar Connector Cable With TUV
US$ 0.3 - 21.3
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Hengfei
Model Number:
PV1-F 1.5mm2-35mm2
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or according t your requirement
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TUV Approved Solar Connector Cable 1.5mm2US$ 0.3 - 21.3MOQ: 500 Meters -
High Quality Resistivity of Solar Connector CableUS$ 0.3 - 21.3MOQ: 500 Meters
-
Factory Price Solar Connector Cable 4mm2US$ 0.3 - 21.3MOQ: 500 Meters
-
Factory Price Solar Connector Cable 6mm2US$ 0.3 - 21.3MOQ: 500 Meters
-
Factory Price Solar Connector Cable 10mm2US$ 0.3 - 21.3MOQ: 500 Meters
Place of Origin
Hunan, China
Brand Name
Hengfei
Model Number
PV1-F 1.5mm2-35mm2
Type
Insulated
Application
Other, Photovoltaic system
Conductor Material
Other, Tinned copper
Conductor Type
Other, Stranded or solid
Insulation Material
Other, Low-smoke halogen-free flame retardant cross-linked polyolefin
Specifications

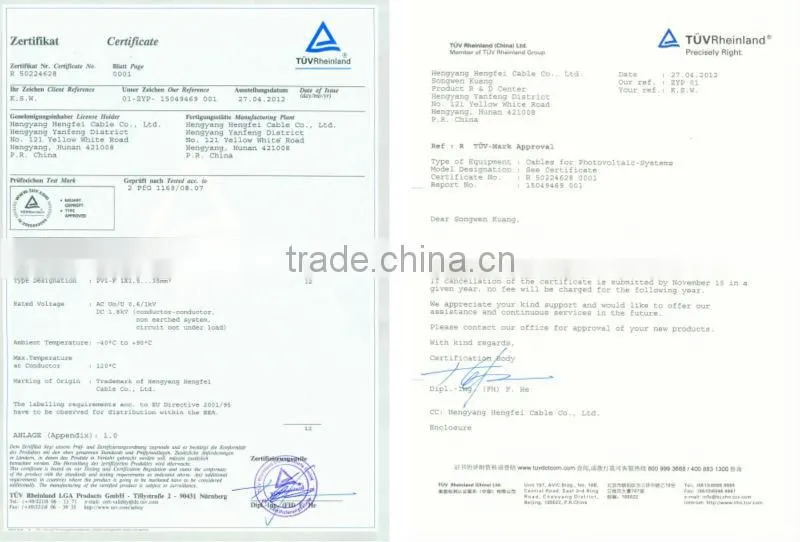

1.Standdard:TUV2 pfg 1169-20072.Certificate:TUV,CCC
3.Strict QC
4.99.95% purity copper conductor.
5.Free sample
Solar Connector Cable with TUV
Application
This product is suitable for class II under security level,the maximum allowed rated voltage 1.8kV (core to core,non-grounded system)direct voltage,used in Pvsystem DC side, can also be applied to PV system power frequency rated voltage 0.6/1kV AC voltage.In PV system, the solar energy is directly change into elecrticity, Cable resistant to UV, temperature ,and can be used as a separate connection to the solar batteries ,because cable has good climate resistance,cable can also be used outdoors, but not laying directly buried underground and underwater.
Technical data
Rated voltage below 1.8KV
Lowest working temperature -40 °C
Highest working temperature
Product Description
| Type | Description |
| PV1-F | Low-smoke halogen halogen-free flame retardant cross-linked polyolefin insulation and sheathed flexible cable for photovoltaic modules |
