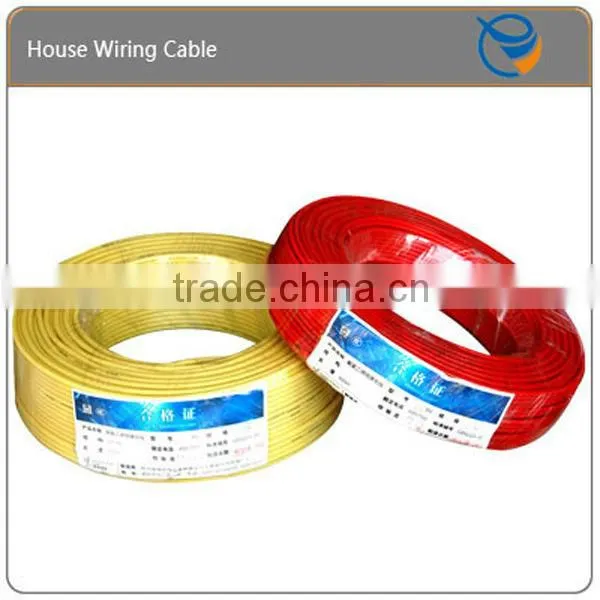

House Wiring Cable With High Quality Copper
US$ 0.15 - 25.9
MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Hengfei
Model Number:
BV,BV-90
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or according to your requirement
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Core House Electrical Cable WireUS$ 0.15 - 25.9MOQ: 100 Meters -
1.5mm2 to 25mm2 House Wiring Cable With High QualityUS$ 0.15 - 25.9MOQ: 100 Meters
-
PVC Insulated Copper Core Electric WireUS$ 0.12 - 25.9MOQ: 500 Meters
-
PVC Insulated Electric WireUS$ 0.12 - 25.9MOQ: 500 Meters
-
PVC Insulated Flat CableUS$ 0.12 - 25.9MOQ: 500 Meters
Place of Origin
China
Brand Name
Hengfei
Model Number
BV,BV-90
Type
Insulated
Application
Other, Building,housing
Conductor Material
Copper
Conductor Type
Other, Solid or Stranded
Insulation Material
PVC
Specifications
1.Standard:IEC602272.Certificate:CQC,3C
3.Strict QC
4. 99.95% purity copper conductor
5.Free sample
House wiring cable with high quality copper
Application
The product is applied to AC rated voltage 450/750V and below power plant laid(fixed)wiring. It's widely used in low voltage power lines,normal electrical equipment, instrumentation and telecommunication equipments.
Technical data
Rated voltage: 450/750V or 300/500V
The long term working temperature of conductor:norman is less than 70°C,heat-resistant is less than 90 0°C
Laying temperature:above 0°C
Minimum bending radius: not les than 6D
Product description
| Type | Description | Rated Voltage |
| 602271EC01(BV) | General purpose single-core hard conductor non-sheath cable | 450/720V |
| 602271EC05(BV) | Internal wifing conductor temperature 70oC single-core solid conductor non-sheath calbe | 300/500V |
| 6002271EC07(BV-90) | Internal wifing conductor temperature 90oC single-core solid conductor non-sheath calbe | 300/500V |
| 600271EC10(BVV) | Light-type PVC sheath cable | 300/500V |
| BLV | Aluminum core PVC insulation cable | 450/750V |
| BVR | Copper core PVC insulation flexible cable | 450/750V |
| BLVV | Aluminum core PVC insulation PVC sheath round cable | 300/500V |
| BVVB | Copper core PVC insulation PVC sheath flat cable | 300/500V |
| BLVVB | Aluminum core PVC insulation PVC sheath flat cable | 300/500V |
| 602271EC02(RV) | General purpose single-core flexible conductor non-sheath cable | 450/750V |
| 602271EC06(RV) | internal wiring conductor temperature 70oC flexible conductor non-sheath cable | 300/500V |
| 602271EC08(RV-90) | Internal wiring conductor temperature 90oC flexible conductor non-sheath cable | 300/500V |
| 602271EC52(RVV) | Light-type PVC sheath flexible cable | 300/300V |
| 6002271EC53(RVV) | Normal PVC sheath flexible wire | 300/500V |
| 602271EC56(RVV-90) | Conductor temperature 90oC of heat-resistance light-type PVC sheath flexible wire | 300/300V |
| RVVP | PVC insulation shield PVC sheath flexible cable | 300/300V |
| RVS | PVC insulation stranded connection flexible wire | 300/300V |
