PVC Sheathed Copper Wire Braided Shield Control Cable
US$ 0.3 - 35.3
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Hengfei
Model Number:
KVV ,KVVP2
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or according to your requirement
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PVC Flexible Control CableUS$ 0.32 - 35.3MOQ: 500 Meters -
Copper Conductor PVC Insulated and Sheathed Flexible Control CableUS$ 0.32 - 35.3MOQ: 500 Meters
-
450/750V PVC Insulated Flexible Control CableUS$ 0.32 - 35.3MOQ: 500 Meters
-
High Quality Flexible Control CableUS$ 0.32 - 35.3MOQ: 500 Meters
-
KVV Flexible Control CableUS$ 0.32 - 35.3MOQ: 500 Meters
Place of Origin
Hunan, China
Brand Name
Hengfei
Model Number
KVV ,KVVP2
Conductor Material
Copper
Insulation Material
PVC
Jacket
PVC
Number of Conductors
Single core or multi-core
Application
control wiring
Specifications
1.Standard:IEC600502.Certificate:CQC,3C
3.Strict QC
4.99.95% purity copper conductor
5.Free sample
PVC Sheathed Copper Wire Braided Shield Control Cable
Application
PVC Sheath Copper Wire Braided Shield Control Cable Used as an interconnecting cable in signal and control equipment – for measuring, control or regulation.

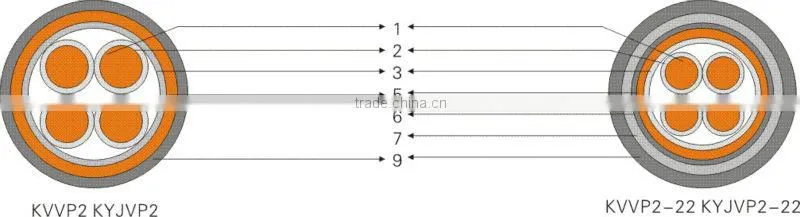

Construction
1.Conductor 2.Insulation 3.Rape 4.Braid shield 5.Copper tape shield
6.Inner sheath 7.Steel tape armoured 8Steel wire armoured 9.Over sheath
Technical data
Rated voltage 450/750V
Highest working temperature of conductor 70°C
Minimum bending radius 12D
Product description
| KVV | Copper conductor PVC insulation PVC sheath control cable |
| KVVP | Copper conductor PVC insulation copper wire braid shield PVC sheath control cable |
| KVVP2 | Copper conductor PVC insulation copper tape shield PVC sheath control cable |
| KVVP3 | Copper conductor PVC insulation Al-foil shield PVC sheath control cable |
| KVV22 | Copper conductor PVC insulation steel tape armouring PVC sheath control cable |
| KVVP2-22 | Copper conductor PVC insulation copper tape shield steel tape armouring PVC sheath control cable |
| KVV32 | Copper conductor PVC insulation steel wire armouring PVC sheath control cable |
| KVVR | Flexible copper conductor PVC insulation PVC sheath control cable |
| KVVRP | Flexible copper conductor PVC insulation copper wire braid shield PVC sheath control cable |
