Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Copper Conductor XLPE Insulated Branch Cable
US$ 0.4 - 68.9
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Hengfei
Model Number:
YFD-YJV
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or according to your requirement
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Copper Conductor PVC Insulated Branch CableUS$ 0.4 - 68.9MOQ: 500 Meters -
Aluminum Conductor PVC Insulated Branch CableUS$ 0.4 - 68.9MOQ: 500 Meters
-
Aluminum Conductor XLPE Insulated Branch CableUS$ 0.4 - 68.9MOQ: 500 Meters
-
Aluminum Conductor XLPE Insulated Prefabricated CableUS$ 0.4 - 68.9MOQ: 500 Meters
-
Aluminum Conductor PVC Insulated Prefabricated CableUS$ 0.4 - 68.9MOQ: 500 Meters
Place of Origin
Hunan, China
Brand Name
Hengfei
Model Number
YFD-YJV
Type
Insulated
Application
Overhead
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
Other, XLPE
Specifications
1.Standard:IEC605022.Certificate:CQC ,3C
3.Strict QC
4.Free sample
Copper Conductor XLPE Insulated Branch Cable
Application
This product is widely used in hospital,hotels,residential buildings,office buidings and other distribution systems,also used as lighting system for roads,bridges,tunnels etc .

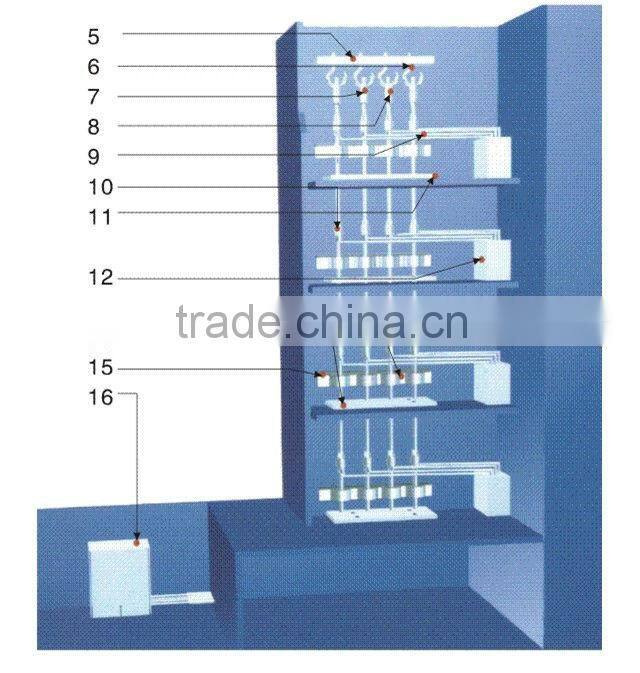

Construction

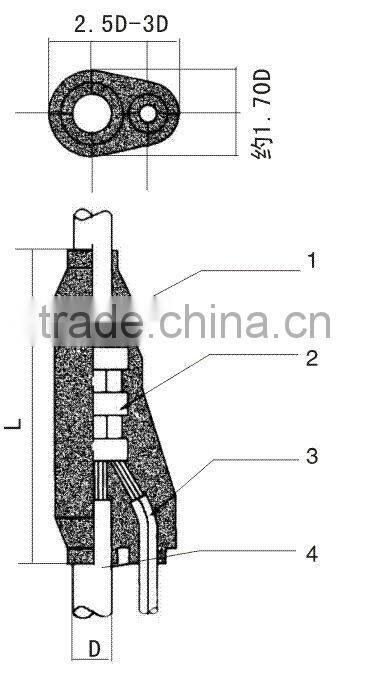

| 1-branch sheath | 9-extension cable |
| 2-joint | 10-trunk cable |
| 3-branch cable | 11-floor |
| 4-main cable | 12-floor distribution box |
5-cross arm | 13-wire clamp |
6-hanger | 14-holder |
7-hanging headers | 15-clapboard block |
| 8-branch joint | 16-power distribution cabinet |
Technical data
Rated voltage: 0.6/1KV
Highest working temperature of conductor: 90°C
Laying temperature: above 0°C
Minimum bending radius:15D
Product description
| Type | Descfiption |
| YFD-VV | Copper-core PVC insulation PVC sheath prefab branch power cable |
| YFD-ZR-VV | Copper-core PVC insulation PVC sheath flame retardant prefab branch power cable |
| YFD-NH-VV | Copper-core PVC insulation PVC sheath fire resistance prefab branch power cable |
| YFD-YJV | Copper-core XLPE insulation PVC sheath prefab branch power cable |
| YFD-ZR-YJV | Copper-coreXLPEinsulation PVC sheath flame retardant prefab branch power cable |
| YFD-NH-YJV | Copper-core XLPE insulation PVC sheath fire resistance prefab branch power cable |
| YFD-WDZA-YJY | XLPE insulation polyolefin sheath low-smoke no-halogen flame retardant A prefab branch power cable |
| YFD-WDZAN-YJY | XLPE insulation polyolefin sheath low-smoke no-halogen flame retardant A fire resistance prefab branch power cable |
