Smart Machine to Make Disposable Big Noodle Paper Bowls

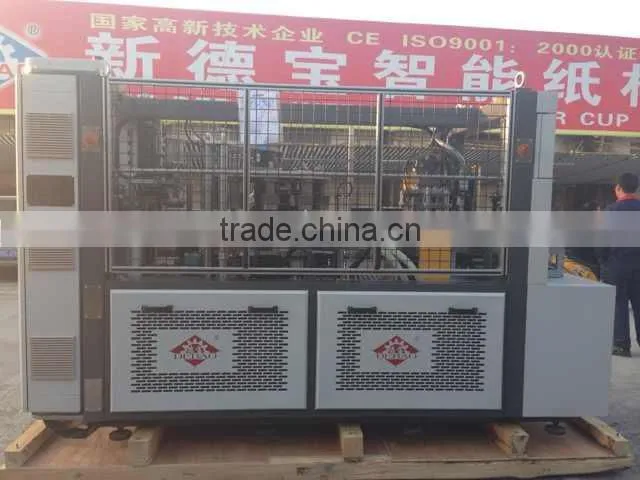

Smart Machine to Make Disposable Big Noodle Paper Bowls photo-1
US$ 56,000 - 58,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Cup Machine
Processing Type:
Other, paper cup machine
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Paper Cup Machine
Processing Type Other, paper cup machine
Place of Origin Zhejiang, China
Brand Name DEBAO
Model Number DB 1250S
Voltage 380V
Power(W) 18KW
Dimension(L*W*H) 3050*1500*2000mm
Weight 4200KG
Certification CE
Warranty 1YEAR
After-sales Service Provided Engineers available to service machinery overseas

Specifications

smart machine to make disposable 7oz coffee paper cups
cups high speed at 50-70 pcs/min

  Welcome To Ask For DEBAO-1250S

make noodle cup/bowl machine

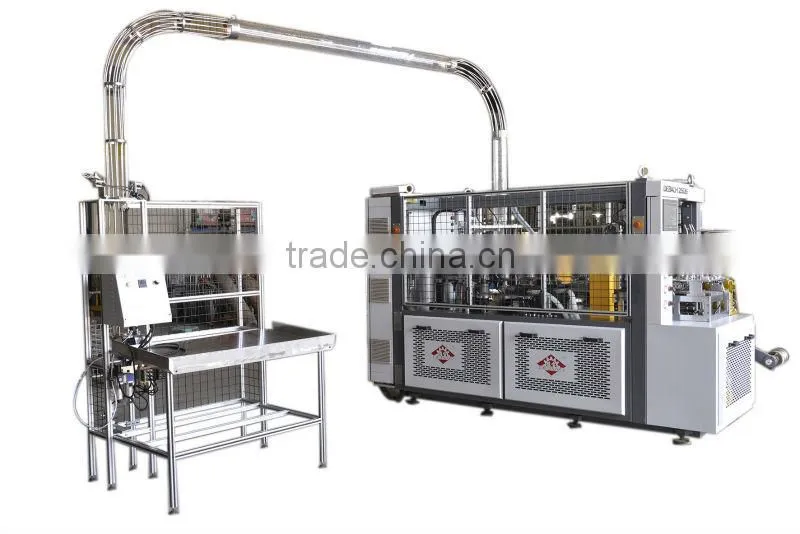

smart machine to make disposable big noodle paper bowls



smart machine to make disposable big noodle paper bowls


Product Description

 Main technical Parameter



 Model

DEBAO-1250S

 production capacity

50-70pcs/min

 Paper thickness

250-400gsm

 Paper cup specification

(A)90-150mm;(B)50-135mm;(C)60-115mm;(D)5-12mm

 Air soure request(double PE)

0.5-0.8Mpa

 Air consumption

0.3cube/min

 Power source

 three-phase 380V 50hz  18KW

 weight

4200kg

 overall dimensions

3.0×1.6×2.1m (machine), 1.3x0.6x2.1m(cup holder)

smart machine to make disposable big noodle paper bowls

Certificate:

 smart machine to make disposable big noodle paper bowls



Selling point:

1. It is designed with drum-type cam indexing and positioning, which offers high precision indexing and positioning as a result of its good inertia-resistance capability.

Longgitudinal axis gear drive, Cylindrical type barrel shape indexing cam.

 smart machine to make disposable big noodle paper bowls

2. The first curling use the internal expanding rotational molding, in favor of improving the paper forming intensity. Second curling use heat setting, the mouth of curling not only appear very nice, but also keep dimension stability.



3. Photoelectric failure-detecting system is available. PLC control system for the whole bowl forming process. Servo control to send bottom paper of bowl, deliver bottom when bowl body come, otherwise no bottom delivery.

smart machine to make disposable big noodle paper bowls



4. Switzerland Leister heating device is equipped on bowl body and bottom adhesion step .Bowl-bottoms are heated at first before they are fed, thus improving heating effect and helping guarantee knurling quality.



5. Machine use box type structure design, filling the oil by spray lubrication system, to make machine running fast


6. The only machine use cam and gear transmission, no any chain in China. Optional with detection system which auto-divide good and bad paper bowls.



Raw materials:



smart machine to make disposable big noodle paper bowls



paper rolls

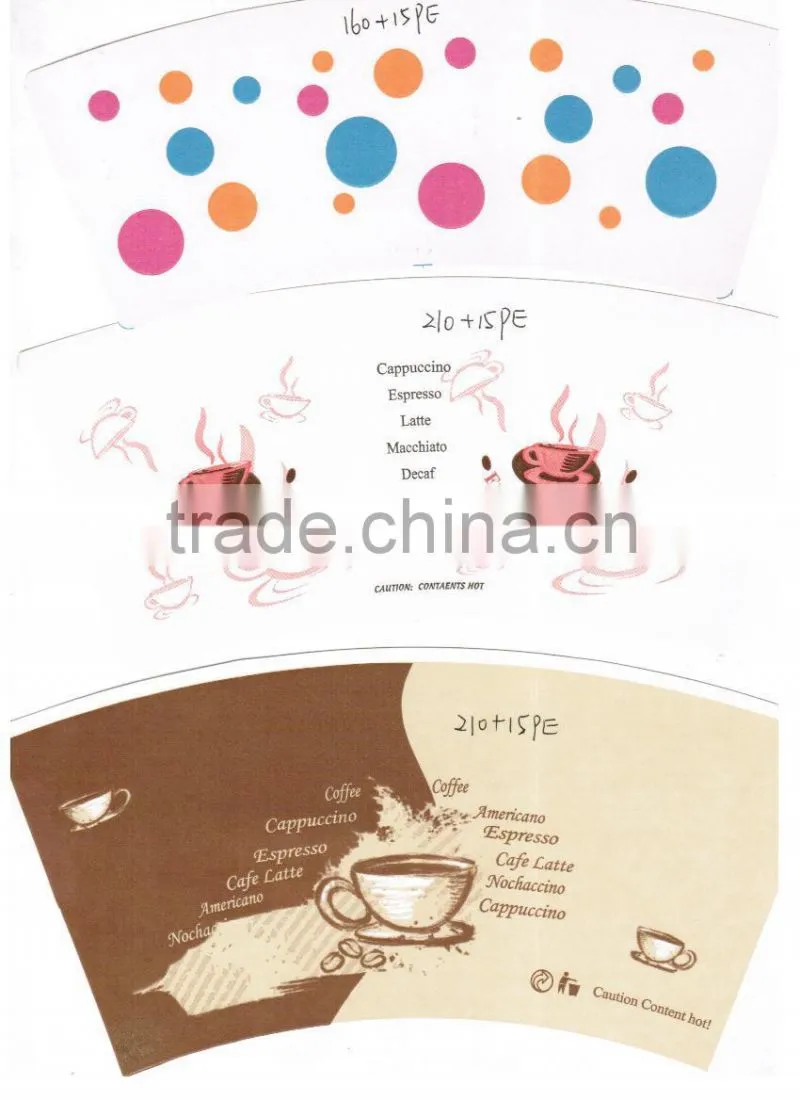

smart machine to make disposable big noodle paper bowls



paper fans/sheets

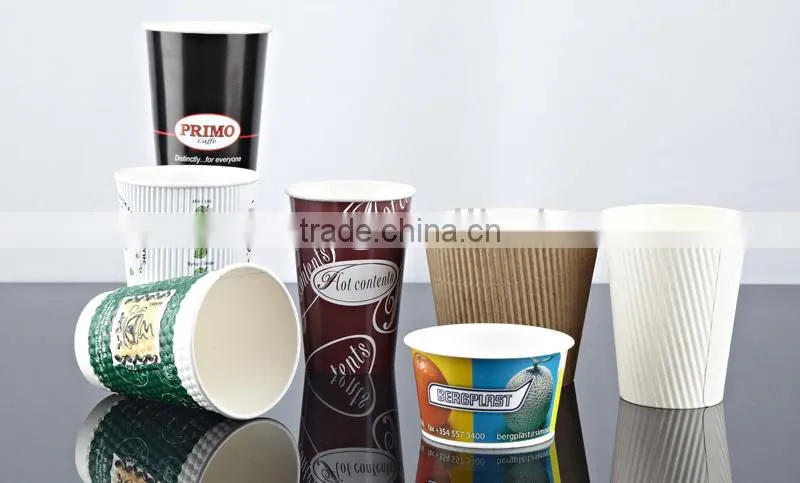

Bowl Samples:

smart machine to make disposable big noodle paper bowls






Packaging & Shipping



Packing&Container:

 smart machine to make disposable big noodle paper bowlssmart machine to make disposable big noodle paper bowls









 smart machine to make disposable big noodle paper bowls
