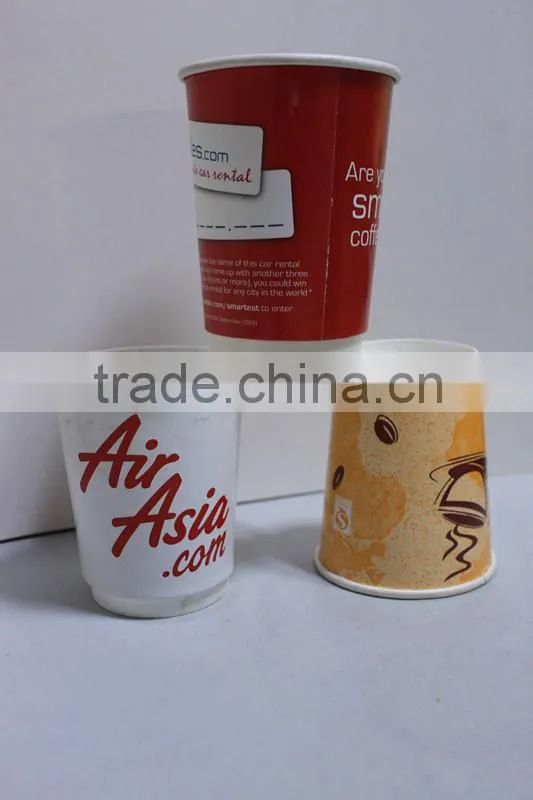

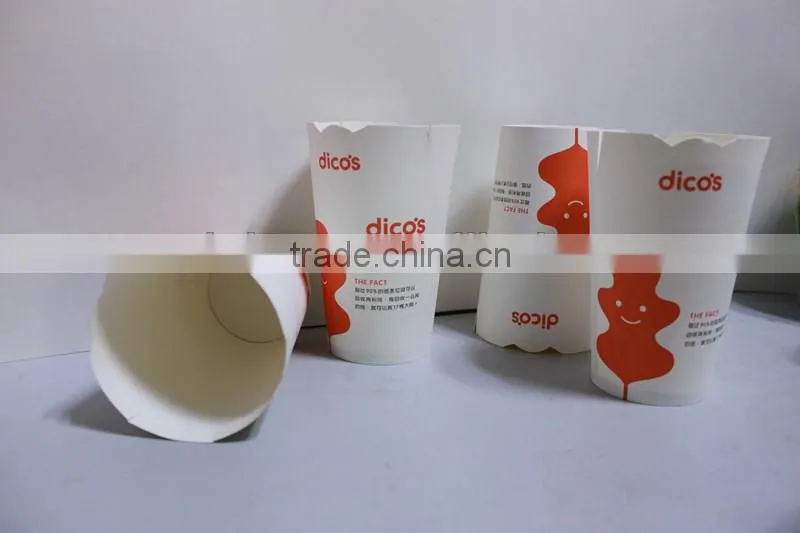

paper cup forming machine1.make 6oz-16oz paper cup
2.no chain,only gear for transmission
3. no need to spray water on paper

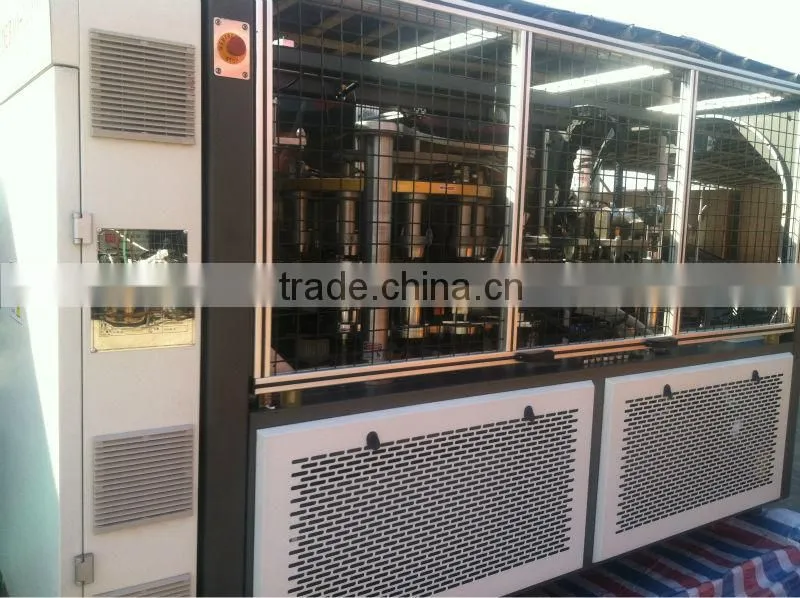

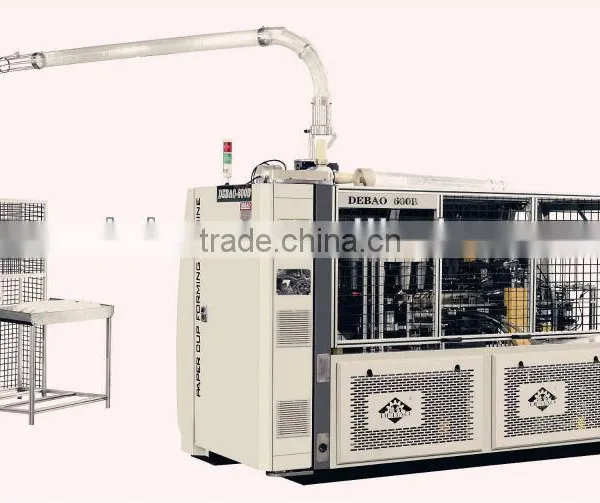

PAPER CUP MAKING MACHINE DEBAO-600S
1.Description:
DEBAO-600S series newly-designed paper cup forming machine optimizes its transmission system and enables each independent functional-system to operate smoothly. Thus we can greatly reduce machine-wear caused by machine's inertial movement.
By adopting photoelectric failure-detection system, our paper cup machine's reliable performance is guaranteed, thus offering a high speed and stable operation. This middle speed paper cup forming machine will auto-stop working when there is a failure. Thus it can greatly improve operation safety standard and help reduce labor force. It simplifies paper cup forming process. this machine can finish paper feeding, gluing, cup-bottom feeding, heating, knurling, cup-mouth curling, cup-collecting, etc. at one step. It is especially suitable for making paper cups with a height of 50-135mm
2.Technical parameters:
Model |
DEBAO-600S |
production capacity |
80-90pcs/min |
required paper |
230-400gsm |
|
container capacities
|
(A)top dia:¢70-100mm (B)height:70-135mm (C)bottom dia:¢40-75mm (D)knurling:5-12mm |
Air supply requirement |
0.5-0.8Mpa 0.4m3/min |
total power |
380V 50HZ 16KW |
weight |
4200kg |
overall dimensions(L*W*H) |
3.05m×1.55m×2.25m |
3.Advantages:
- It is designed with drum-type cam indexing and positioning, which offers high precision indexing and positioning as a result of its good inertia-resistance capability.
2.Self-lubrication for the machine's moving parts.
3.Photoelectric failure-detecting system is available.
4. Switzerland leister heating device is equipped. Cup-bottoms are heated at first before they are fed, thus improving heating effect and helping guarantee knurling quality.
