Specifications
3oz paper cup machine1.make 2.5oz-12oz paper cup
2.no chain,only gear for transmission
3. no need to spray water on paper
3oz paper cup machine
1.description

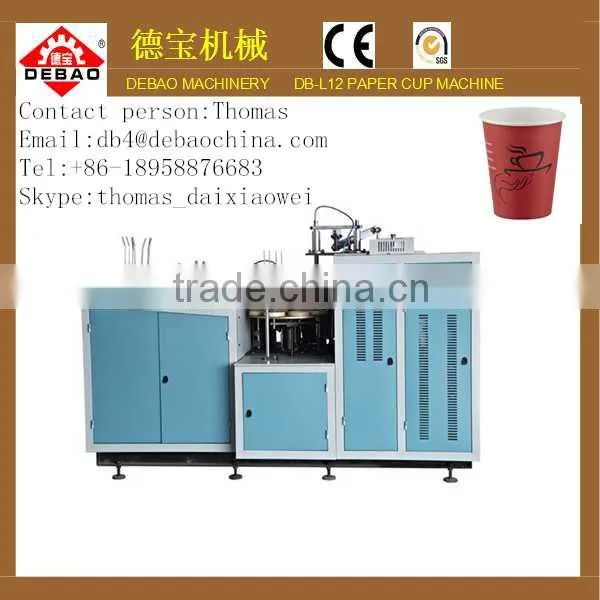

model DB-L12 paper cups machine price is very competitive, it is ideal equipment for making hot drinks cup , such as coffee cup ,tea cup , water cups etc .especially it is popular for making small coffee cup 3oz for algeria market
2.selling points
1).we use omron ,japan brand for transducer
2).three range of chains instead of two range chains running
3).we use gear running between the three turnplates running instead of chains.
4).we use the import beeline gear inside the machine
5). we use alu material for heaters , this material is more safer ,once the machine stop unormal , the cup inside can not burning , but most factory use iron pipe material , it is easy broken and once machine stop unormal, the cup inside will be burning

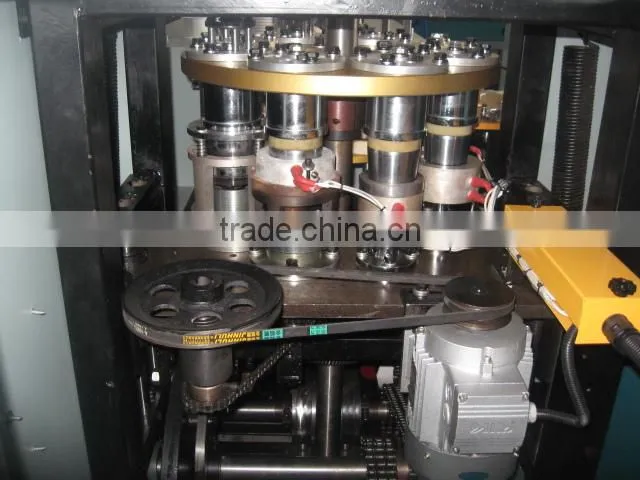

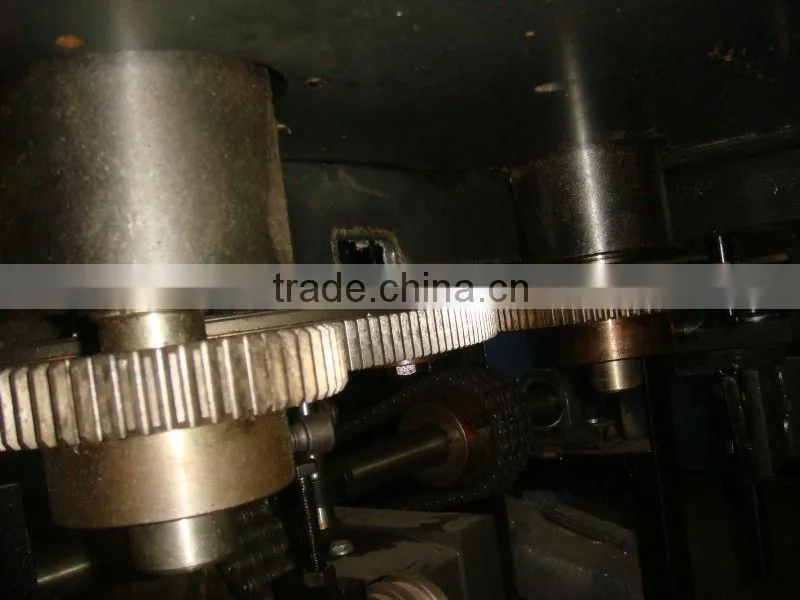

inside gear transmission
omron , japan transducer three range chains
3. main technical data
Production capacity: 45---55 pcs/ min
cup sizes : 2.5oz---12oz
paper required : single pe coated paper , paper weight 150gsm--250gsm.
Container capacities: a)top diameter: 50—90mm b)height:45---113mm
c)bottom diameter:35---64mm d) knurling:4.5---10mm
air supply requirement : DB-L12 no need air compression ,
total power: 220V ,50HZ,3.8 KW or 380V 50HZ 3.8 KW
Weight :1400kgs
Packing size: 2600X1180X1700 mm
4.certificates
5.cup samples photos
7. delivery time
30 days will be shippment , after get your deposit
