Specifications
DEBAO-600S paper cup machine supplier1.14 years experience
2.cam transmission,no any chain
3.CE ,SGS, ISO9001:2000
Paper cup forming machine production,DEBAO-600S paper cup machine manufacturer
Contact: Sunny
Tel:0086-15372836898
Skype:Stephanie 91337

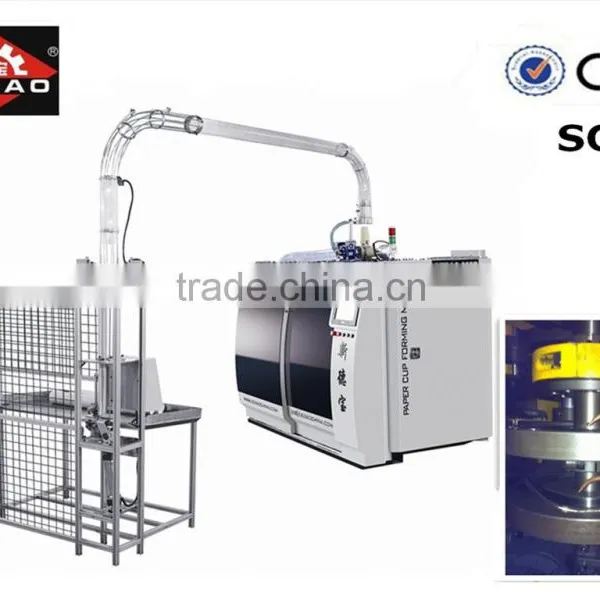

DEBAO-600S intelligent high speed paper cup forming machine is newly design,2013 latest machine,it adopts photoelectric failure-detection system, our paper cup machine's reliable performance is guaranteed, thus offering a high speed and stable operation. This middle speed paper cup forming machine will auto-stop working when there is a failure. Thus it can greatly improve operation safety standard and help reduce labor force. It simplifies paper cup forming process. this machine can finish paper feeding, gluing, cup-bottom feeding, heating, knurling, cup-mouth curling, cup-collecting, etc. at one step. It is especially suitable for making paper cups with a height of 50-135mm
1.Main Technical Parameter:
Model |
DEBAO-600S |
production capacity |
80-90pcs/min |
Paper thickness |
230-400gsm |
Paper cup specification |
(A)top diameter:70-95mm; (B)height:50-135mm; (C)bottom diameter:40-75mm;(D)bottom knurling:5-12mm |
Air soure request(double PE) |
0.5-0.8Mpa |
Air consumption |
0.4cube/min |
Power source |
three-phase 380V 18KW |
weight |
4000kg |
overall dimensions |
3.1×1.6×2.3m (machine), 1.3x0.6x2.1m(cup holder) |

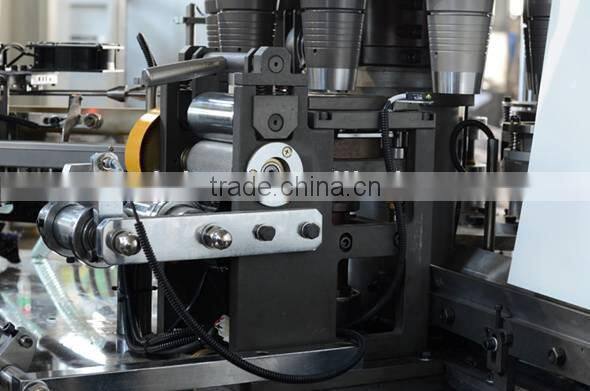

2.Produt & Workshop:
3.Customer always ask :
1.what’s your product range?

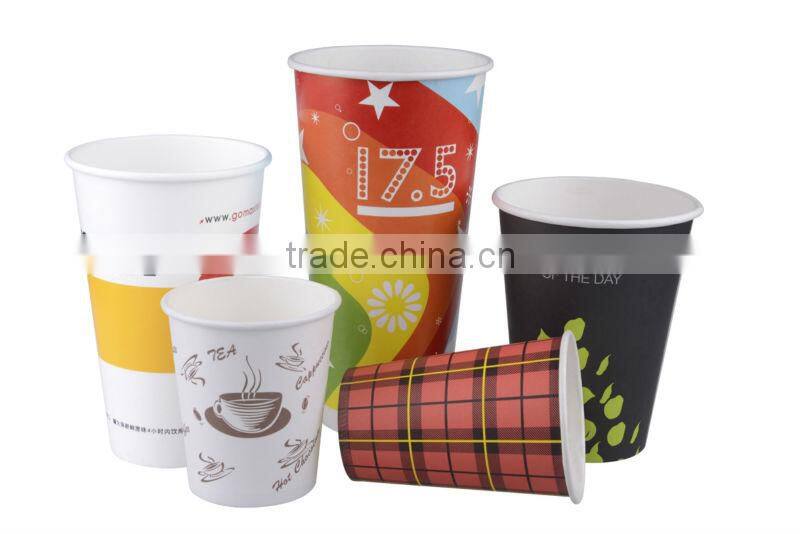

Tea cups,coffee cups,ice cream cups,noodle bowl, KFC bowl
2.What size can this machine make?
This machine DEBAO-600S can make paper cups from 8OZ-16OZ.
3.Are you a manufacturer?
Yes,We have been in making paper cup machine for 14 years since from 2001.We have our own workshop,
and 180 workers here.
4.Do you have stock product to sell?
No,All of our products are designed according to customer’s requirement.
5.What information should i let you know if i want to get a quotation?
--Quantity
--What’s the detailed size (top diameter,bottom diameter,and height)
--What’s the paper sickness
--It is used for hot drink or cold drink
6.What about the delivery time?
Usually 50 days,but will depend on your quantity and size.
7.what about the payment term ?
T/T or L/C
8.what’s your advantages ?
--14 years experience:We have been in making paper cup machine for 13 years since form 2001
--Customers all over the world

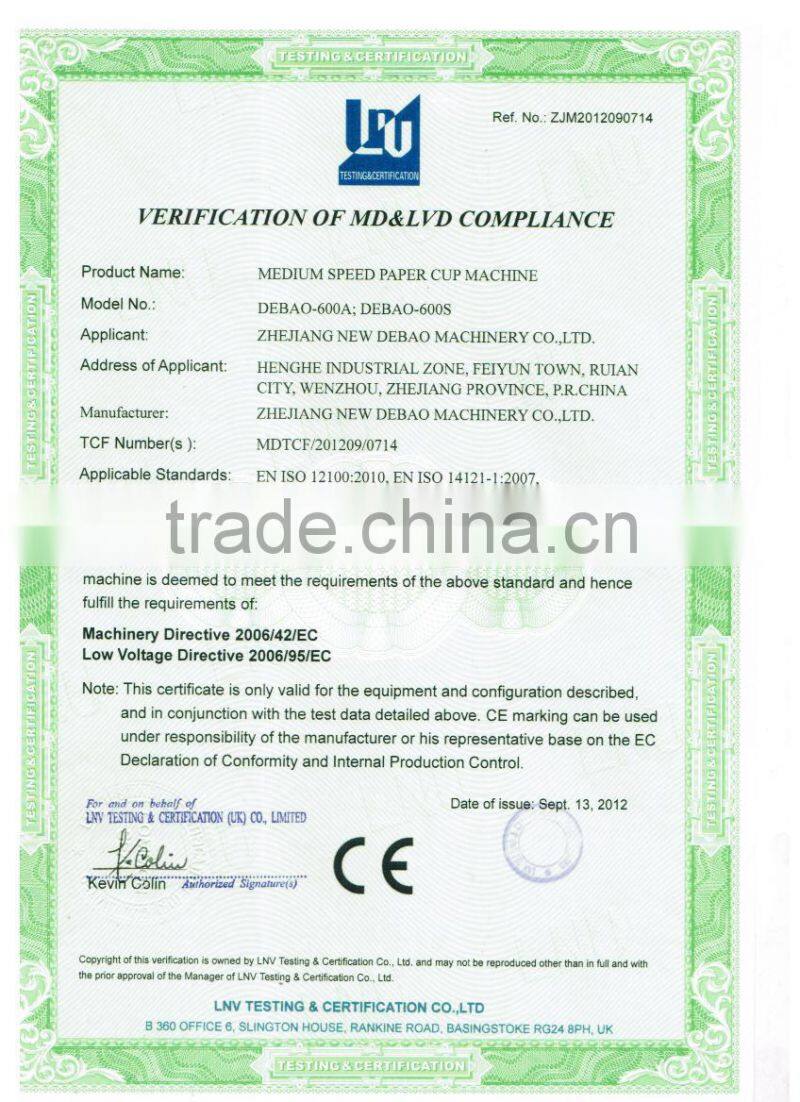

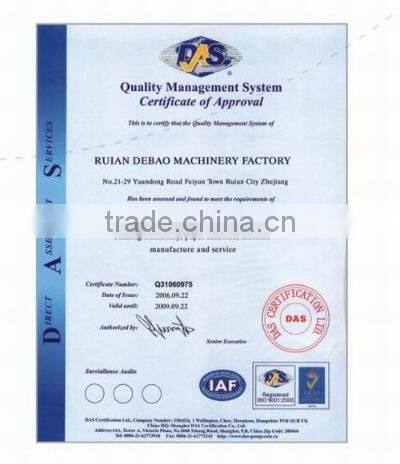

--Certificate: CE certificate ISO certificate SGS testing report
--Patent: cam transmission,no any chains.
--Fast reply:Our team will reply you soon within 8 hour working day.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
4.DEBAO-600S Selling points:

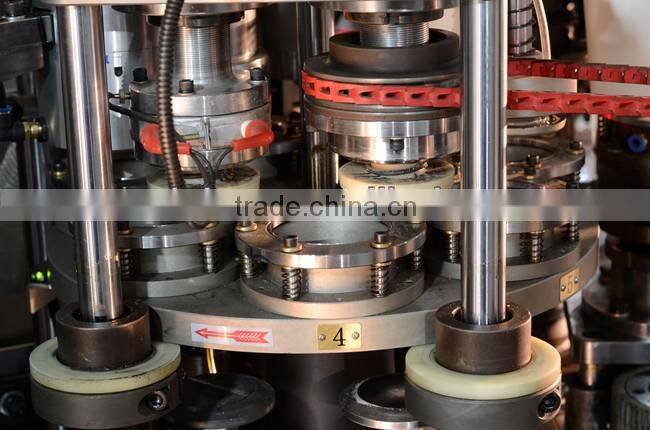

(1).Cam Transmission:
(2).Oil lubrication:
Whole machine is box type structures design,filling oil by spray lubrication system,that can reduce damage,
cooling effective,so that the machine can run fast.
(3).Photoelectric failure detect system is available,PLC control system for the whole cup forming process.
Servo control to send bottom paper of cup,deliver bottom when cup tube come,otherwise no bottom delivery
(4).Two steps for curling:
The first step use the internsl expand rotational molding,in faver of improving the paper forming intensity The second step curling use heat setting,the mouth of curling not only appear very nice,but also keep dimension stability.

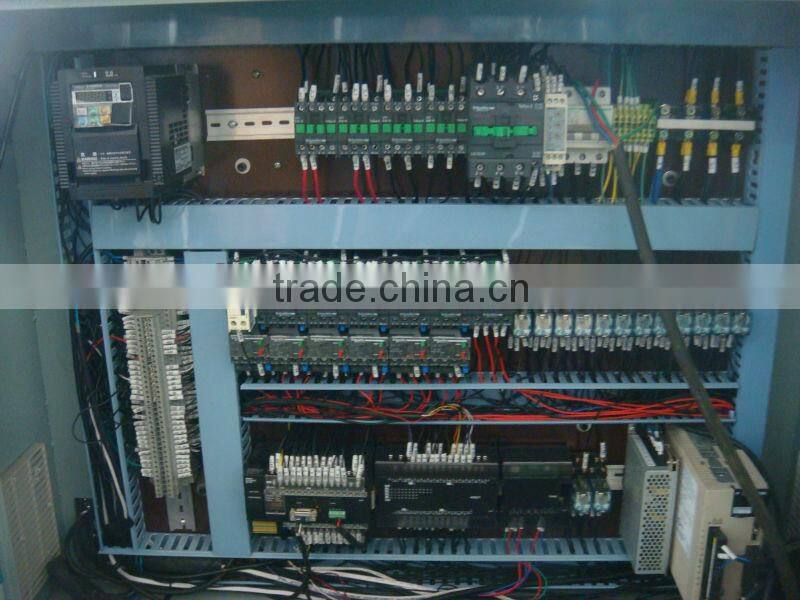

(5).Electrical parts :
We choose international famous brands,such as Japan-Omron,Japan-Yaskawa,France- Schneider,Swizerland- Leister,Taiwan-Airatac.The control system we use PLC programmable controller and touch scree interface.
5.Container and packaging:
Contact: Sunny
Tel:0086-15372836898
Skype:Stephanie 91337
