Specifications
14 years experience3-12OZ hot drink and cold drink
samples free
CE certification,SGS,ISO 9001:2000

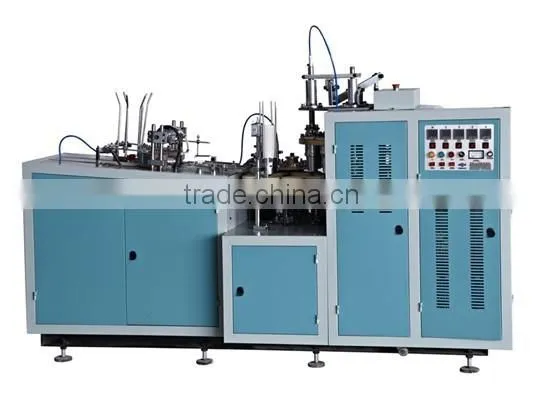

DB-L12 paper cup making machine
1.Description of the machine:
DB-L12 paper cup making machine is multistation automatic machine. It has continuous automatic procedures like feeding, sealing,
oil filling, washing, heating, knurling, convex knurling, curling, unloading, etc. It is ideal equipment for producing paper testing-drinking cups, market cups, advertising cups, etc. It is widely used for hot drink and some disposable cups.
2.Main Technical Parameter:
Model |
DB-L12 PAPER CUP MACHINE |
Cup size |
A: Top outside diameter: 50~90mm B: Height :45~115mm C: Bottom outside diameter:35~64mm D: Depth of Cup bottom: 4.5~12mm
|
Applicable Paper |
150-250gsm (one side PE coated paper) 150~380gsm (two side PE coated paper) |
Production speed |
45-55pcs/min |
Electrical requirement |
Without ultrasonic:3.8KW 380V 50Hz With ultrasonic: 8 KW 380V 50HZ |
Compressed air |
0.4m3/min ,Air source request (double PE): 0.4-0.6 Mpa |
Weight |
1300 KG |
Overall dimensions |
(L*W*H ) 2.55*1..26*1.7 M |
3.Certificate:

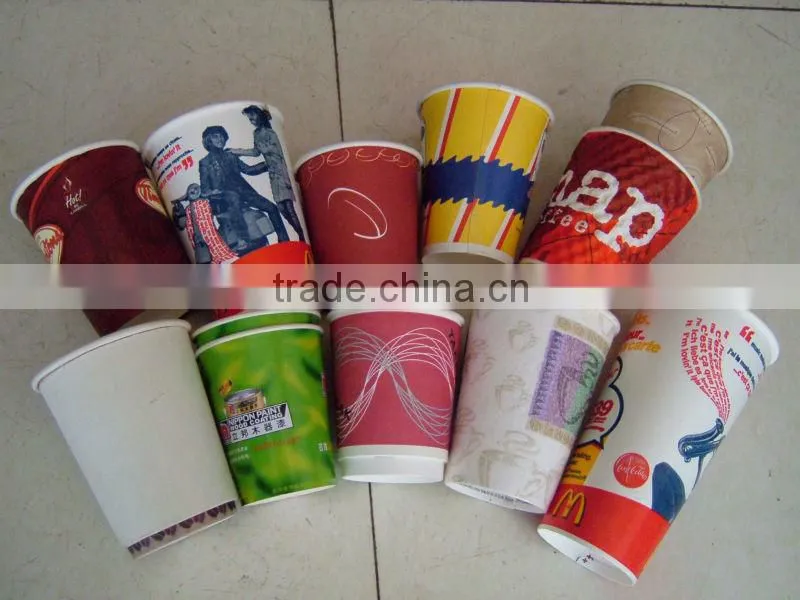

4.Our paper cup samples:
5.Customer always ask :
1.what’s your product range?
Tea cups,coffee cups,ice cream cups,noodle bowl, KFC bowl
2.What size can this machine make?
This machine DEBAO-600S can make paper cups from 8OZ-16OZ.
3.Are you a manufacturer?
Yes,We have been in making paper cup machine for 13 years since from 2001.We have our own workshop,
and 180 workers here.
4.Do you have stock product to sell?
No,All of our products are designed according to customer’s requirement.
5.What information should i let you know if i want to get a quotation?
--Quantity
--What’s the detailed size (top diameter,bottom diameter,and height)
--What’s the paper sickness
--It is used for hot drink or cold drink
6.What about the delivery time?
Usually 50 days,but will depend on your quantity and size.
7.what about the payment term ?
T/T or L/C
8.what’s your advantages ?
--13 years experience:We have been in making paper cup machine for 13 years since form 2001
--Customers all over the world
--Certificate: CE certificate ISO certificate SGS testing report
--Fast reply:Our team will reply you soon within 8 hour working day.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
6.Our product and workshop:
7.Full line for paper cups making:
8.DB-L12 machine details:
1)..we choose aluminum material for turn-plate
2).heating head is oblate , which can seal the cups easily , it is much better than that is round
3).We choose 3 raws of chains
between the three main turn-plates, we use gear running
4).Bottom part:
9.Packing details:
Contact: Sunny
Tel: 0086-15372836898
Skype: Stephanie 91337
Trademanager: cn1510646977 / cn1001114741
