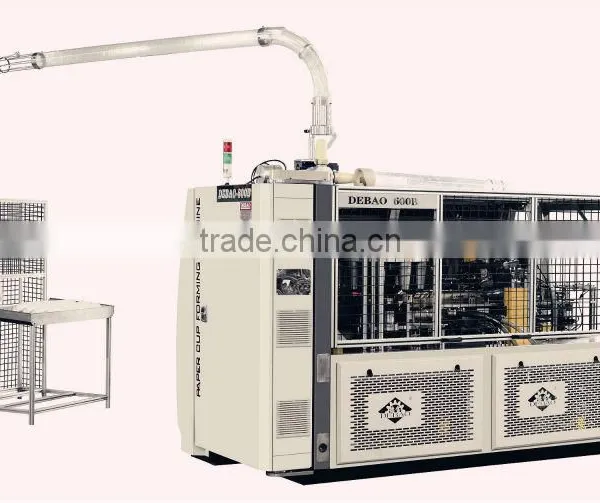

Paper Cup Machine DEBAO-600C

Paper Cup Machine DEBAO-600C photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Cup Machine
Processing Type:
Paper Folding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Paper Cup Machine
Processing Type Paper Folding Machine
Place of Origin Zhejiang, China
Brand Name DEBAO
Model Number DEBAO-600C
Voltage 380V
Power(W) 16KW
Dimension(L*W*H) 3.05X1.55X2.25(M)
Weight 4200KG
Certification CE
Warranty ONE YEAR
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Description:
It is suitable for making paper cups with height of 70-180mm.
Advantage:
1.intelligent 2.energy conservation

1.Description:

   DEBAO-600C series newly-designed paper cup forming machine optimizes its transmission system and enables each independent functional-system to operate smoothly. Thus we can greatly reduce machine-wear caused by machine's inertial movement.

   By adopting photoelectric failure-detection system, our paper cup machine's reliable performance is guaranteed, thus offering a high speed and stable operation. This middle speed paper cup forming machine will auto-stop working when there is a failure. Thus it can greatly improve operation safety standard and help reduce labor force. It simplifies paper cup forming process. this machine can finish paper feeding, gluing, cup-bottom feeding, heating, knurling, cup-mouth curling, cup-collecting, etc. at one step. It is especially suitable for making paper cups with a height of 70-180mm

2.Technical parameters:



Model

DEBAO-600C

production capacity

60-80pcs/min

required paper

230-400gsm

container capacities







(A)top dia:¢70-95mm

(B)height:130-180mm

(C)bottom dia:¢40-75mm

(D)knurling:5-12mm

Air supply requirement

0.5-0.8Mpa  0.4m3/min

total power

380V 50HZ 16KW

weight

4200kg

overall dimensions(L*W*H)

3.15m×1.55m×2.25m



3.Advantages:

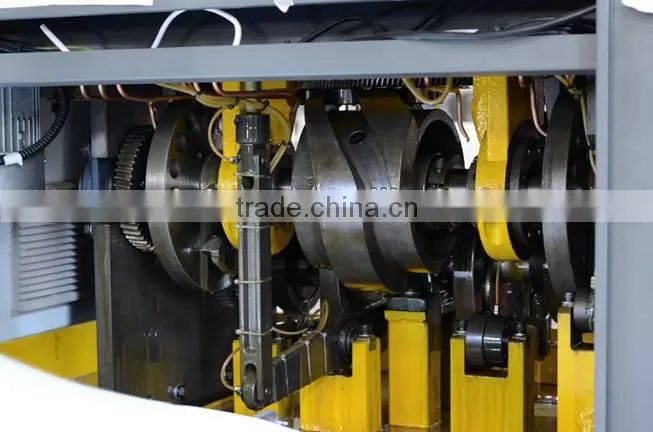

  1. It is designed with drum-type cam indexing and positioning, which offers high precision indexing and positioning as a result of its good inertia-resistance capability.



2.Self-lubrication for the machine's moving parts.

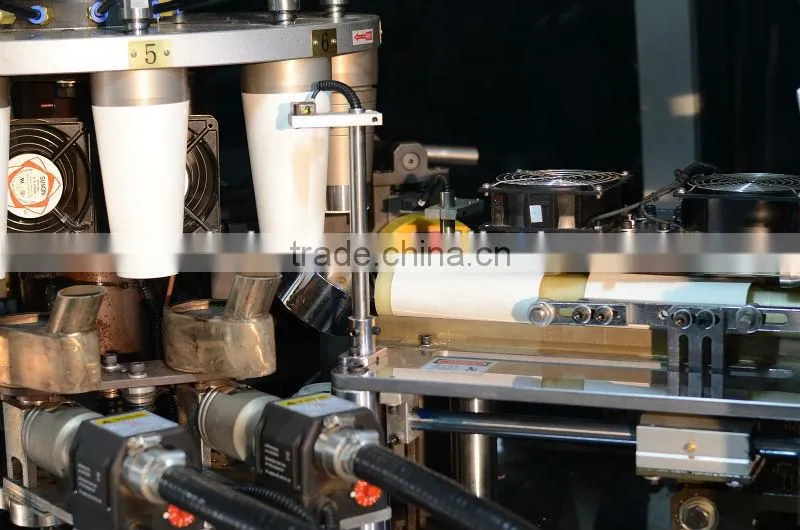

paper cup machine DEBAO-600C

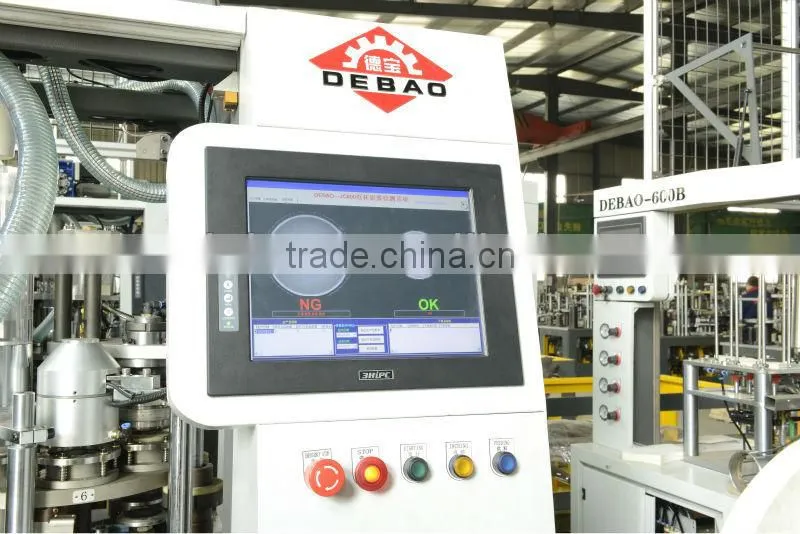

3.Photoelectric failure-detecting system is available.

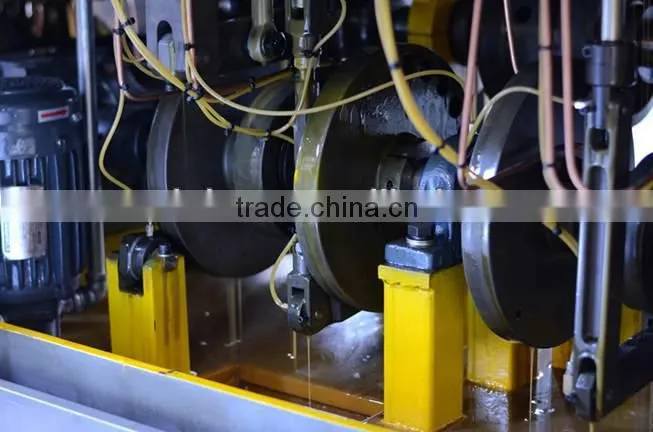

paper cup machine DEBAO-600C



4. Switzerland leister heating device is equipped. Cup-bottoms are heated at first before they are fed, thus improving heating effect and helping guarantee knurling quality.

 paper cup machine DEBAO-600C
