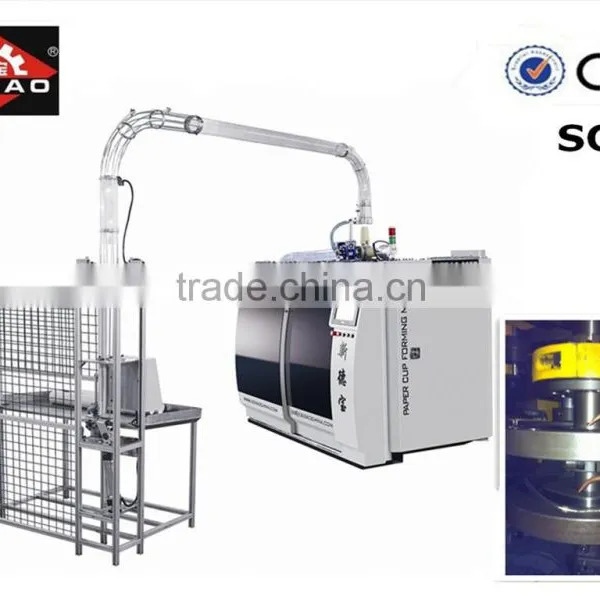

coffee cup making machine DEBAO-600S,The only paper cup machine manufacture use gear & cam transmission in china , no any chains

Specifications

coffee cup making machine
1.cup size :5 oz to 16oz
2.paper material : 1pe and 2pe coated paper
3.it has ce

   coffee cup making machine



1. description

      MODEL debao-600S double turnplate high speed paper cup machine is fit for making  hot and cold drinks  cup . it is our late china paper cup machine st paper cup machine , fit for making 8oz to 16oz cup sizes , new driving system and  with cup inspection control as  option by customerself



2.Main technical Parameter

Model	DEBAO-600S
production capacity	80-90pcs/min
Paper thickness	230-400gsm
Paper cup specification	(A)70-100mm;(B)50-135mm;(C)40-75mm;(D)5-12mm
Air soure request(double PE)	0.5-0.8Mpa
Air consumption	0.4m3/min
Power source	380V  16KW
weight	3500kg
overall dimensions	4000×1620×2100mm

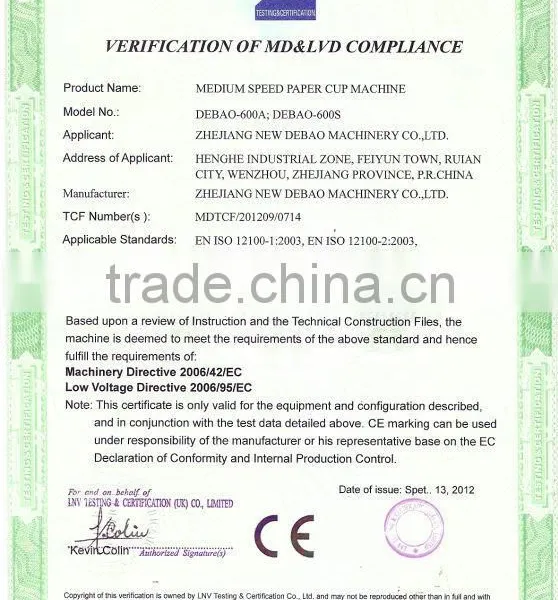

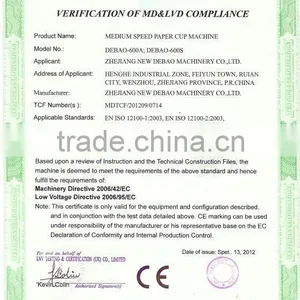

2. certificates









 3.sell key points



    A).Photoelectric failure-detecting system is available , PLC control system for cup bottom paper feeding







B).Full transmission with gear & cam only , without any chains , keep the machine running more steadily









C).All electrical parts use imported , such as omron, Schneider,Switzerland Leister, Yaskawa etc

With PLC control system





D).With two top curling course ,and keep the cup top mouth nicer







4.delivery and shippment



      60 days will be shippment after received your deposits

    packing with wooden case .
