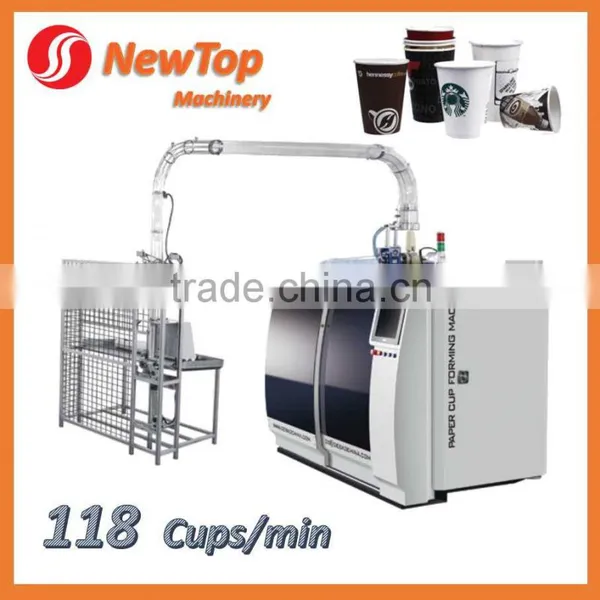

High Speed Paper Cup Machine 100pcs/min 3oz-20oz (DEBAO-600S)

High Speed Paper Cup Machine 100pcs/min 3oz-20oz (DEBAO-600S) photo-1
US$ 60,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Cup Machine
Processing Type:
Other, paper cup forming
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Paper Cup Machine
Processing Type Other, paper cup forming
Place of Origin Zhejiang, China
Brand Name Newtop
Model Number DEBAO-600S
Voltage 380v
Power(W) 18kw
Dimension(L*W*H) 2300x1600x1900 mm
Weight 4000kgs
Certification CE
Warranty 3 years
After-sales Service Provided Engineers available to service machinery overseas



High speed paper cup machine 100pcs/min 3oz-20oz (DEBAO-600S)
High speed paper cup machine 100pcs/min 3oz-20oz (DEBAO-600S)









1.Machine Description

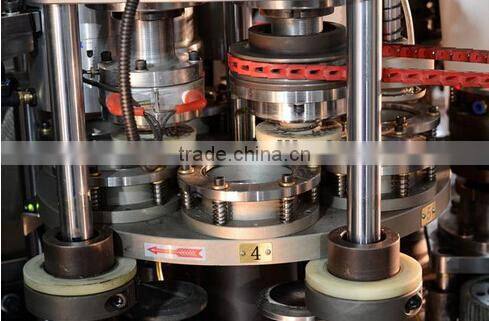

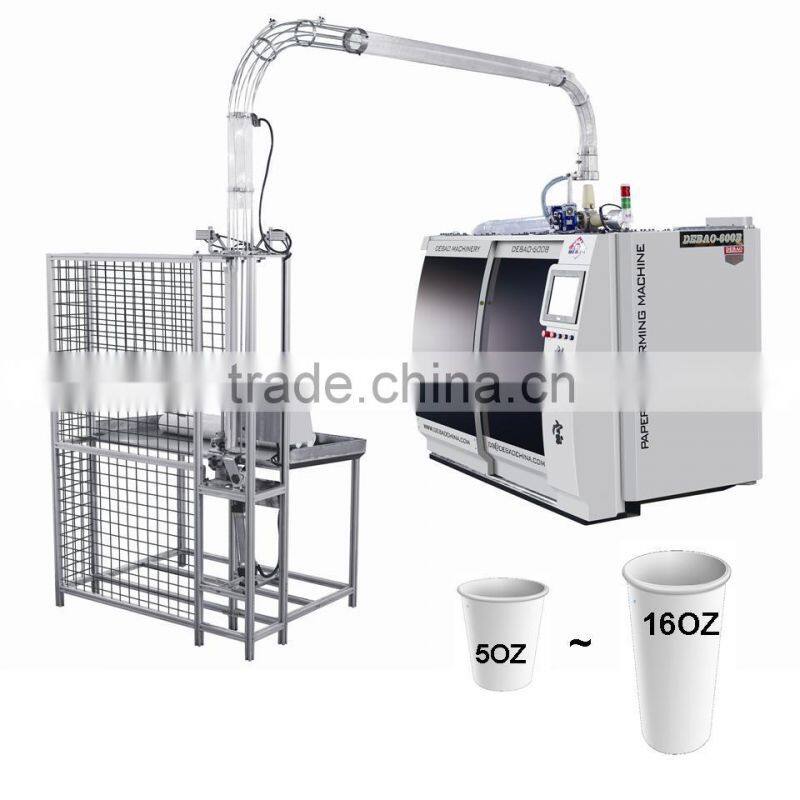

      MODEL debao-600S double turnplate high speed paper cup machine is fit for making hot and cold drinks  cup.This model can fit for making 5oz to 16oz cup sizes, new driving system and with cup detection system as option by customers.

 High speed paper cup machine 100pcs/min 3oz-20oz (DEBAO-600S)

2.Main Technical Parameter

 Model

DEBAO-600S

 production capacity

80-90pcs/min    Working speed:87pcs/min  Max speed:104pcs/min

 Paper thickness

200-400gsm

 Paper cup specification

(A)70-100mm;(B)50-135mm;(C)40-75mm;(D)5-12mm

 Air soure request(double PE)

0.5-0.8Mpa

 Air consumption

0.4m3/min

 Power source

380V  16KW

 weight

3500kg

 overall dimensions

4000×1620×2100mm



High speed paper cup machine 100pcs/min 3oz-20oz (DEBAO-600S)

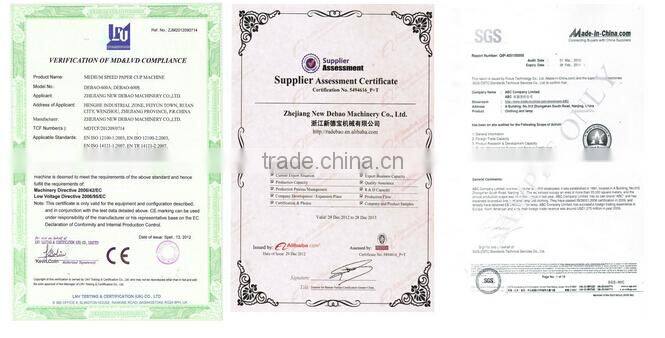

2. certificates

       High speed paper cup machine 100pcs/min 3oz-20oz (DEBAO-600S)



3.sell key points



  A).Photoelectric failure-detecting system is available , PLC control system for cup bottom paper feeding
High speed paper cup machine 100pcs/min 3oz-20oz (DEBAO-600S)

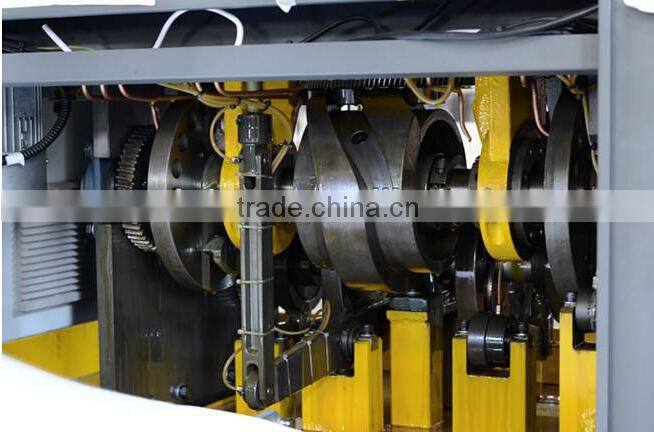

B).Full transmission with gear & cam only , without any chains , keep the machine running more steadily



High speed paper cup machine 100pcs/min 3oz-20oz (DEBAO-600S)

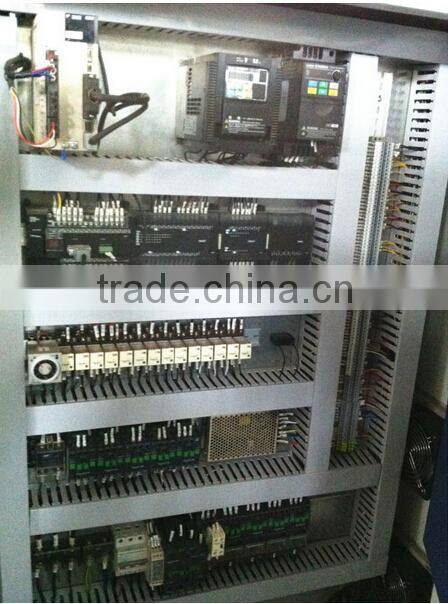

C).All electrical parts use imported , such as omron, Schneider,Switzerland Leister, Yaskawa etc

With PLC control system

High speed paper cup machine 100pcs/min 3oz-20oz (DEBAO-600S)

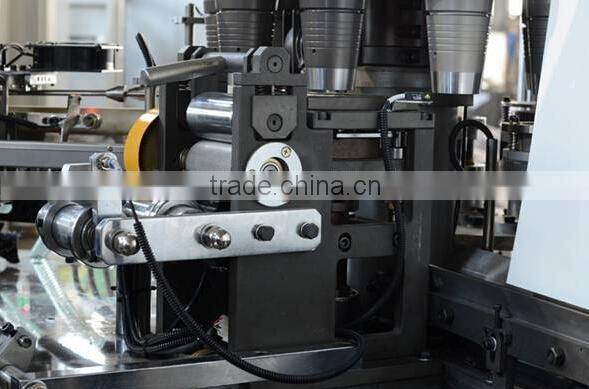

D).With two top curling course ,and keep the cup top mouth nicer

 High speed paper cup machine 100pcs/min 3oz-20oz (DEBAO-600S)

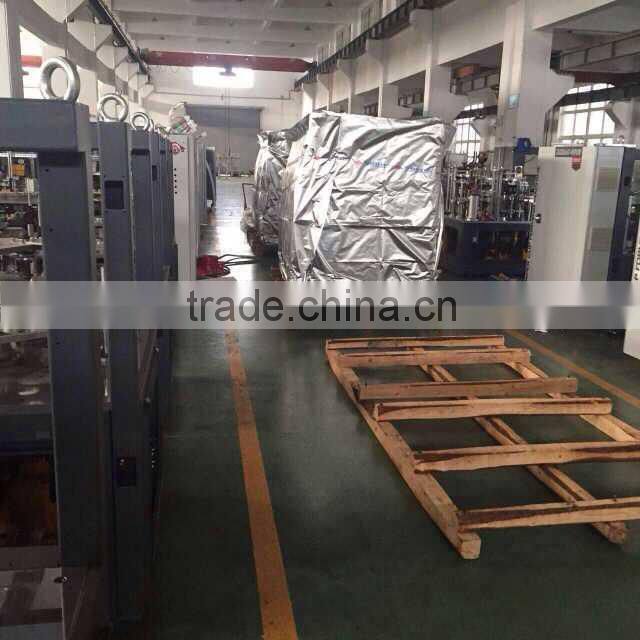

4.delivery and shippment

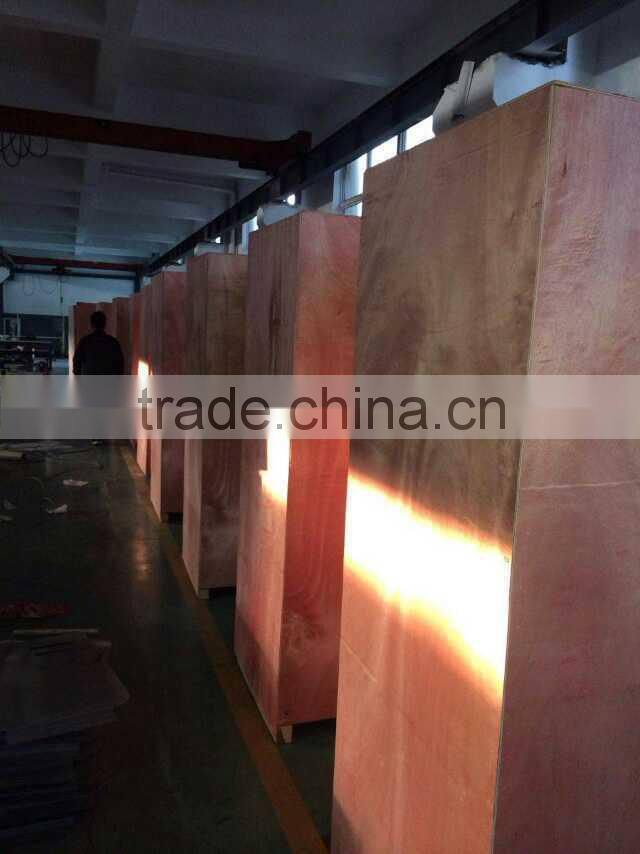

 60 days will be shippment after received your deposits packing with wooden case.

High speed paper cup machine 100pcs/min 3oz-20oz (DEBAO-600S)High speed paper cup machine 100pcs/min 3oz-20oz (DEBAO-600S)
