Climatic Testing Equipment IP68 Test Machine
Climatic Testing Equipment IP68 Test Machine
Main Technology Parameters
Model |
DI-400 |
DI-800 |
DI-1000 |
Workroom dimension (mm) |
600*850*800 D*W*H |
800*1000*1000 |
1000*1000*1000 |
External dimension (mm) |
1120*1710*1280 |
1050*1420*1820 |
1250*1420*1820 |
Performance index | |||
Metal mesh diameter |
50um |
||
Nominal spacing between lines |
75um |
||
The Talcum powder amount |
2kg ~ 4kg/m3 |
||
Fight time |
0 ~ 99H59M |
||
Fan cycle time |
0 ~ 99H59M |
||
Specimen power outlet |
Dust-proof socket AC220V 16A |
||
Control system | |||
Controller |
programmable Color Touch Screen Type |
||
Vacuum system |
Equipped with a pressure gauge, air filter, pressure regulating triple,connecting tube ( Reprovision vacuum pump, which should be explained in detail when ordering) |
||
Circulating fan |
Enclosed alloy low-noise motor, multi-vane centrifugal fan |
||
Dust heating system |
Stainless steel mica sheet heating jacket |
||
Safety Devices |
Electric leakage, short circuit, Overtemperature, motor overheating Overcurrent protection/ Power failure memory function for controller |
||

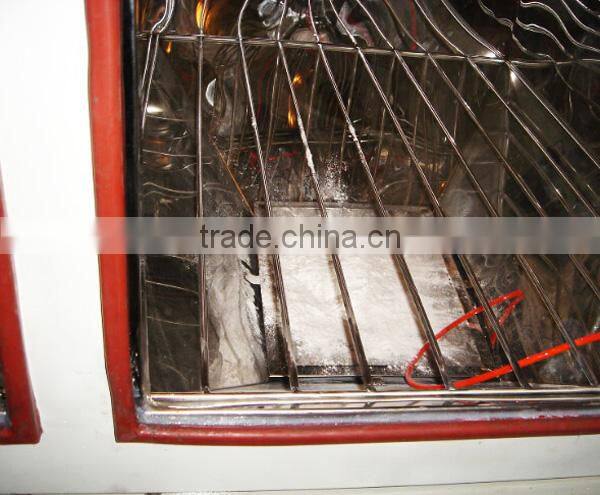

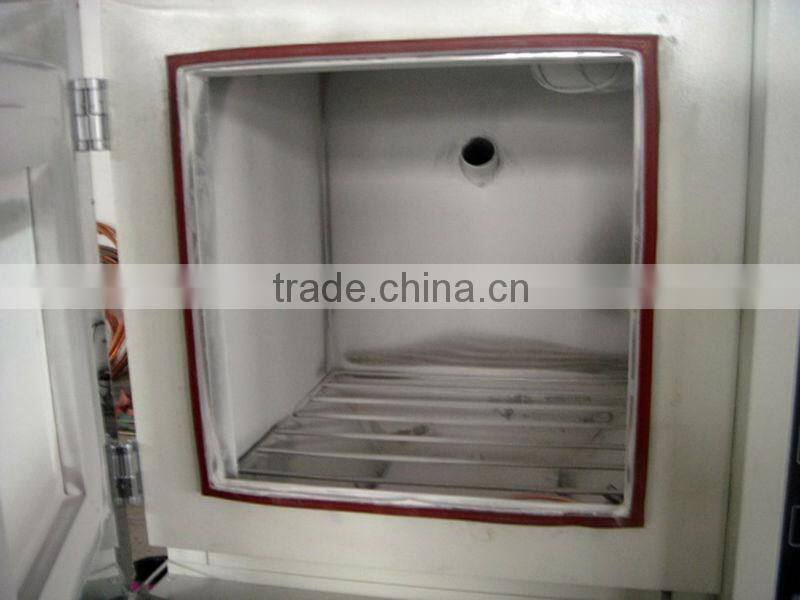

Test Area And Shelf
1. Is made of stainless-steel;
2. A shelf is located above the sieve and funnel, you can put test specimen on it;
3. Load of shelf is 50kg (If you need heavier load, please confirm with us);

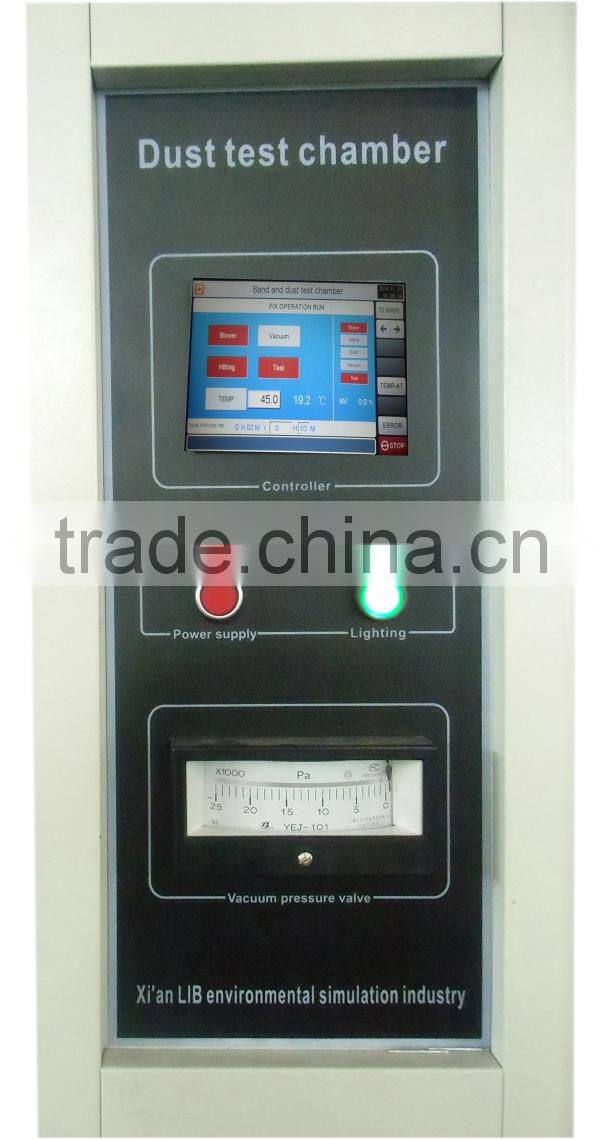

Controller Panel
5.7'' programmable color touch display;
99 programs 99 sections;
R-232 interface;
PC Link with software;
Climatic Testing Equipment IP68 Test Machine
Export Standard Wooden Package
Can be used for Sea, Air, Railway, Truck transportation.
3 Years After Sales Warranty
