Home > Products > Dust Test Chambers > Dust Chamber for IP 54 Test
Dust Chamber for IP 54 Test
- 150 Unit / Units per Month
- Shanghai Tianjing Dalian Guangzhou Shenzhen HongKong
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | LIB industry | Model Number: | DI-1000 |
Power: | Electronic | Usage: | Universal Testing Machine |
Product Description

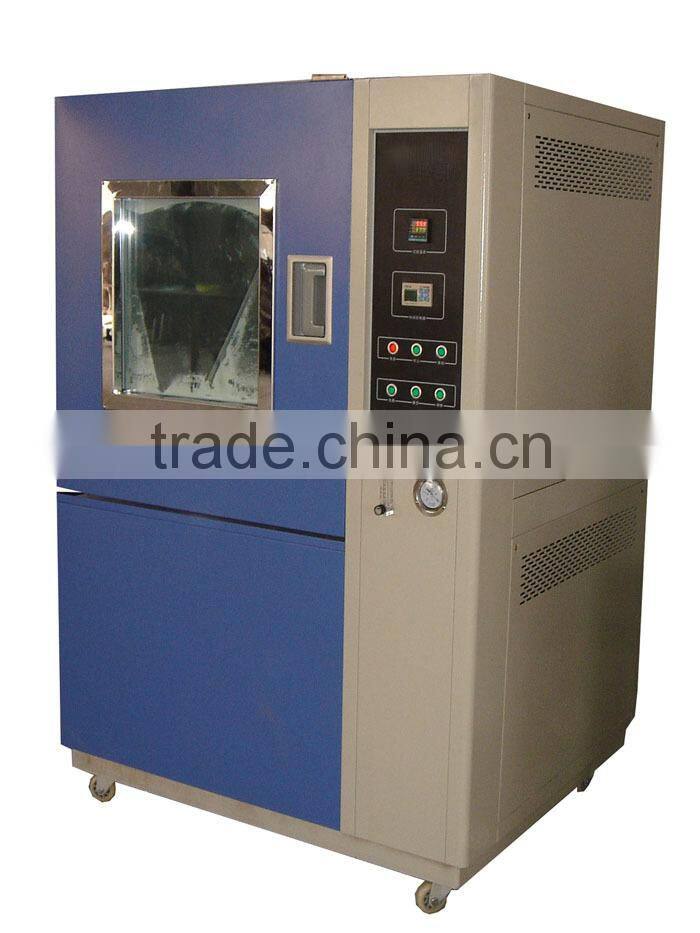

Dust Chamber for IP 54 Test
Dust Chamber for IP 54 Test
Designed according to IEC60529 Standard
Constructure Pictures
Test area and shelf
Test area is made of stainless-steel
A shelf is located above the sieve and funnel, you can put Test specimen on it.
Load of shelf is 50kg( if you need heavier load,please confirm with us).
And we reserve power interface for test specimen.
75um Sieve
Pump Systems
Dust circulation
During test, dust is blown in workroom by air, then fall in funnel through, and cycle blowing by circulating pump to achieve dust circulation blowing in test area.

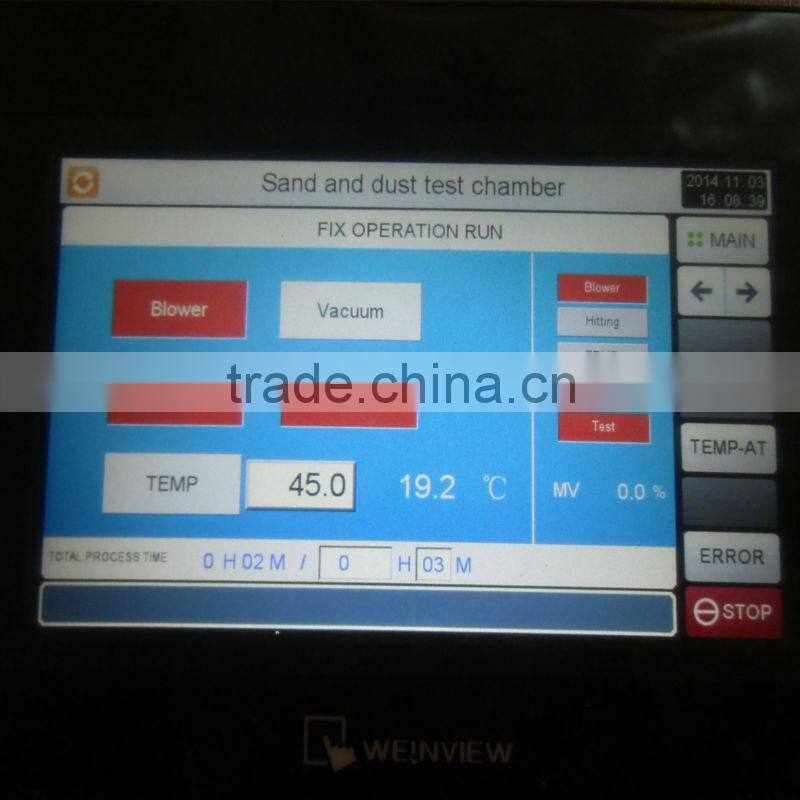

Programmable Touch Screen Controller
Control Panel
5.7" programmable color touch display controller
99 programs 99 sections ;R-232 interface ;PC Link with software

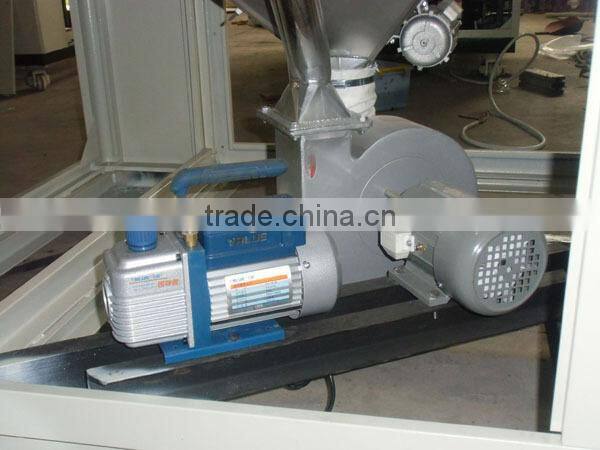

Vacuum system
Some test specimens need to vacuumize.
Equipped with vacuum pump, a pressure gauge, air filter,pressure regulating triple, connecting tube.
Technical Parameters
Model | DI-800 | DI-1000 | |
Workroom dimension (mm) | 800*1000*1000 | 1000*1000*1000 | |
External dimension (mm) | 1050*1420*1820 | 1250*1420*1820 | |
Performance index | |||
Metal mesh diameter | 50um | ||
Nominal spacing between lines | 75um | ||
The Talcum powder amount | 2kg ~ 4kg/m3 | ||
Fight time | 0 ~ 99H59M | ||
Fan cycle time | 0 ~ 99H59M | ||
Specimen power outlet | Dust-proof socket AC220V 16A | ||
Control system | |||
Controller | Imported microcomputer programmable integrated controller (MOELLER) | ||
Vacuum system | Equipped with a pressure gauge, air filter, pressure regulating triple, connecting | ||
Circulating fan | Enclosed alloy low-noise motor, multi-vane centrifugal fan | ||
Dust heating system | Stainless steel mica sheet heating jacket | ||
Power supply | 380V 50HZ; | ||
Safety Devices | Electric leakage, short circuit, Over-temperature, motor overheating | ||
Note: The test chamber can meet the standards IEC60529 GB2423,GB4706,GB4208, and satisfy the experiment requirements of parts enclosure protection grade for household appliances for DIN,low-voltage apparatus,automobiles,motorcycle. It can’t meet a sand and dust test with wind source according to GJB150. | |||
Packaging dimension and weight
Model | Packing Dimension | Packing Weight | Delivery Time |
DI-800 | 1500*1800*2200 mm | 530kg | 18days |
DI-1000 | 1700*1900*2200 mm | 700kg | 18days |
LIB: we have no stock, our standard delivery is 25 days , if you need in urgent , we can speed up the production ,will short to 15 days , customer should notice before order .
Question: How about your LIB payment terms?
LIB: Our payment is 50% with order, and 50% before delivery.
Question: Can LIB arrange delivery to our office (Lab)?
LIB: Yes, LIB can arrange shipping to your country and to your office ( Lab) by sea, by air, by train and by truck on conditions FOB, CFR, CIF, DDU and DDP for customers .
Question: Can we visit your plant before order?
LIB: We welcome and sincerely invite you or your team to visit our plant, we will help you to arrange hotel and pick you up from airport.
Question: Have you sold chambers to our country?
LIB: Now LIB climatic test chambers sold to more than 25 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand Vietnam, Thailand, Iran, Brazil ……and so on .
Question: Can you arrange installations and commissioning in our lab?
LIB: Firstly, for standard chamber we had 5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate .
Question: How about your warranty?
LIB: It is three years warranty for every LIB’s chamber, and lifetime service. Now LIB has 8 agents in the world, and in Europe (Italy) , America (USA) Middle East(Iran) had service office, we can in first time to solve your problems.
