IEC 60529 Dust Proof Test Chamber

US$ 9,850 - 12,750 MOQ: 1 Unit

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

LIB

Model Number:

DI-800

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Guangzhou Dalian Tianjin Shenzhen HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name LIB

Model Number DI-800

Power Electronic

Usage Universal Testing Machine

IEC 60529 Dust Proof Test Chamber

Product Description

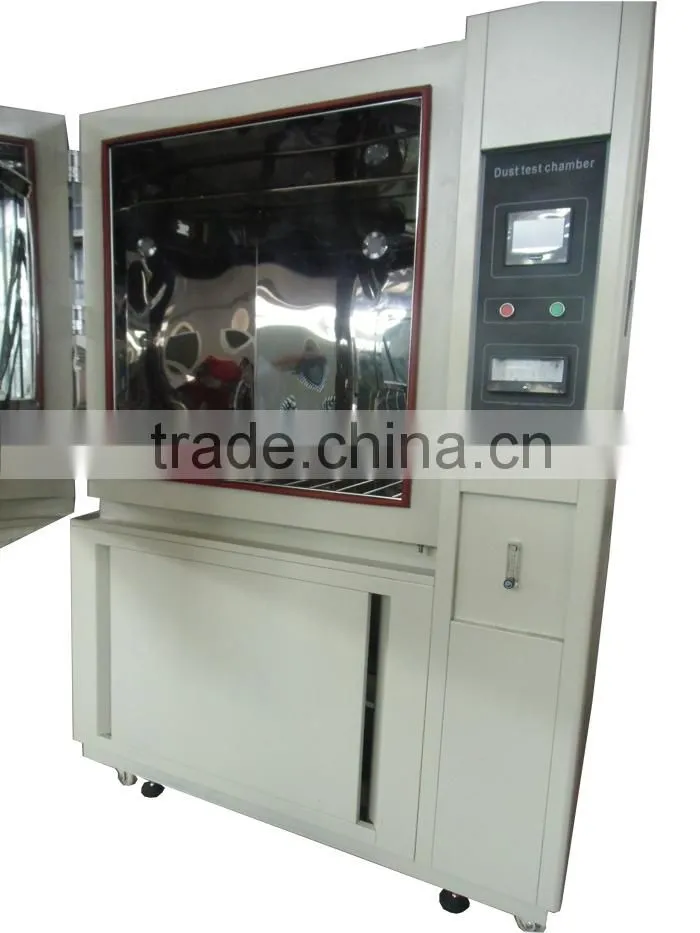

IEC 60529 Dust Proof Test Chamber

Main Technology Parameters

Model	DI-800	DI-1000	DI-1500	DI-2000
Internal dimensions (mm)	*80010001000*	*100010001000*	*100015001000*	*120018001200*
Overall dimensions (mm)	*105014201820*	*125014201820*	*125019001820*	*150022002200*
Performance index
Metal mesh diameter	50um
Nominal spacing between lines	75um
The Talcum powder amount	2kg ~ 4kg/m3
Fight time	0 ~ 99H59M
Fan cycle time	0 ~ 99H59M
Specimen power outlet	Dust-proof socket AC220V 16A
Control system

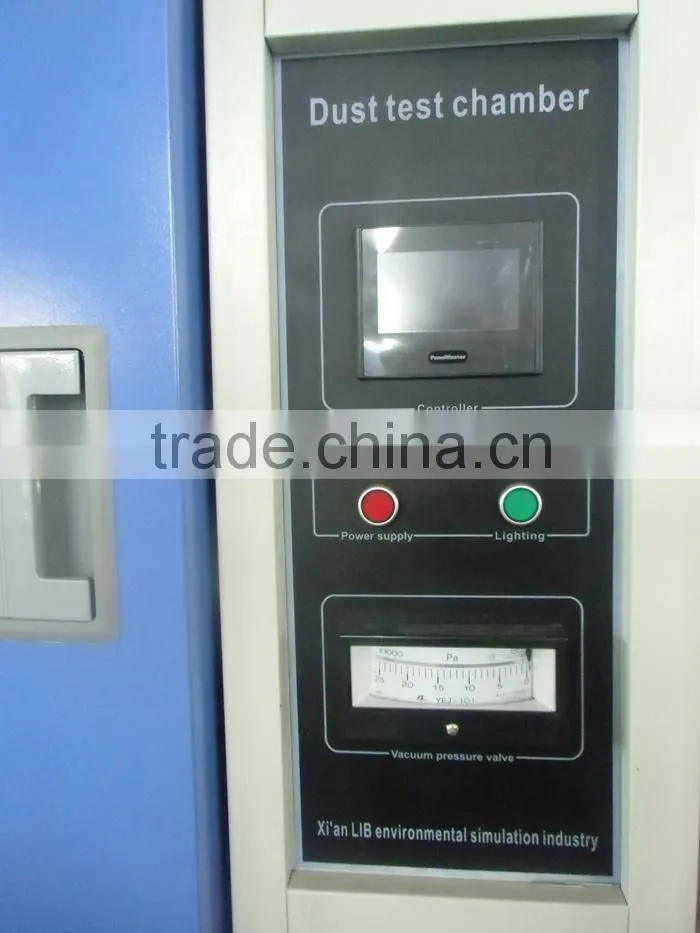

Controller	Programmable color touch-screen controller
	PC Link with software, R-232 interface
Vacuum system	Equipped with a pressure gauge, air filter, pressure regulating triple, connecting tube ( Reprovision vacuum pump, which should be explained in detail when ordering)
Circulating fan	Enclosed alloy low-noise motor, multi-vane centrifugal fan
Dust heating system	Stainless steel mica sheet heating jacket
Power supply	380V 50HZ;
Safety Devices	Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller
Note: The test chamber can meet the standards IEC60529 GB2423,GB4706,GB4208, and satisfy the experiment requirements of parts enclosure protection grade for household appliances for DIN,low-voltage apparatus,automobiles,motorcycle. It can’t meet a sand and dust test with wind source according to GJB150.
