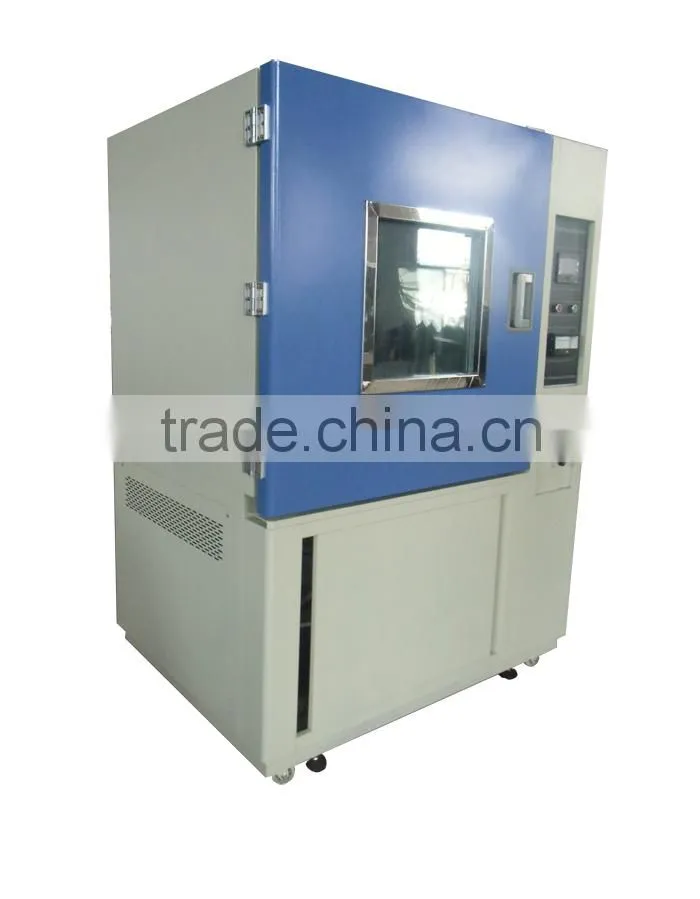

Sand And Dust Resistance Test Chamber

FOB Price

USD $9,850 - $12,750 / Unit

1 Unit(Min.Order)

Product Details

Place of Origin:	Shaanxi, China	Brand Name:	LIB	Model Number:	DI-800
Power:	Electronic	Usage:	Universal Testing Machine

Sand And Dust Resistance Test Chamber

Product Description

Sand And Dust Resistance Test Chamber

Main Technology Parameters

Model	DI-800	DI-1000	DI-1500
Workroom dimension (mm)	80010001000	100010001000	100015001000
External dimension (mm)	105014201820	125014201820	125019001820
Performance index
Metal mesh diameter	50um
Nominal spacing between lines	75um
The Talcum powder amount	2kg ~ 4kg/m3
Fight time	0 ~ 99H59M
Fan cycle time	0 ~ 99H59M
Specimen power outlet	Dust-proof socket AC220V 16A
Control system
Controller	programmable Color Touch Screen Type
Vacuum system	Equipped with a pressure gauge, air filter, pressure regulating triple,connecting tube ( Reprovision vacuum pump, which should be explained in detail when ordering)
Circulating fan	Enclosed alloy low-noise motor, multi-vane centrifugal fan
Dust heating system	Stainless steel mica sheet heating jacket
Safety Devices	Electric leakage, short circuit, Overtemperature, motor overheating Overcurrent protection/ Power failure memory function for controller

Test Area And Shelf

1. Is made of stainless-steel;

2. A shelf is located above the sieve and funnel, you can put test specimen on it;

3. Load of shelf is 50kg (If you need heavier load, please confirm with us);

Controller Panel

5.7'' programmable color touch display;

99 programs 99 sections;

R-232 interface;

PC Link with software;

Sand And Dust Resistance Test Chamber

Packaging & Shipping

Export Standard Wooden Package

Can be used for Sea, Air, Railway, Truck transportation.

Our Services

3 Years Warranty
