China Disposable Paper Bowl Making Machine

China Disposable Paper Bowl Making Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, paper bowl machine
Processing Type:
Other, Paper bowl machine
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, paper bowl machine
Processing Type Other, Paper bowl machine
Place of Origin Zhejiang, China
Brand Name NEW EDBAO
Model Number DB-B70
Voltage 380v
Power(W) 5kw
Dimension(L*W*H) 2800*1400*1900mm
Weight 1500kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

DB-B70 Paper Bowl Machine China disposable paper bowl making machine.
Product capacity:40-50 pcs/min
paper grams: 150-250gsm


Product Description

                                             paper bowl forming machine  DB-B70

                     China disposable paper bowl making machine

   1. Description

DB-Paper Bowl Forming Machine is an automatic forming machine.It has many procedures,including feeding,two-procedure preheating, sealing,filling silicone oil, punching bottom, two punching bottom, two-procedure bottom heating, knurling, curling, roll- watering line, putting down bowl & checking photoelectric, watering line, putting down bowl & checking photoelectric, troubles warning, counting, etc.



       2.  Main Technical Parameter



MODEL

             DEBAO-B70  PAPER CUP MACHINE



Production Capacity

     40-50PCS/min

Paper cup specification

          (A)60-120mm;(B)60-115mm;(C)50-98mm;(D)4.5-11mm

Paper request gram

                        150-250GSM (one PE coated paper)



Total power

                                                    380v  50hz  5kw

Weight

1500kg

Overall dimensions

2800×1400×1900mm




                       China disposable paper bowl making machine







  3.  Advantages



       a. The main-frame of the machine is an incline.With the incline, cups drop rate can reach up to 99.99% in the Nylon plate.



        b. The oblate head can seal the cups easily.



        c. the machine sends the paper of the cup bottom and keep it not turn arond.



  4.  Certificates







                      China disposable paper bowl making machineChina disposable paper bowl making machine





China disposable paper bowl making machine





     5.  Pictures of Our Machine Parts (DB-B70)

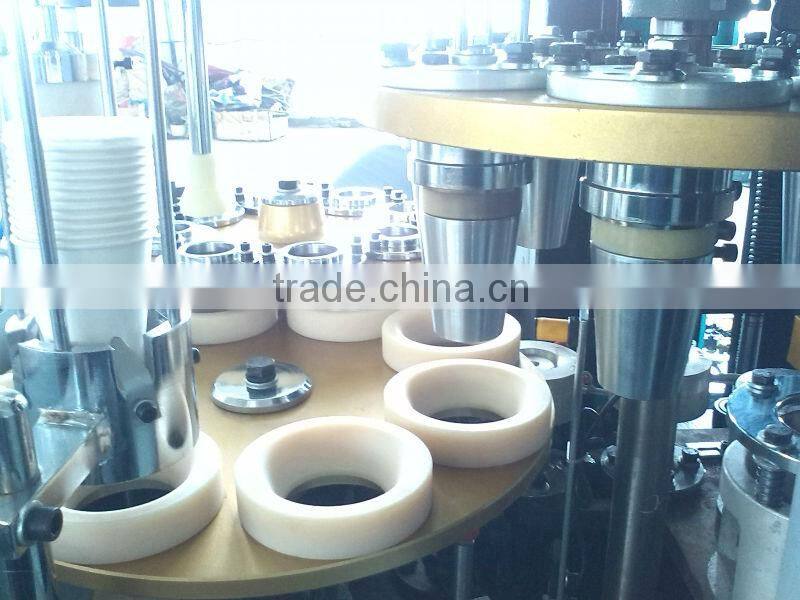

                    The shape of the head is oblate, which send the paper in steadily.



    China disposable paper bowl making machine



                   The three parts are made of aluminum,they can reduce power consumption.



China disposable paper bowl making machine

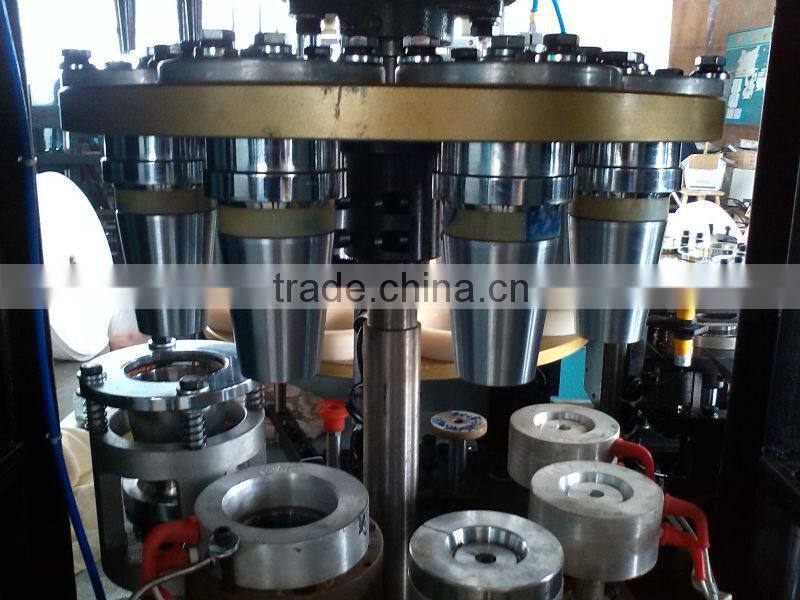

                            The mole plate is used for heating,knurling,convex knurling,curing.







China disposable paper bowl making machine

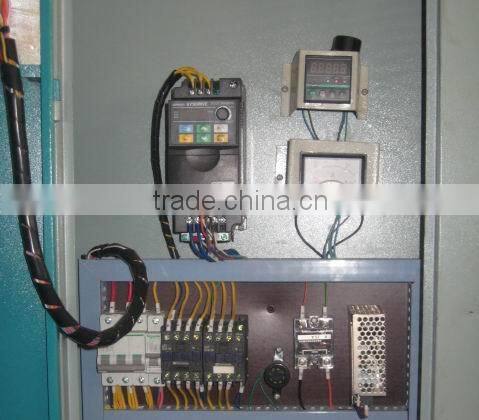

                                     The part omron , Japan transducer

                                                      China disposable paper bowl making machine

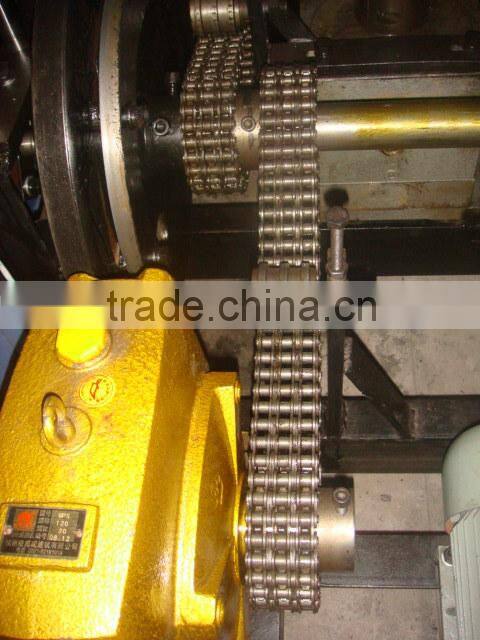

                                                        Three range chains

                                         China disposable paper bowl making machine

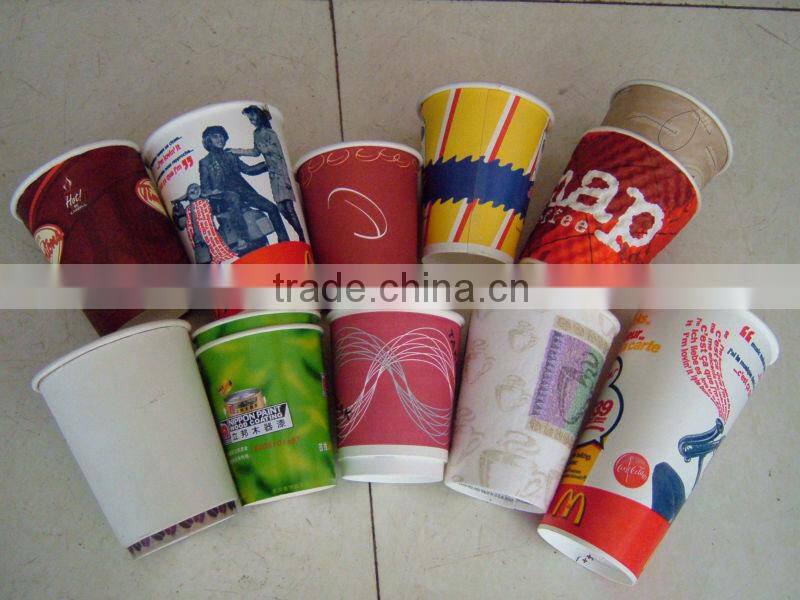

  6.  Paper Cup Samples:



China disposable paper bowl making machine











China disposable paper bowl making machine



     7.Packing details:

China disposable paper bowl making machine
