Hot Air Ovens With Digital Temperature Controller
Hot Air Ovens With Digital Temperature Controller
Main Technical Parameter
Model |
0-100 |
0-225 |
0-500 |
0-800 |
0-1000 |
|||||
Internal dimensions (mm) |
400*500*500 |
500*600*750 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
|||||
Overall dimensions (mm) |
750*880*850 |
800*950*1000 |
1100*1100*1300 |
1100*1450*1400 |
1300*1400*1400 |
|||||
Temperature range |
Ambient~+250 ℃; Ambient~+400 ℃; Ambient~+900 ℃; |
|||||||||
Temperature fluctuations |
± 0.5 ℃ |
|||||||||
Temperature deviation |
± 2.0 ℃ |
|||||||||
Heating rate |
about 6 ℃ / min |
|||||||||
Controller |
Digital PID Temperature Controller |
|||||||||
programmable color display touch screen, PC Link with software, R-232 interface (Optional) | ||||||||||
Temperature Sensor |
PT100 A-class |
|||||||||
Temperature Resolution |
± 0.1 ℃ |
|||||||||
Heating system |
Independent Nichrome electronic heating system |
|||||||||
Circulatory system |
Cold resistance and low noise centrifugal wind wheel |
|||||||||
Exterior material |
Steel Plate with Protective coating |
|||||||||
Interior material |
SUS304 stainlesssteel |
|||||||||
Insulation window |
Double thermostability silicone rubber sealing |
|||||||||
Standardconfiguration |
2 sets of shelf , 1 copy of operating specification |
|||||||||
Timing Function |
0.1~999.9 (S,M,H) settable |
|||||||||
Environmental conditional |
5℃~+30 ℃ ≤85% RH |
|||||||||
Nominal power |
2500W |
3000W |
3500W |
4500W |
6500W |
|||||
Power Supply |
AC220V 50HZ |
AC220V 50HZ |
AC220V 50HZ |
AC220V 50HZ |
AC380V 50HZ |
|||||
Design and Construction

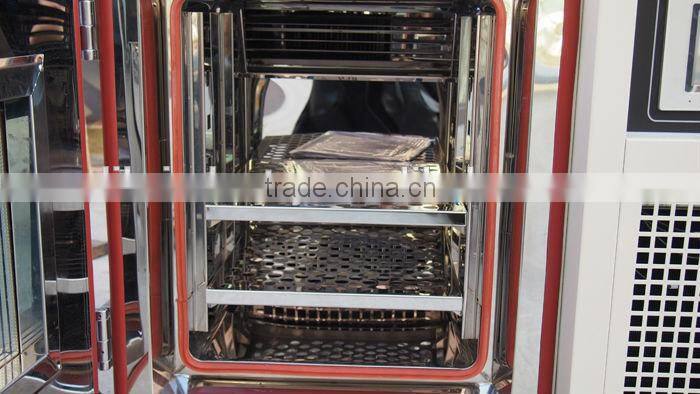

Test area
Test area is made of stainless-steel.
2 stainless steel shelves (adjustable)

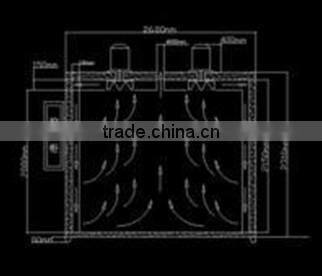

Temperature air flow
The real wall of test area with chip-type wind board and return air inlet
to achieve air flow.
Air flowing out from top of wind board which control air direction, and return
into air let to achieve air flow .
Sensor
Temperature sensor PT-100 A class
Resolution: temperature: ± 0.01 ℃
Safety protection
Independent over-temperature protection,
Over-current protection
Refrigerant high-pressure protection switch
Earth leakage protection and so on
Package with Export Standard Wooden Box
Lifelong Service
Warranty: 3 Years
Service:
Our company will repair the product, if the product, the material of the parts, the design and manufacturing of the products made by our company arise hardware problems caused by product itself rather than human error within three years warranty period since the date of delivery.
Firstly, we can provide the spare parts with you. And also provide the solution about the trouble of the products.
Secondly, Please send back the apparatus, which will be repaired by our company.
Lastly, we would like to appoint our technical engineer to your company to repair the apparatus.
|
Pre-Sales Service * Inquiry and consulting support. * Offering quotation and specifications. * Provide test solutions. * Visiting our factory.
|
|
After-Sales Service * 3 Years Warranty, Lifelong Follow-up Services. * Training how to install and operate the machine. * Training how to maintain the machine. * Response within 24 hours once got questions from customers. * Send spare parts within 2 days after got notice. * Engineers available to service machinery overseas to install and commissioning.
|
Question: I need chambers very urgently, do you have stock ?
LIB: we have no stock, our standard delivery is 10 days , if you need in urgent , we can speed up the production ,will short to 7days , customer should notice before order .
Question: How about your LIB payment terms?
LIB: Our payment is 50% with order, and 50% before delivery.
Question: Can LIB arrange delivery to our office (Lab)?
LIB: Yes, LIB can arrange shipping to your country and to your office ( Lab) by sea, by air, by train and by truck on conditions FOB, CFR, CIF, DDU and DDP for customers .
Question: Can we visit your plant before order?
LIB: We welcome and sincerely invite you or your team to visit our plant, we will help you to arrange hotel and pick you up from airport.
Question: Have you sold chambers to our country?
LIB: Now LIB climatic test chambers sold to more than 25 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Vietnam, Thailand, Iran, Brazil ……and so on .
Question: Can you arrange installations and commissioning in our lab?
LIB: Firstly, for standard chamber we had 5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate .
Question: How about your warranty?
LIB: It is three years warranty for every LIB’s chamber, and lifetime service. Now LIB has 8 agents in the world, and in Europe (Italy) , America (USA) Middle East(Iran) had service office, we can in first time to solve your problems.
