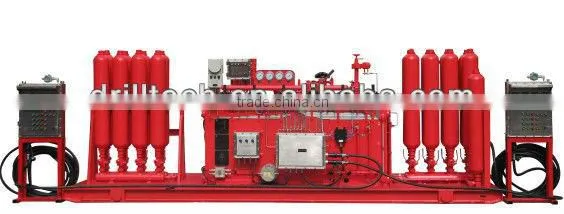

The control system for surface mounted BOP
- 20 Set / Sets per Month
- TIANJIN
- T/T
Product Details
Condition: | New | Type: | Other, control system | Brand Name: | KMC |
Model Number: | FKDY640-6 control system | Certification: | API | Warranty: | 1YEAR |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
iron sheet case
Product Description
Specifications
1. Remote control distance can reach 200 meters; 2. the control delay time is less than 0.5 second; 3. Whether the BOP is open oProduct Description:
The control system for surface mounted BOP (blowout preventer) stacks is special equipment, which is used to control BOP, hydraulic chock, kill system and diverter equipment, and indispensable equipment for blowout preventer during drilling or workover in petroleum and natural gas industry.
The function of the control system for surface mounted BOP stacks is preparing and prestoring enough hydraulic oil and controlling its flow direction, in order to open or close BOP quickly. As the hydraulic oil used, the pressure drops down, when the pressure lowers to a certain value, the control system will renew the hydraulic oil automatically, to keep the pressure in a certain high value.
Main features of the FKDY electro-hydraulic control: 1. Remote control distance can reach 200 meters; 2. the control delay time is less than 0.5 second; 3. Whether the BOP is open or close station can be shown real-time. 4. Maintenance operator should be trained professionally. 5. It can record curves of all kinds of pressure on the remote control panel.
FKDY640-6 Control Systems for the BOP
Rated pressure: 21MPa
Manifold output pressure: 0~14MPa
Nitrogen pressure: 7±0.7MPa
Range of the manual pressure regulator:0~14 MPa
Range of the manual pneumatic regulator:0~18 MPa
Air supply pressure: 0.65~0.8MPa
Power supply: 380±19V/50HZ
Ambient temperature: -40~+40
Electric pump power: 42L/M
Pneumatic pump power: 175×2 M/ punch
Motor Power: 18.5KW
Company Profile
Drilltech Manufacturing Co., LTD is a company focus on manufacturing Diverter(JACK-UP and Semi-submersible),Blowout preventer, Hydraulic disc brake and Automatic driller unit(VFD\SCR). We have API, ISO , ABS(American Bureau of Shipping), RMRS(Russian Register of Shipping) Lloyd's Register Classification Society(UK), Lloyd's Register Classification Society(Germany), Industrial and Engineering Inspection co of IRAN and the Russian Technical Supervision acceptance.
