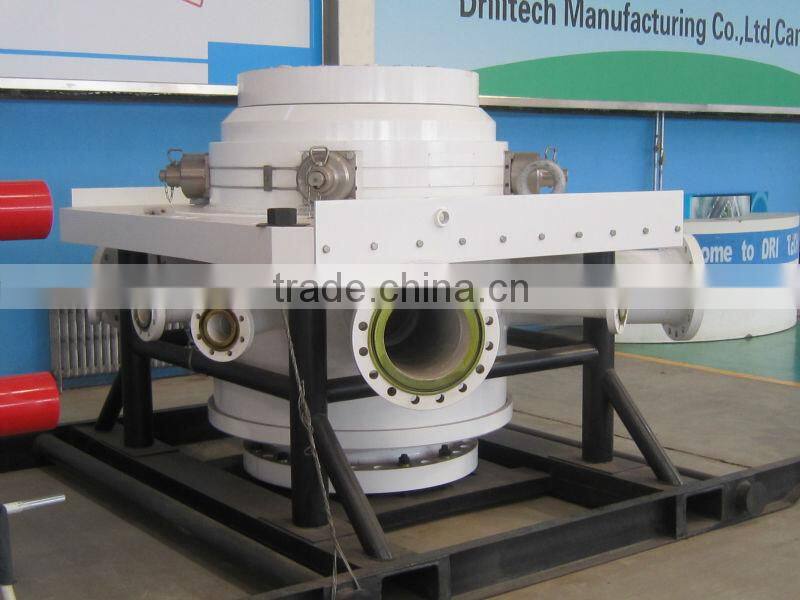

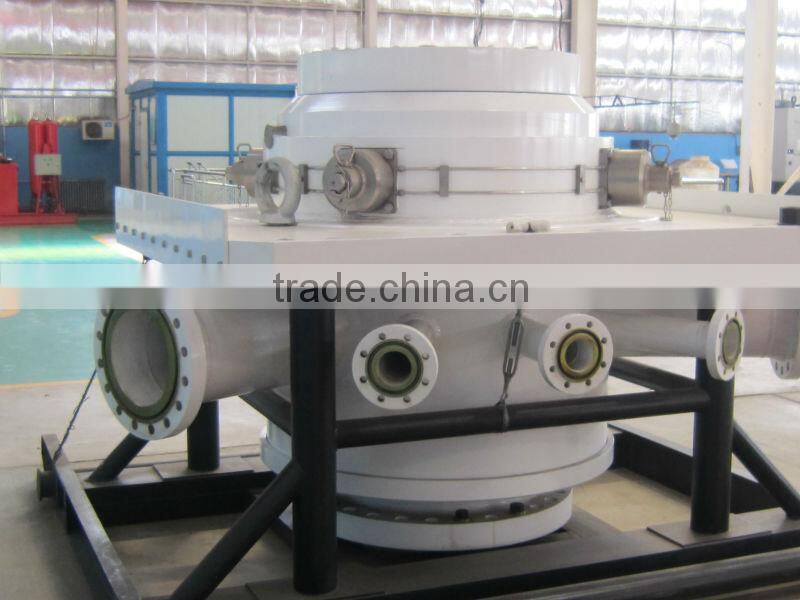

Help Center49 1/2'' Annular Diverter for Offshore Drilling Operation
Related Products
-
DTC 49 1/2"500psi Diverter System for OffshoreNegotiableMOQ: 1 Set -
DTC 49 1/2"500psi Diverter System for Offshore for TSC Jack upNegotiableMOQ: 1 Set
-
GE Exchanged 49 1/2"500psi Diverter System for Offshore for Jack upNegotiableMOQ: 1 Set
-
Oil Field DTC 49 1/2"500psi Diverter System for OffshoreNegotiableMOQ: 1 Set
-
DTC API 16A 49 1/2"500psi Diverter System for OffshoreNegotiableMOQ: 1 Set
Specifications
Max bore 28" and max diameter of bits through 49 1/2''API Spec 16A
NACE MR-01-75
H2S
API Q1 & ISO9001
Max bore diverter assembly 28"
The max diameter of bits through 47"
Specifications
49 1/2'' 500psi diverter system
(1)API Spec 16A
(2)NACE MR-01-75
(3)H2S
(4)API Q1&ISO 9001
The main functions of the Diverter
Diverter system iss a key component of offshore drilling mostly, and it always services the surface layer driling before BOP. The diverter assembly is the uppermost component of the riser system.It is not used to shut or seal the well completely, but to either direct the returning drill fluid or control the blowout and surface laye gas.When encountering the gas, the diverter can close off around drillepipe or casing, and open the special diection vent line on board at the same time.With the platform manifold, the gas will be guided and choked at special point.
Diverter system must be equipped with hydraylic control system to use. With the different size of packers, it is able to seal various shapes and sizes of driling tools including kelly, drill pipes, tool joints, drill collar,etc.Shell Test Pressure 750psi
Max bore (diverter assembly) 28"
Weight of diverter assembly 18658kg
Weight of diverter system 20068kg
Temperature Grade T20(-29°C~121°C)
Well fluid Meet NACE MRO175
Dimention 2183x2086xL mm
Send Inquiry to This Supplier
