Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > The Ram Blowout Preventer for Drilling

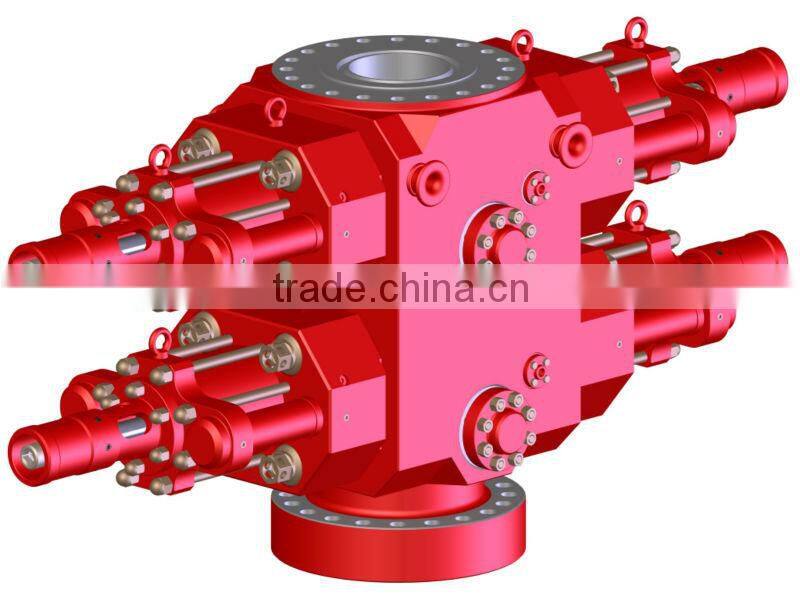

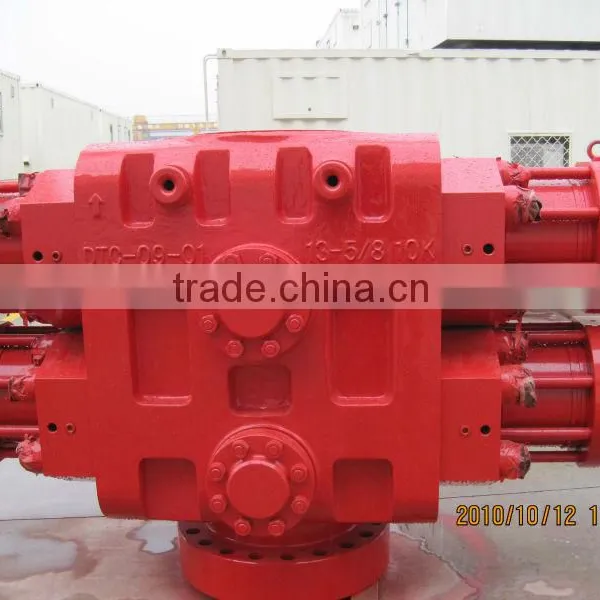

The Ram Blowout Preventer for Drilling

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Core Drilling Rig

Place of Origin:

Hebei, China

Contact Supplier Request Quote Chat Now

Drilltech Manufacturing Co., Ltd. Cangzhou

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Core Drilling Rig

Place of Origin Hebei, China

Brand Name DTC

Usage Other, oil well

Specifications

Two kinds of locking system could be chosen: the manual locking system and the automatic hydraulic locking system.

>>The features are as follows:

1 Not only the pipe rams and blind rams but also the variable bore ram and shear rams are available without any structure change.

2. it’s easy and convenient on-site to open the bonnets by hydraulic pressure.

3. The outlets on the both sides of the body make the operation on site flexible.

4. Two kinds of locking system could be chosen: the manual locking system and the automatic hydraulic locking system.

5. The pressurized self-sealing sealing mechanism is used between the body and bonnets, so it’s not necessary to apply too much pretightening force to secure the reliability of sealing.

6. it’s very convenient to lift and transport the BOPs with the four lifting rods.

7. The new sealing mechanism of ram shaft secures the sealing reliability under the high pressure.

8. The ring grooves of flanges are all lined with the corrosion resistant alloy.

>>The main specification and the parameters:

Item	Size	Specification
1	9″-10000psi Double Ram BOP	Bore: 9″ Working pressure: 10,000psi Top connection: 9″-10000psi 6BX BX157 CRA Studded Bottom connection: 9″-10000psi 6BX BX157 CRA Flanged
2	9″-10000psi Single Ram BOP	Bore: 9″ Working pressure: 10,000psi Top connection: 9-″10000psi 6BX BX157 CRA Studded Bottom connection: 9″-10000psi 6BX BX157 CRA Flanged
3	11″-10000psi Double Ram BOP	Bore: 11″ Working pressure: 10,000psi Top connection: 11″-10000psi 6BX BX158 CRA Studded Bottom connection: 11″-10000psi 6BX BX158 CRA Flanged
4	11″-10000psi Single Ram BOP	Bore: 11″ Working pressure: 10,000psi Top connection: 11″-10000psi 6BX BX158 CRA Studded Bottom connection: 11″-10000psi 6BX BX158 CRA Flanged
5	11″-15000psi Single Ram BOP	Bore: 11″ Working pressure: 15,000psi Top connection: 11″-15000psi 6BX BX158 CRA Studded Bottom connection: 11”-15000psi 6BX BX158 CRA Flanged
6	11″-15000psi Double Ram BOP	Bore: 11″ Working pressure: 15,000psi Top connection: 11″-15000psi 6BX BX158 CRA Studded nBottom connection: 11″-15000psi 6BX BX158 CRA Flanged
7	13 5/8″-10000psi Double Ram BOP	Bore: 13 5/8″ Working pressure: 10,000psi Top connection: 13 5/8″-10000psi 6BX BX159 CRA Studded Bottom connection: 13 5/8″-10000psi 6B XBX159 CRA Flanged
8	13 5/8″-10000psi Single Ram BOP	Bore: 13 5/8″ Working pressure: 10,000psi Top connection: 13 5/8″-10000psi 6BX BX159 CRA Studded Bottom connection: 13 5/8″-10000psi 6BX BX159 CRA Flanged
9	13 5/8″-15000psi Single Ram BOP	Bore: 13 5/8″ Working pressure: 15,000psi Top connection: 13 5/8″-15000psi 6BX BX159 CRA Studded Bottom connection: 13 5/8″-15000psi 6BX BX159 CRA Flanged
10	13 5/8″-15000psi Double Ram BOP	Bore: 13 5/8” Working pressure: 15,000psi Top connection: 13 5/8″-15000psi 6BX BX159 CRA Studded Bottom connection: 13 5/8″-15000psi 6BX BX159 CRA Flanged
