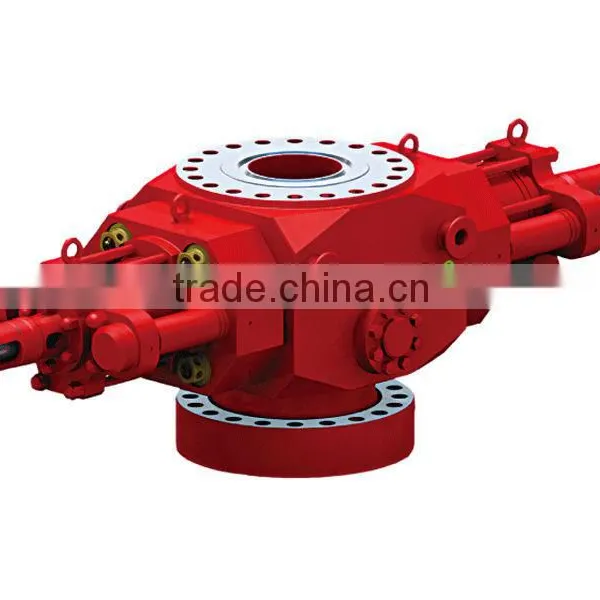

The Ram Blowout Preventer for Drilling

The Ram Blowout Preventer for Drilling thumbnail-1
The Ram Blowout Preventer for Drilling photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New, New
Type:
Core Drilling Rig
Place of Origin:
Hebei, China
Contact Supplier Request Quote Chat Now
Drilltech Manufacturing Co., Ltd. Cangzhou
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Core Drilling Rig
Place of Origin Hebei, China
Brand Name DTC
Usage Other, oil well

Specifications

Two kinds of locking system could be chosen: the manual locking system and the hydraulic locking system.Item Size Specification

>>The features are as follows:

1 Not only the pipe rams and blind rams but also the variable bore ram and shear rams are available without any structure change.

2. Matched-manufacturing isn't necessary for thr bonnets and body, so the discrepancy could be eliminated by the structure. And it's convenient for the maintenance in the future.

3. The outlets on the both sides of the body make the operation on site flexible.

4. Three kinds of locking system could be chosen: the internal manual locking system, the outside manual locking system and the automatic hydraulic locking system.

5. The pressurized self-sealing sealing mechanism is used between the body and bonnets, so it’s not necessary to apply too much pretightening force to secure the reliability of sealing.

6. it’s very convenient to lift and transport the BOPs with the four lifting rods.

7. The new sealing mechanism of ram shaft secures the sealing reliability under the high pressure.

8. The ring grooves of flanges are all lined with the corrosion resistant alloy.

>>The main specification and the parameters:



Item Size Specification
1 9" 3000psi Double Ram BOP  Bore:9"
Working Pressure: 3000psi
Top connection: 9" 3000psi 6B R49 CRA studded
Bottom connection:9" 3000psi 6B R49 CRA Flanged
2 9" 3000psi Single Ram BOP  Bore:9"
Working Pressure: 3000psi
Top connection: 9" 3000psi 6B R49 CRA studded
Bottom connection:9" 3000psi 6B R49 CRA Flanged
3 9" 5000psi Double Ram BOP  Bore:9"
Working Pressure: 5000psi
Top connection: 9" 5000psi 6B R50 CRA studded
Bottom connection:9" 5000psi 6B R50 CRA Flanged
4 9" 5000psi Single Ram BOP  Bore:9"
Working Pressure: 5000psi
Top connection: 9" 5000psi 6B R50 CRA studded
Bottom connection:9" 5000psi 6B R50 CRA Flanged
5 9" 10000psi Double Ram BOP  Bore:9"
Working Pressure: 10000psi
Top connection: 9" 10000psi 6B×B× 157 CRA studded
Bottom connection:9" 10000psi 6B×B×157 CRA Flanged
6 9" 10000psi Single Ram BOP  Bore:9"
Working Pressure: 10000psi
Top connection: 9" 10000psi 6B×B× 157 CRA studded
Bottom connection:9" 10000psi 6B×B×157 CRA Flanged
7 11" 3000psi Double Ram BOP  Bore:11"
Working Pressure: 3000psi
Top connection: 11" 3000psi 6B R53 CRA studded
Bottom connection:11" 3000psi 6B R53 CRA Flanged
8 11" 3000psi Single Ram BOP  Bore:11"
Working Pressure: 3000psi
Top connection: 11" 3000psi 6B R53 CRA studded
Bottom connection:11" 3000psi 6B R53 CRA Flanged
9 11" 5000psi Double Ram BOP  Bore:11"
Working Pressure: 5000psi
Top connection: 11" 5000psi 6B R54 CRA studded
Bottom connection:11" 5000psi 6B R54 CRA Flanged
10 11" 5000psi Single Ram BOP  Bore:11"
Working Pressure: 5000psi
Top connection: 11" 5000psi 6B R54 CRA studded
Bottom connection:11" 5000psi 6B R54 CRA Flanged
11 11" 10000psi Double Ram BOP  Bore:11"
Working Pressure: 10000psi
Top connection: 11" 10000psi 6B×B× 158 CRA studded
Bottom connection:11" 10000psi 6B×B×158 CRA Flanged
12 11" 10000psi Single Ram BOP  Bore:11"
Working Pressure: 10000psi
Top connection: 11" 10000psi 6B×B× 158 CRA studded
Bottom connection:11" 10000psi 6B×B×158 CRA Flanged
13 13 5/8" 3000psi Double Ram BOP  Bore:13 5/8"
Working Pressure: 3000psi
Top connection: 13 5/8" 3000psi 6B R57 CRA studded
Bottom connection:13 5/8" 3000psi 6B R57 CRA Flanged
14 13 5/8" 3000psi Single Ram BOP  Bore:13 5/8"
Working Pressure: 3000psi
Top connection: 13 5/8" 3000psi 6B R57 CRA studded
Bottom connection:13 5/8" 3000psi 6B R57 CRA Flanged
15 13 5/8" 5000psi Double Ram BOP  Bore:13 5/8"
Working Pressure: 5000psi
Top connection: 13 5/8" 5000psi 6B×B× 160 CRA studded
Bottom connection:13 5/8" 5000psi 6B×B× 160  CRA Flanged
16 13 5/8" 5000psi Single Ram BOP  Bore:13 5/8"
Working Pressure: 5000psi
Top connection: 13 5/8" 5000psi 6B×B× 160 CRA studded
Bottom connection:13 5/8" 5000psi 6B×B× 160  CRA Flanged
17 13 5/8" 10000psi Double Ram BOP  Bore:13 5/8"
Working Pressure: 10000psi
Top connection: 13 5/8" 10000psi 6B×B× 159 CRA studded
Bottom connection:13 5/8" 10000psi 6B×B×159 CRA Flanged
18 13 5/8" 10000psi Single Ram BOP  Bore:13 5/8"
Working Pressure: 10000psi
Top connection: 13 5/8" 10000psi 6B×B× 159 CRA studded
Bottom connection:13 5/8" 10000psi 6B×B×159 CRA Flanged
19 20 3/4" 3000psi Double Ram BOP  Bore:20 3/4"
Working Pressure: 3000psi
Top connection: 20 3/4" 3000psi 6B R74 CRA studded
Bottom connection:20 3/4" 3000psi 6B R74 CRA Flanged
20 20 3/4" 3000psi Single Ram BOP  Bore:20 3/4"
Working Pressure: 3000psi
Top connection: 20 3/4" 3000psi 6B R74 CRA studded
Bottom connection:20 3/4" 3000psi 6B R74 CRA Flanged
21 21 1/4" 2000psi Double Ram BOP  Bore:21 1/4"
Working Pressure: 2000psi
Top connection: 21 1/4" 2000psi 6B R73 CRA studded
Bottom connection:21 1/4" 2000psi 6B R73 CRA Flanged
