13-5/8" 10000psi Annular Blowout Preventer

Name: 13-5/8" 10000psi Annular Blowout Preventer
Brand: Drilltech
SKU: 107864121

US$ 40,000 - 1,000,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Blowout Preventer, Hydril Type BOP

Place of Origin:

Hebei, China

Drilltech Manufacturing Co., Ltd. Cangzhou

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Blowout Preventer, Hydril Type BOP

Place of Origin Hebei, China

Brand Name Drilltech

Model Number 13 5/8'' 10K

Dimension(L*W*H) 1636x1636x1802mm

Weight 14415Kgs

Certification API 16A, API 16A

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

annular blowout preventer
1)Annular blowout preventer 13 5/8"-10000psi
2)H2S Trim
3)Packing unit can be interchanged by Hydri

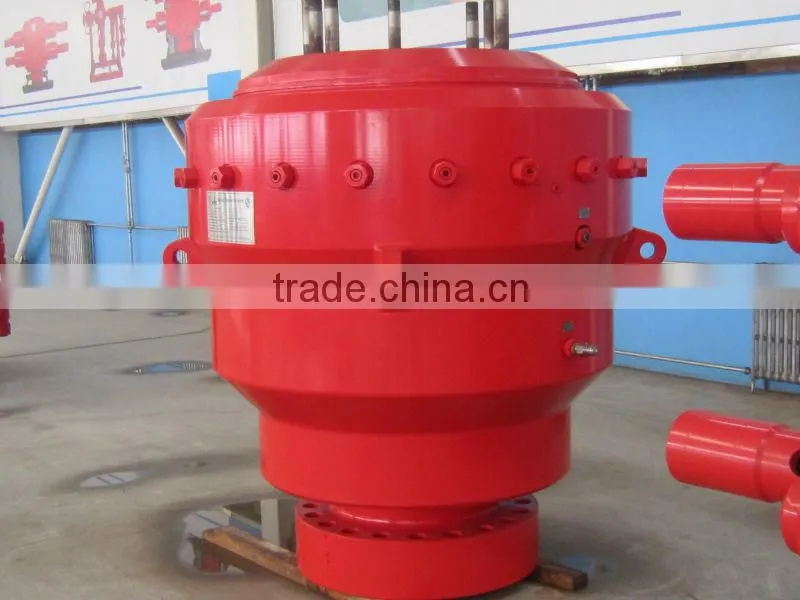

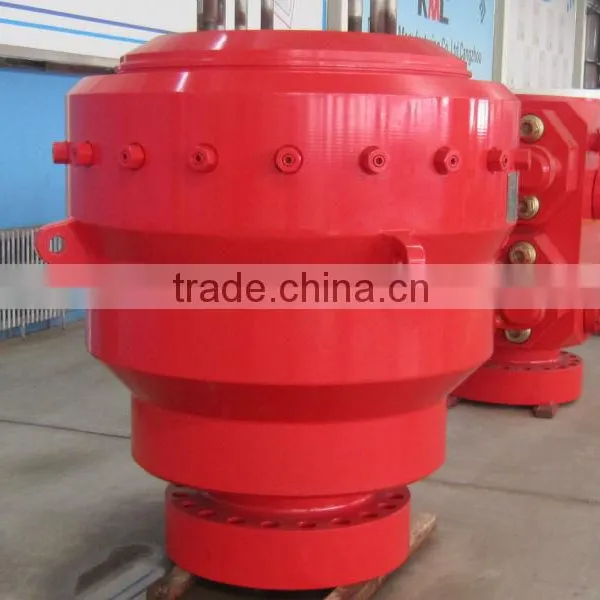

13-5/8" 10000psi Annular Blowout preventer

13 5/8" 10000 / 15000psi Annular Blowout preventer
Shaffer and Hydril type BOP
Annular BOP is simple and requires less-maintenance.
Low profile saves the installing space.

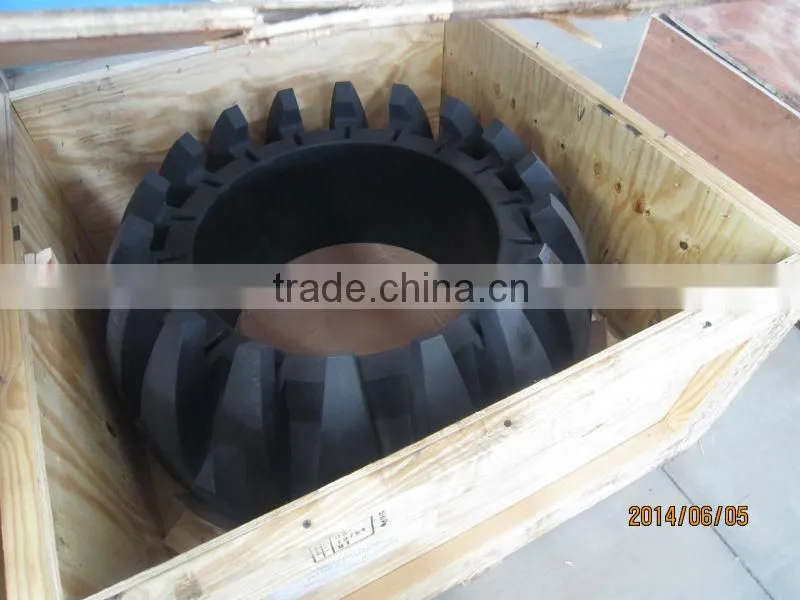

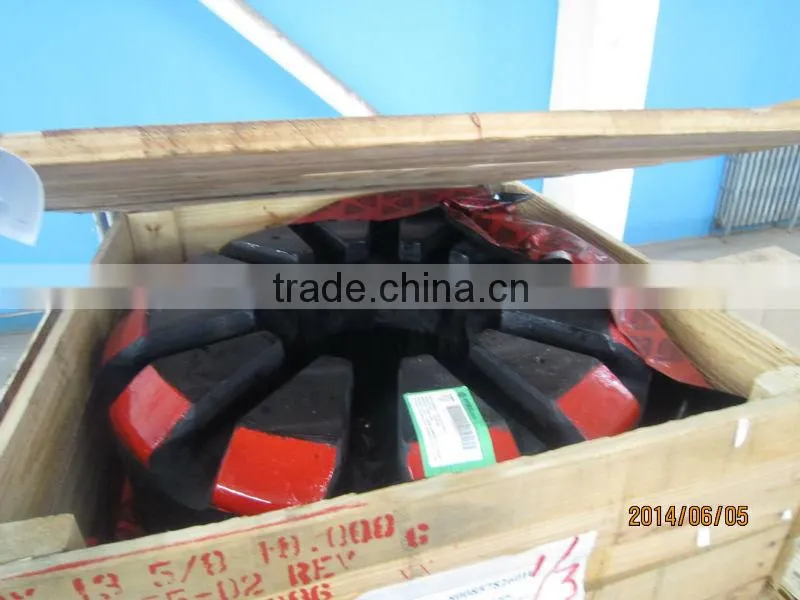

Packing unit has enough rubber volume and long service life.
Wide losing rang, losing various sizes of drill tools and wire line less than Bop bore
According to the latest API Spec 16A standard,NACE MR-01-75andquality standard of ISO 9001
H2S Trim.
Packing unit can be interchanged by Hydril's
Top connection:13 5/8"10000psi 6BX BX159 CRA Studded or Flanged
Bottom connection: 13 5/8" 15000psi 6BX BX159 CRA Flanged or Studded
Weight:14416kg
Dimension:1636 x 1636 x 1802

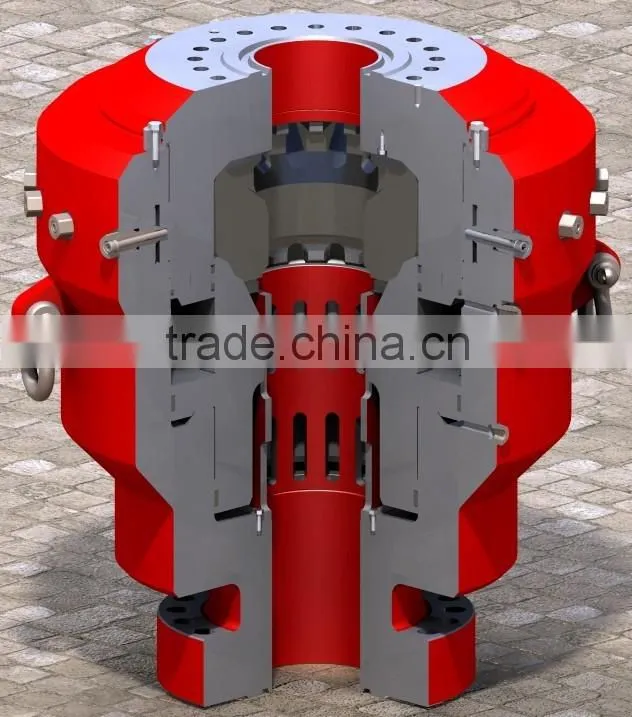

A hydraulic control system is used to close or open the annular preventer,when it is closed,high pressure oil is directed to the closing chamber positioned in the lower side of the piston,causing the piston to move upward.The rubber core is compressed by the moving piston.Because the annular BOP has a cap,the packing unit can not move upward and only can move toward the center of the well to pack off a string or seal off the well.

When well open is required,operate the reversal valve to direct high pressure oil from the upper oil-port into the chamber in the upper side of the piston so as to push the piston to move down,and then the closing chamber is relieved,the squeeze pressure at the cone of rubber core is removed,the wellhead is opened.
