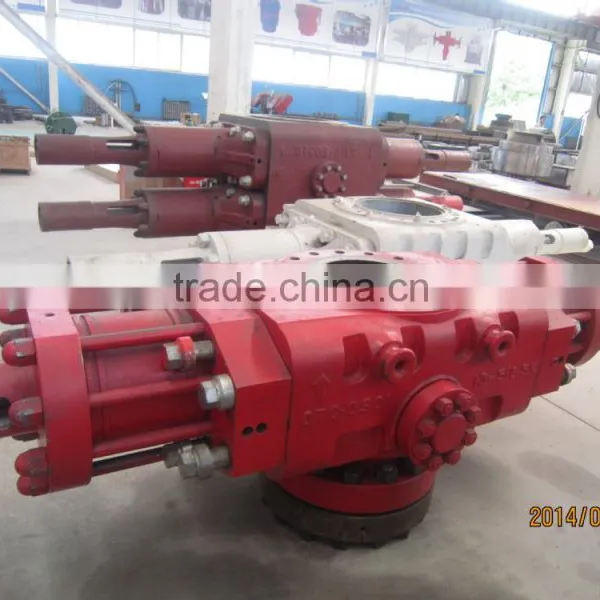

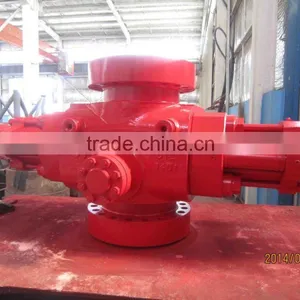

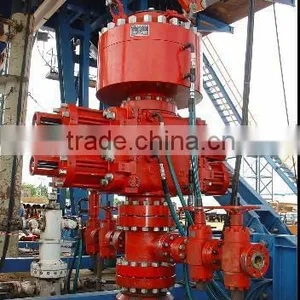

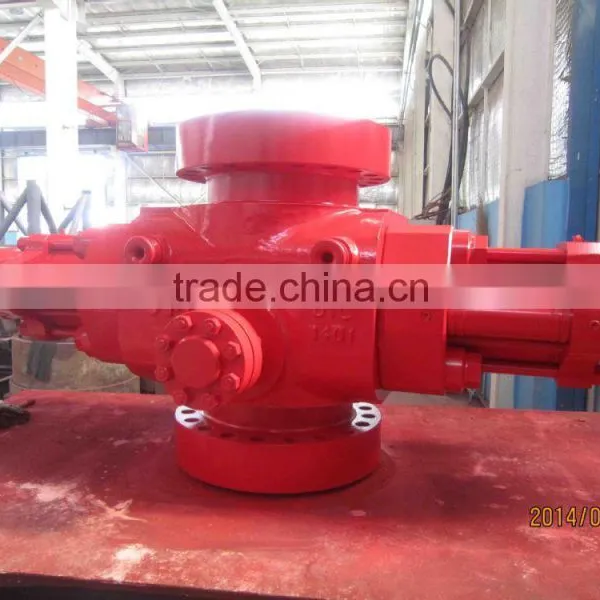

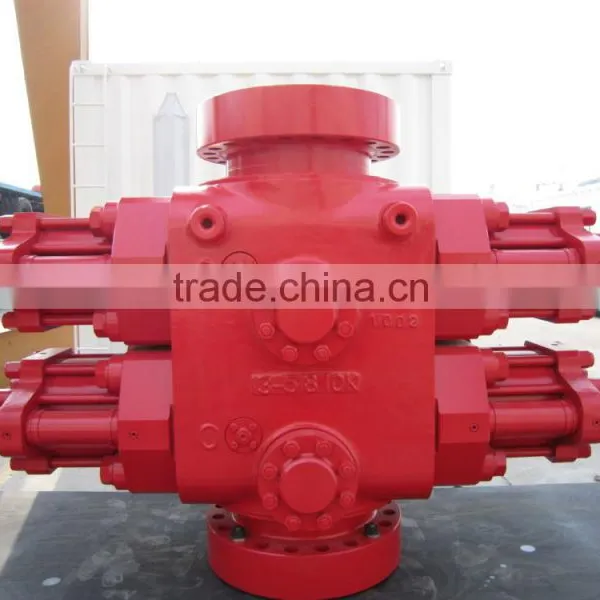

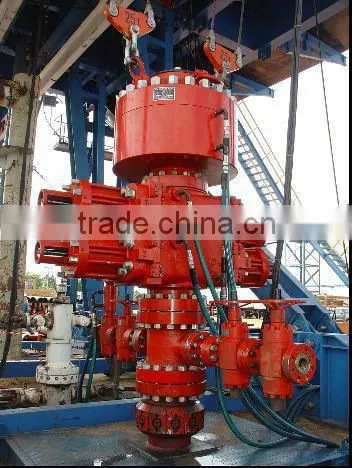

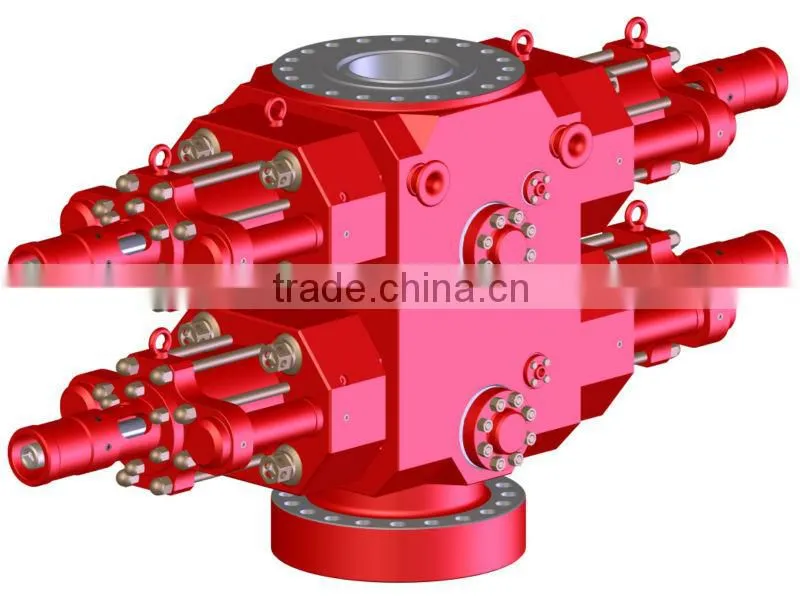

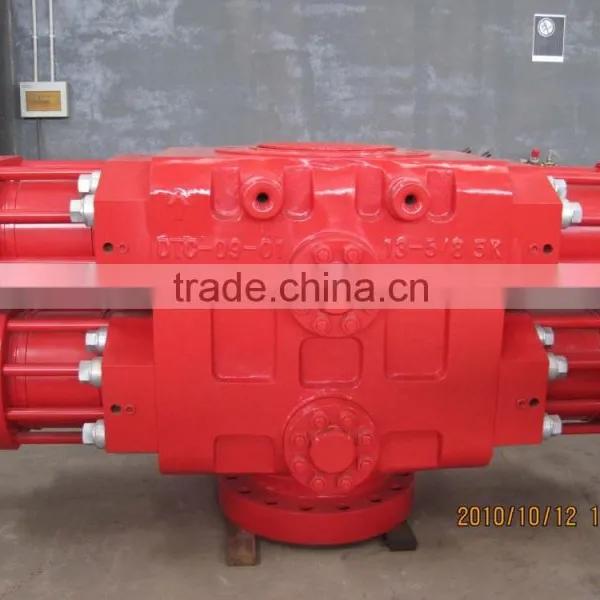

13 5/8"5000PSI blowout preventer(BOP) for oil field drilling rigs
- 10 Set / Sets per Month
- Tianjin xingang port
- T/T
You May Like
-
well control blowout preventer/Annular element/packing unit
-
Hydril type 29 1/2"500PSI Annular BOP (Diverter) for oil Jack up rig
-
Cameron U type 13 5/8'' 15000psi BOP stack for oil Jack up rig
-
Double Ram BOP for Land Rig (onshore or offshore jack up)
-
Single Ram BOP for Land Rig
-
API Spe.16A 13 5/8'' 5000psi Annular BOP
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Place of Origin | Hebei, China | Brand Name | DTC | |
| Model Number | 13 5/8"5000PSI double Ram BOP | Usage | Ore | |
| Certification | API 16A | Warranty | 12months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
wooden case or according to custemer"s requirement.
Product Description
13 5/8"5000PSI blowout preventer(BOP) for oil field drilling rigs
>>The features are as follows:
1 Not only the pipe rams and blind rams but also the variable bore ram and shear rams are available without any structure change.
2. it’s easy and convenient on-site to open the bonnets by hydraulic pressure.
3. The outlets on the both sides of the body make the operation on site flexible.
4. Two kinds of locking system could be chosen: the manual locking system and the automatic hydraulic locking system.
5. The pressurized self-sealing sealing mechanism is used between the body and bonnets, so it’s not necessary to apply too much pretightening force to secure the reliability of sealing.
6. it’s very convenient to lift and transport the BOPs with the four lifting rods.
7. The new sealing mechanism of ram shaft secures the sealing reliability under the high pressure.
8. The ring grooves of flanges are all lined with the corrosion resistant alloy.
>>The main specification and the parameters:
Item | Size | Specification |
1 | 9″-10000psi Double Ram BOP | Bore: 9″ Working pressure: 10,000psi Top connection: 9″-10000psi 6BX BX157 CRA Studded Bottom connection: 9″-10000psi 6BX BX157 CRA Flanged |
2 | 9″-10000psi Single Ram BOP | Bore: 9″ Working pressure: 10,000psi Top connection: 9-″10000psi 6BX BX157 CRA Studded Bottom connection: 9″-10000psi 6BX BX157 CRA Flanged |
3 | 11″-10000psi Double Ram BOP | Bore: 11″ Working pressure: 10,000psi Top connection: 11″-10000psi 6BX BX158 CRA Studded Bottom connection: 11″-10000psi 6BX BX158 CRA Flanged |
4 | 11″-10000psi Single Ram BOP | Bore: 11″ Working pressure: 10,000psi Top connection: 11″-10000psi 6BX BX158 CRA Studded Bottom connection: 11″-10000psi 6BX BX158 CRA Flanged |
5 | 11″-15000psi Single Ram BOP | Bore: 11″ Working pressure: 15,000psi Top connection: 11″-15000psi 6BX BX158 CRA Studded Bottom connection: 11”-15000psi 6BX BX158 CRA Flanged |
6 | 11″-15000psi Double Ram BOP | Bore: 11″ Working pressure: 15,000psi Top connection: 11″-15000psi 6BX BX158 CRA Studded nBottom connection: 11″-15000psi 6BX BX158 CRA Flanged |
7 | 13 5/8″-10000psi Double Ram BOP | Bore: 13 5/8″ Working pressure: 10,000psi Top connection: 13 5/8″-10000psi 6BX BX159 CRA Studded Bottom connection: 13 5/8″-10000psi 6B XBX159 CRA Flanged |
8 | 13 5/8″-10000psi Single Ram BOP | Bore: 13 5/8″ Working pressure: 10,000psi Top connection: 13 5/8″-10000psi 6BX BX159 CRA Studded Bottom connection: 13 5/8″-10000psi 6BX BX159 CRA Flanged |
9 | 13 5/8″-15000psi Single Ram BOP | Bore: 13 5/8″ Working pressure: 15,000psi Top connection: 13 5/8″-15000psi 6BX BX159 CRA Studded Bottom connection: 13 5/8″-15000psi 6BX BX159 CRA Flanged |
10 | 13 5/8″-15000psi Double Ram BOP | Bore: 13 5/8” Working pressure: 15,000psi Top connection: 13 5/8″-15000psi 6BX BX159 CRA Studded Bottom connection: 13 5/8″-15000psi 6BX BX159 CRA Flanged |
Company Profile
Drilltech Manufacturing Co., LTD is a company focus on manufacturing Diverter(JACK-UP and Semi-submersible),Blowout preventer, Hydraulic disc brake and Automatic driller unit(VFD\SCR). We have API, ISO , ABS(American Bureau of Shipping), RMRS(Russian Register of Shipping) Lloyd's Register Classification Society(UK), Lloyd's Register Classification Society(Germany), Industrial and Engineering Inspection co of IRAN and the Russian Technical Supervision acceptance.
