Single Ram BOP for Land Rig
- 0 per Month
- Tianjin Port
- T/T
Product Details
Type: | Core Drilling Rig | Place of Origin: | Hebei, China | ||
Brand Name: | Drilltech | Model Number: | 13 5/8"5000PSI FZ35-35 | Usage: | Other, oil well |
Weight: | 7000KG | Certification: | API 16A | Warranty: | 12month |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
According to customer package
Product Description

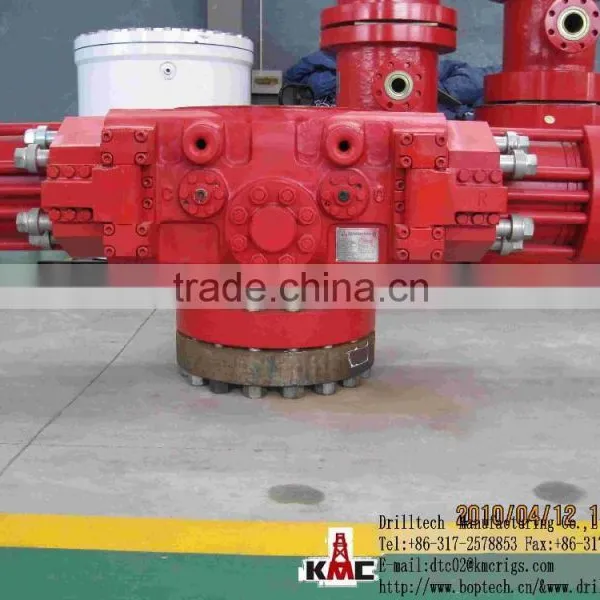

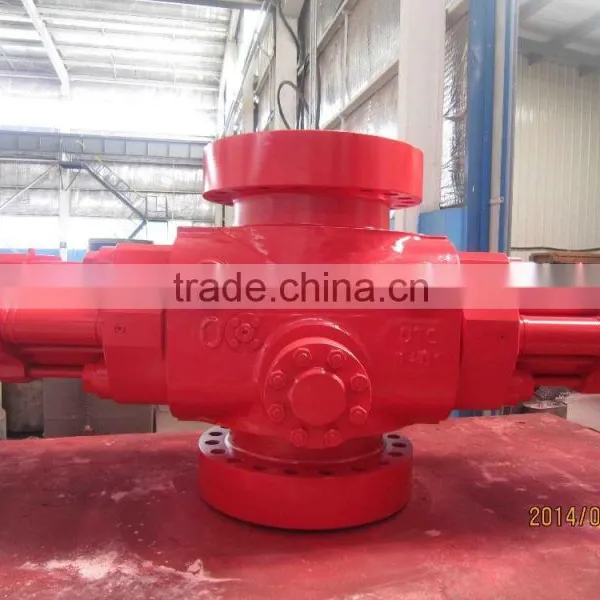

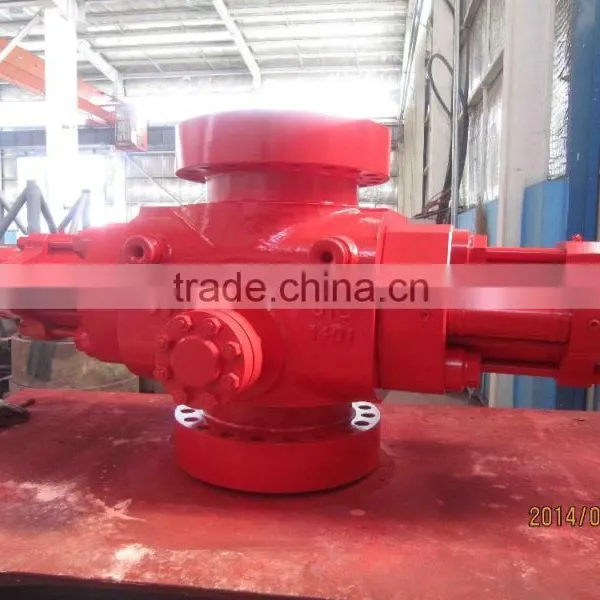

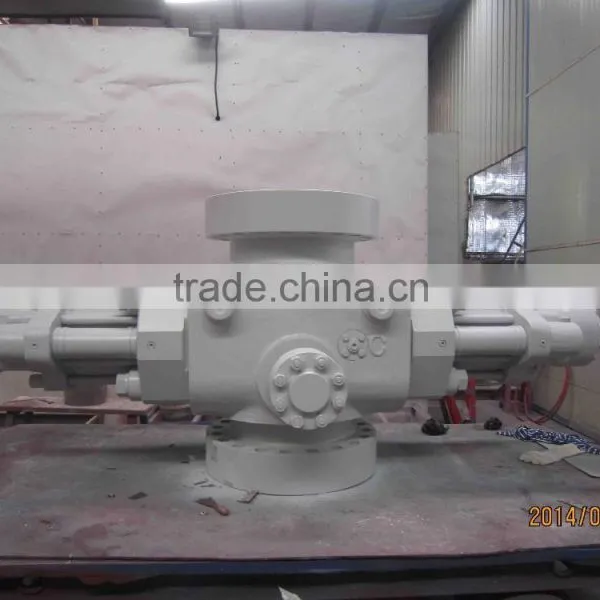

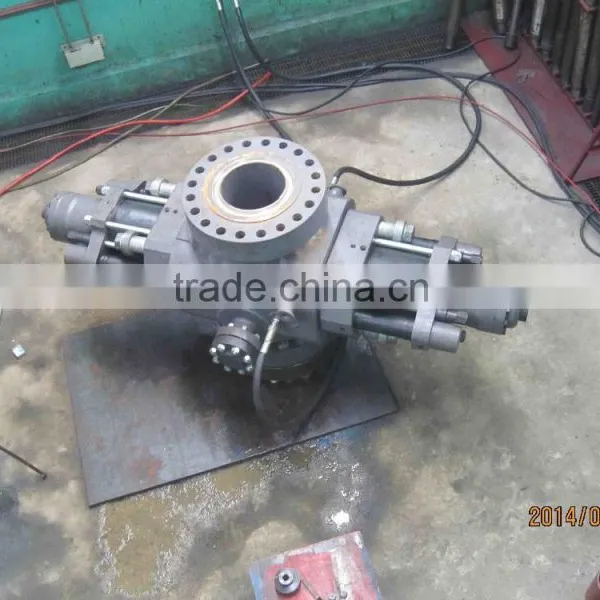

Single Ram BOP for Land Rig
>>The features are as follows:
1 Not only the pipe rams and blind rams but also the variable bore ram and shear rams are available without any structure change.
2. Matched-manufacturing isn't necessary for thr bonnets and body, so the discrepancy could be eliminated by the structure. And it's convenient for the maintenance in the future.
3. The outlets on the both sides of the body make the operation on site flexible.
4. Three kinds of locking system could be chosen: the internal manual locking system, the outside manual locking system and the automatic hydraulic locking system.
5. The pressurized self-sealing sealing mechanism is used between the body and bonnets, so it’s not necessary to apply too much pretightening force to secure the reliability of sealing.
6. it’s very convenient to lift and transport the BOPs with the four lifting rods.
7. The new sealing mechanism of ram shaft secures the sealing reliability under the high pressure.
8. The ring grooves of flanges are all lined with the corrosion resistant alloy.
>>The main specification and the parameters:
Item | Size | Specification |
1 | 9" 3000psi Double Ram BOP | Bore:9" Working Pressure: 3000psi Top connection: 9" 3000psi 6B R49 CRA studded Bottom connection:9" 3000psi 6B R49 CRA Flanged |
2 | 9" 3000psi Single Ram BOP | Bore:9" Working Pressure: 3000psi Top connection: 9" 3000psi 6B R49 CRA studded Bottom connection:9" 3000psi 6B R49 CRA Flanged |
3 | 9" 5000psi Double Ram BOP | Bore:9" Working Pressure: 5000psi Top connection: 9" 5000psi 6B R50 CRA studded Bottom connection:9" 5000psi 6B R50 CRA Flanged |
4 | 9" 5000psi Single Ram BOP | Bore:9" Working Pressure: 5000psi Top connection: 9" 5000psi 6B R50 CRA studded Bottom connection:9" 5000psi 6B R50 CRA Flanged |
5 | 9" 10000psi Double Ram BOP | Bore:9" Working Pressure: 10000psi Top connection: 9" 10000psi 6B×B× 157 CRA studded Bottom connection:9" 10000psi 6B×B×157 CRA Flanged |
6 | 9" 10000psi Single Ram BOP | Bore:9" Working Pressure: 10000psi Top connection: 9" 10000psi 6B×B× 157 CRA studded Bottom connection:9" 10000psi 6B×B×157 CRA Flanged |
7 | 11" 3000psi Double Ram BOP | Bore:11" Working Pressure: 3000psi Top connection: 11" 3000psi 6B R53 CRA studded Bottom connection:11" 3000psi 6B R53 CRA Flanged |
8 | 11" 3000psi Single Ram BOP | Bore:11" Working Pressure: 3000psi Top connection: 11" 3000psi 6B R53 CRA studded Bottom connection:11" 3000psi 6B R53 CRA Flanged |
9 | 11" 5000psi Double Ram BOP | Bore:11" Working Pressure: 5000psi Top connection: 11" 5000psi 6B R54 CRA studded Bottom connection:11" 5000psi 6B R54 CRA Flanged |
10 | 11" 5000psi Single Ram BOP | Bore:11" Working Pressure: 5000psi Top connection: 11" 5000psi 6B R54 CRA studded Bottom connection:11" 5000psi 6B R54 CRA Flanged |
11 | 11" 10000psi Double Ram BOP | Bore:11" Working Pressure: 10000psi Top connection: 11" 10000psi 6B×B× 158 CRA studded Bottom connection:11" 10000psi 6B×B×158 CRA Flanged |
12 | 11" 10000psi Single Ram BOP | Bore:11" Working Pressure: 10000psi Top connection: 11" 10000psi 6B×B× 158 CRA studded Bottom connection:11" 10000psi 6B×B×158 CRA Flanged |
13 | 13 5/8" 3000psi Double Ram BOP | Bore:13 5/8" Working Pressure: 3000psi Top connection: 13 5/8" 3000psi 6B R57 CRA studded Bottom connection:13 5/8" 3000psi 6B R57 CRA Flanged |
14 | 13 5/8" 3000psi Single Ram BOP | Bore:13 5/8" Working Pressure: 3000psi Top connection: 13 5/8" 3000psi 6B R57 CRA studded Bottom connection:13 5/8" 3000psi 6B R57 CRA Flanged |
15 | 13 5/8" 5000psi Double Ram BOP | Bore:13 5/8" Working Pressure: 5000psi Top connection: 13 5/8" 5000psi 6B×B× 160 CRA studded Bottom connection:13 5/8" 5000psi 6B×B× 160 CRA Flanged |
16 | 13 5/8" 5000psi Single Ram BOP | Bore:13 5/8" Working Pressure: 5000psi Top connection: 13 5/8" 5000psi 6B×B× 160 CRA studded Bottom connection:13 5/8" 5000psi 6B×B× 160 CRA Flanged |
17 | 13 5/8" 10000psi Double Ram BOP | Bore:13 5/8" Working Pressure: 10000psi Top connection: 13 5/8" 10000psi 6B×B× 159 CRA studded Bottom connection:13 5/8" 10000psi 6B×B×159 CRA Flanged |
18 | 13 5/8" 10000psi Single Ram BOP | Bore:13 5/8" Working Pressure: 10000psi Top connection: 13 5/8" 10000psi 6B×B× 159 CRA studded Bottom connection:13 5/8" 10000psi 6B×B×159 CRA Flanged |
19 | 20 3/4" 3000psi Double Ram BOP | Bore:20 3/4" Working Pressure: 3000psi Top connection: 20 3/4" 3000psi 6B R74 CRA studded Bottom connection:20 3/4" 3000psi 6B R74 CRA Flanged |
20 | 20 3/4" 3000psi Single Ram BOP | Bore:20 3/4" Working Pressure: 3000psi Top connection: 20 3/4" 3000psi 6B R74 CRA studded Bottom connection:20 3/4" 3000psi 6B R74 CRA Flanged |
21 | 21 1/4" 2000psi Double Ram BOP | Bore:21 1/4" Working Pressure: 2000psi Top connection: 21 1/4" 2000psi 6B R73 CRA studded Bottom connection:21 1/4" 2000psi 6B R73 CRA Flanged |
Company Profile
Drilltech Manufacturing Co., LTD is a company focus on manufacturing Diverter(JACK-UP and Semi-submersible),Blowout preventer, Hydraulic disc brake and Automatic driller unit(VFD\SCR). We have API, ISO , ABS(American Bureau of Shipping), RMRS(Russian Register of Shipping) Lloyd's Register Classification Society(UK), Lloyd's Register Classification Society(Germany), Industrial and Engineering Inspection co of IRAN and the Russian Technical Supervision acceptance.
