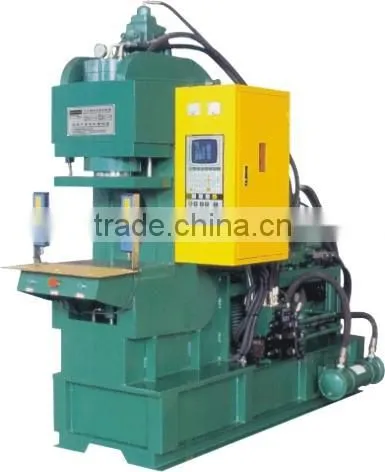

Plastic Injection Machine
| MODEL | Unit | JYC-350-D(DM) | |||
| Injection System | Screw Diameter | mm | 32 | 38 | 42 |
| Lnjection Pressure | kg/cm² | 2050 | 1454 | 1190 | |
| Max.Shot Weight(PS)(PS) | g | 103 | 144 | 177 | |
| OZ | 3.6 | 5.1 | 6.2 | ||
| Screw Stroke | mm | 140 | |||
| Screw Speed Max | rpm | 0-175 | |||
| nozzle contact force | tons | 3.9 | |||
| Nozzle Retraction Stroke | mm | 130 | |||
| Number or Temperature Control | - | 3 | |||
| Material Hopper Capacity | liters | 25 | |||
| clamping system | Clamping Force | tons | 45 | ||
| Platen Size | mm | 420×270 | |||
| Distance Between Tie Bare | mm | - | |||
| Min.Mold Height | mm | 175 | |||
| Opening Stroke | mm | 200 | |||
| Max.Open Daylight | mm | 375 | |||
| Ejector Force | tons | 1.3 | |||
| Ejector Stroke | mm | 75 | |||
| slipform system | Slide StrOke | mm | 270/480 | ||
| Rotary Station | - | - | |||
| Rotary Table Diameter | mm | - | |||
| Station Clearance | mm | ±0.02 | |||
| Hydraulic power system | Max.Hydraulic Pressure | kg/cm² | 140 | ||
| Pump Output | liters/min | 43 | |||
| Oil.Reservoir Capacity | liters | 200 | |||
| Cooling Water Consumption | liters/hr | 800-1000 | |||
| Pump Motor Power | kw | 7.5 | |||
| Barrel Heating Power | kw | 5.5 | |||
| Total Wattage | kw | 13 | |||
| Others | Machine Weight | tons | 3.1/3.5 | ||
| Machine Dimensions | m | 2.8*1.05*2.05 | |||
The machines are applied in: Water treatment, Eelectronic spare parts, power supply pin, auto spare parts, medical products, stationary products, sports products, golf ball, eye glasses, ramose wire, air cleaner, multi-color shoes’ back, glass over mold, slide fastener, BMC products, metal powder spare parts, silicon products and rubber products, ect.
China National Building Materials Group Corporation (CNBM) was established in 1984 with approval of the State Council, and then became a Central Enterprise under direct supervision of State-owned Assets Supervision and Administration Commission of the State Council in 2003. It is in charge of the administrative affairs in China building materials industry. By the end of 2013, CNBM’s total assets exceeded RMB 360 billion, with over 130,000 employees, and 20 companies under direct management with 100% share control or majority control, among which 6 were listed companies, including 2 oversea listed. On July 7th, 2014, CNBM with revenue USD 41028 million, was ranked 267th on the ”World Top 500 Enterprises” by Fortune Magazine.
CNBM International Corp., established in 2004, is the business entity for trade and logistics of CNBM GROUP. It is in charge of the export of finished products as well as import of raw materials for its sister companies under the group. By the end of 2014, we have more than 30 business departments for different products and over 10 oversea offices for sales and customer service. CNBM –quality bar and special steel products regard quality as the essential factor leading to successful business. All the products are produced under the quality management system and tested by CNBM. Through years of effort, CNBM-quality bar and special steel products have built up great reputation in quality and service among customers all over the world.
1.Reply your enquiry in 24 working hours,any time you can contact me
2.OEM,buyer design, buyer label services provided
3.Exclusive and unique solution can be provide to our customer by our well trained and professional engineers and staffs
4.we can provide free sample for your check
5.we have the certification of ISO9001
6.Special discount and protection of sales area provided to our distributor
7.Timely delivery
8.Good after-sale service
