Specifications
Black oxide finish pipe nipple1.carbon steel
2.galvanized/black
3.best price High quality
4.ISO certificated

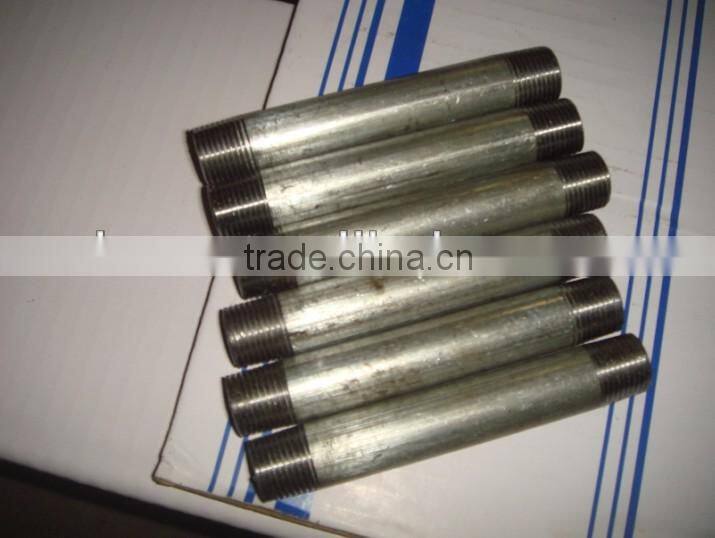

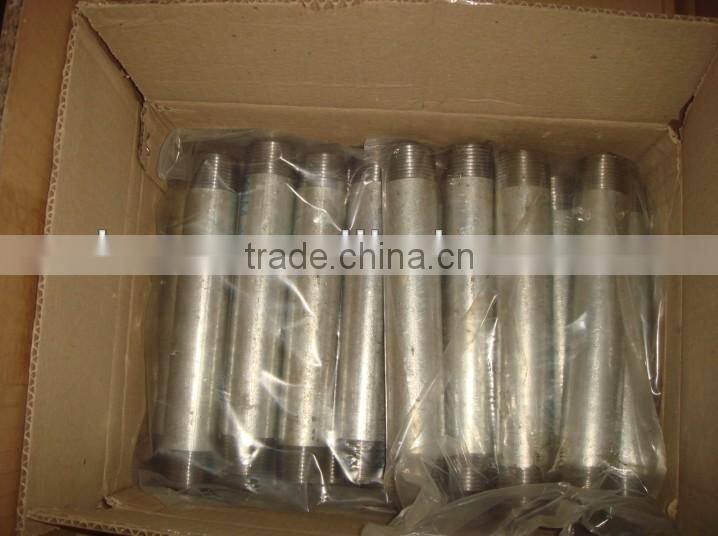

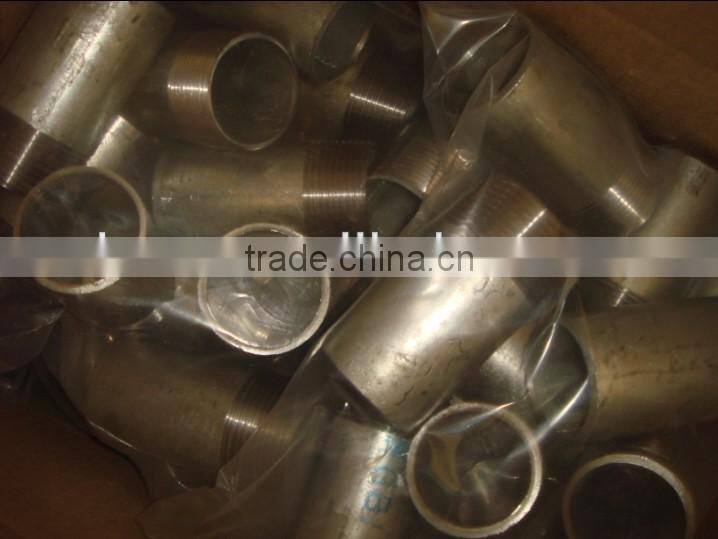

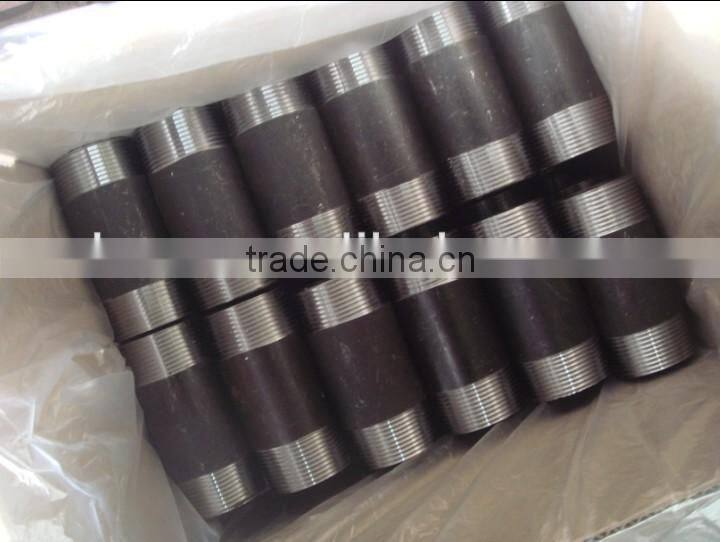

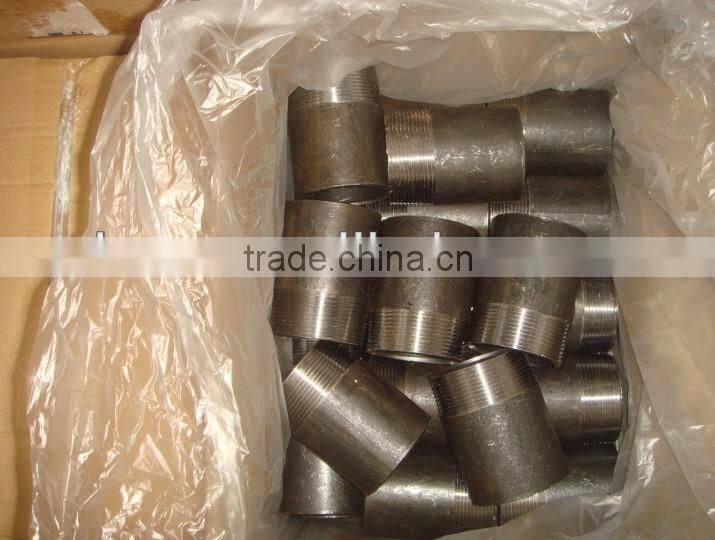

Black oxide finish pipe nipple
O.D.: 1/8”-6”
Length: 3/4”-24”, 19mm-500mm, or as per customer’s request
Thickness: SCH10, SCH20, SCH40, SCH80, SCH160
Finishing: Galvanized, Black, Epoxy
Thread: ISO 7/1, DIN 2999, ANSI B1.20.1
Standard: BS EN10241, ASTM A733, DIN 2982
Pipe: BS 1387, ASTM A53/A106, DIN 2440
Type: Close Nipple, Long Nipple, Barrel Nipple, Running Nipple
Pipe Material: Carbon Steel Welding Pipe, Seamless Steel Pipe,
Stainless Steel Pipe
Mechanical Properties:
Tensile Strength ≥320N/mm2
Yield Strength ≥195N/mm2
Elongation≥ 20%
Hydraulic Test:
Working Pressure: Max 1.5Mpa
Test Pressure: Max 2.5Mpa
O.D. |
1/8”-6” |
Length |
3/4”-24”; 19mm-500mm; Or as per customer’s request |
Thickness |
SCH10 SCH20 SCH40 SCH80 SCH160; CLASS A, CLASS B, CLASS C |
Surface |
Hot Dipped Galvanized, Electro Galvanized, Natural finished, Chemical black |
Threads |
DIN, BS, NPT, Metric, BSPT, BSP, NPS (ISO7/1, DIN 2999, ANSI B1.20.1) |
Dimension |
BS EN10241, ASTM A733, DIN2982 |
Type |
Close Nipple, Short Nipple, Shoulder nipple, Long Nipple, Running Nipple, Barrel Nipple etc |
Usage |
Convey Water, Oil, Gas, Steam and so on |
Mechanical Properties |
Tensile Strength ≥ 320N/mm2 Yield Strength≥ 195N/mm2 Elongation ≥20% |
Hydraulic Test |
Working Pressure: Max 1.5MPa Test Pressure: Max 2.5MPa |
Temperature: |
-20 ~ 120 °c |
Production Capacity |
60000 MT per Year |
Lead Time |
Within 30 Days if enquiry not more than 10x20' Container |
Factory Certificate |
ISO, SGS, ITS, BSI, Famous Brand Enterprise in Hebei, China |
Successful case |
S.A. World Cup Gym Supplier |
