1 Product details:
DTII belt conveyor is the most popular transport models now,Its characteristics are large volume, strong climbing ability and convenient maintenance, etc, It can not only meet the standard of leveling, lifting and decline transportation requirements, but also the convex arcs, concave arc and linear combination transportation methods. The belt produced by Goldensun can be operated in the temperature situation ranging from -20°C to +50°C. There are no relative motion between materials and conveyor belt, the damage to materials can be avoid.
Many national patents are owned by Golden sun: belt conveyor smart adjustable deviation device, non-power flutter sweeper of large angle belt conveyor, fixed unloading device, smart splitting and unloading device and so on.
Our company can design the system to meet your requirement,do hope we can have a win-win cooperation in the near future.
2 Technical Parameters:
Form 1
| Belt width (mm) |
500 | 650 | 800 | 1000 | 1200 | 1400 |
| Belt speed (/h) | Conveying quantity(t/s) | |||||
| 0.8 | 69 | 127 | 198 | 324 | - | - |
| 1.0 | 87 | 159 | 248 | 405 | 593 | 825 |
| 1.25 | 108 | 198 | 310 | 507 | 742 | 1032 |
| 1.60 | 139 | 254 | 397 | 649 | 951 | 1321 |
| 2.00 | 174 | 318 | 496 | 811 | 1188 | 1652 |
| 2.50 | 217 | 397 | 620 | 1014 | 1486 | 2065 |
| 3.15 | - | - | 871 | 1278 | 1872 | 2602 |
| 4.00 | - | - | - | 1622 | 2377 | 3304 |
| 4.50 | - | - | - | - | 2674 | 3718 |
| 5.00 | - | - | - | - | 2971 | 4130 |
| 5.60 | - | - | - | - | - | - |
| 6.50 | - | - | - | - | - | - |
Form 2
| Belt width (mm) |
1600 | 1800 | 2000 | 2200 | 2400 |
| Belt speed (/h) | Conveying quantity(t/s) | ||||
| 0.8 | - | - | - | - | - |
| 1.0 | - | - | - | - | - |
| 1.25 | - | - | - | - | - |
| 1.60 | - | - | - | - | - |
| 2.00 | 2186 | 2795 | 3470 | - | - |
| 2.50 | 2733 | 3494 | 4338 | - | - |
| 3.15 | 3444 | 4403 | 5466 | 6843 | 8289 |
| 4.00 | 4373 | 5591 | 6941 | 8690 | 10526 |
| 4.50 | 4920 | 6291 | 7808 | 9776 | 11842 |
| 5.00 | 5466 | 6989 | 8676 | 10863 | 13158 |
| 5.60 | 6122 | 7829 | 9717 | 12166 | 14737 |
| 6.50 | - | 9083 | 11277 | 14120 | 17104 |

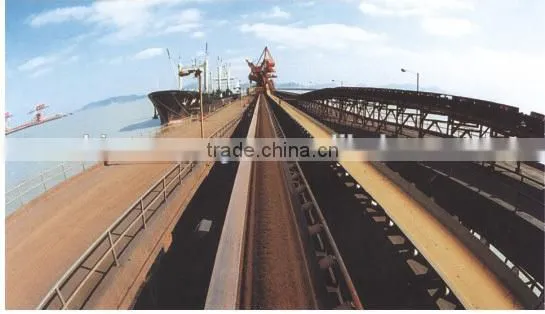

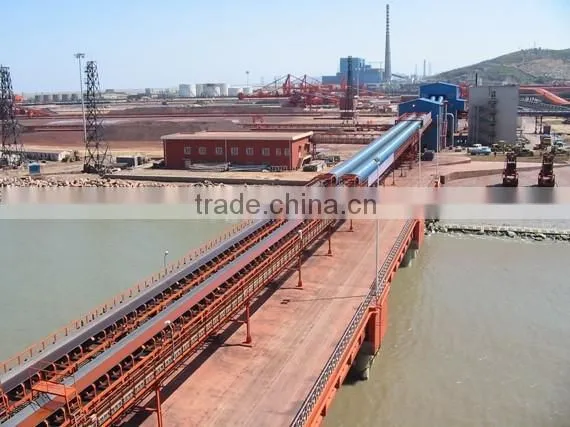

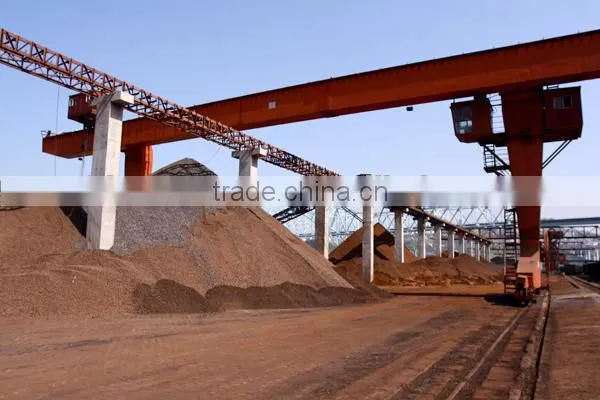

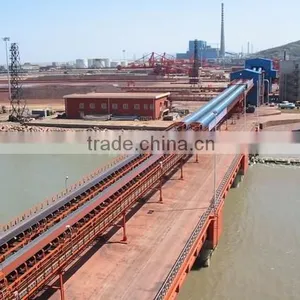

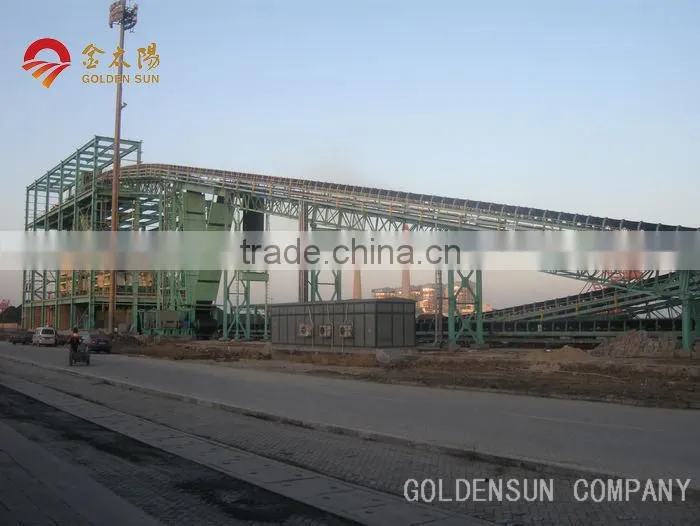

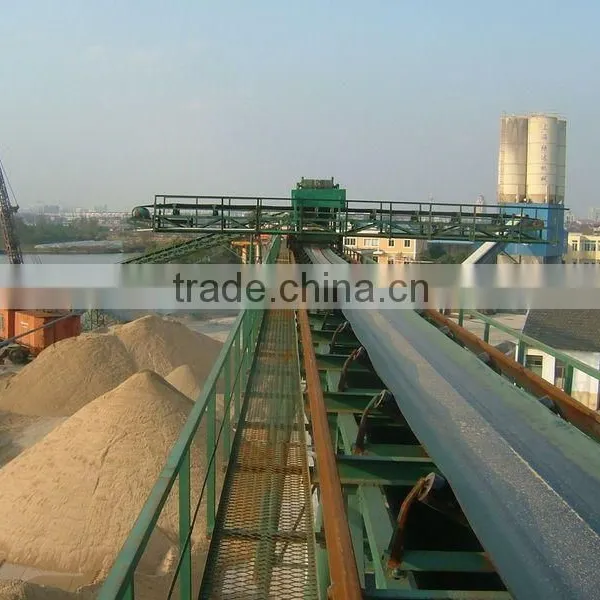

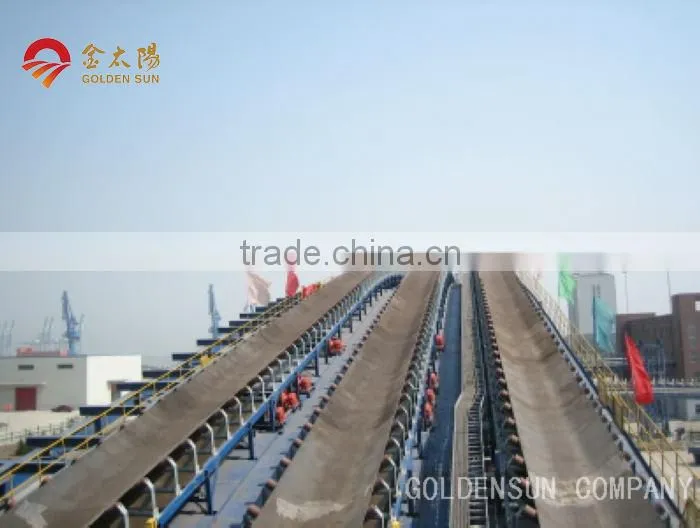

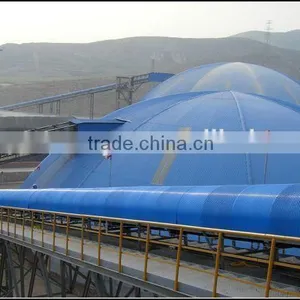

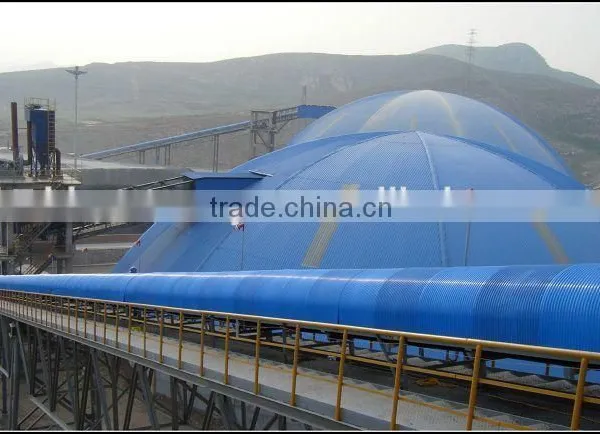

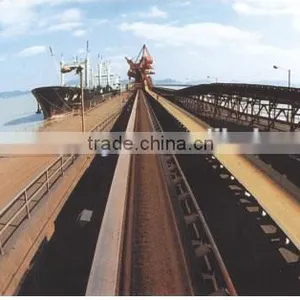

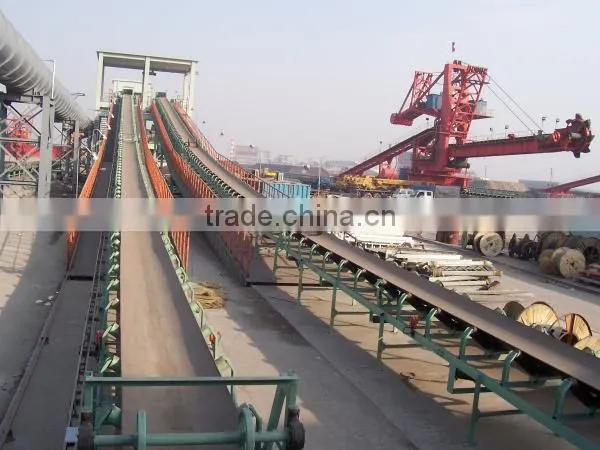

3 Project Exhibition:

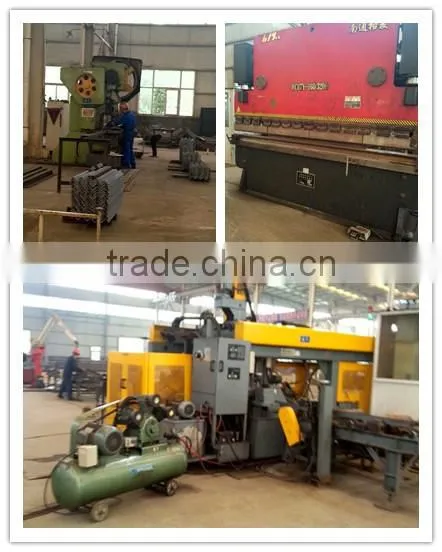

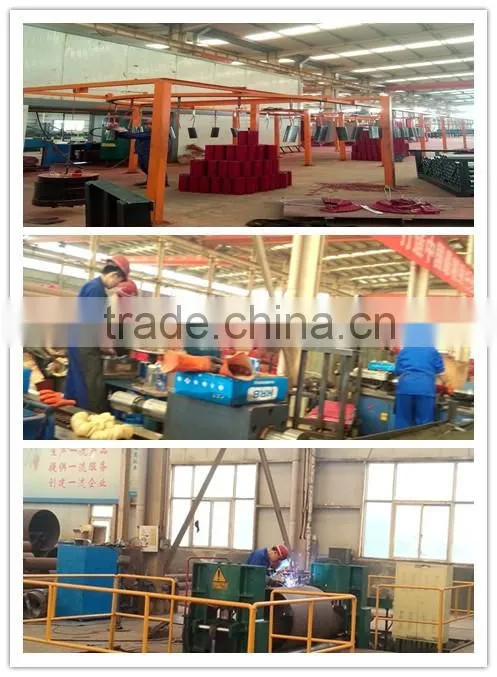

1 workshop

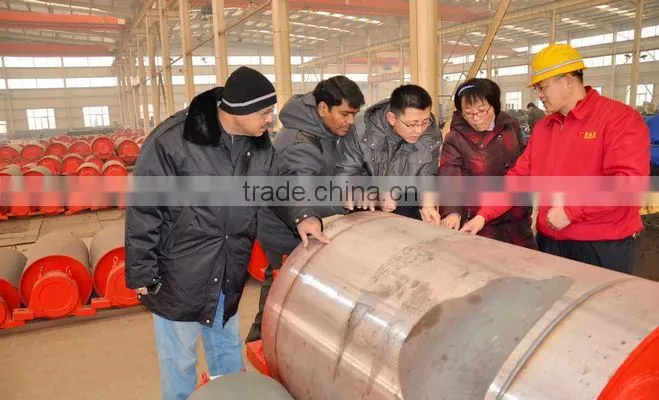

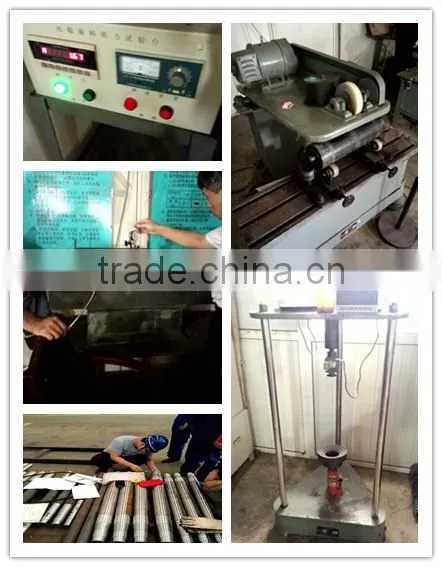

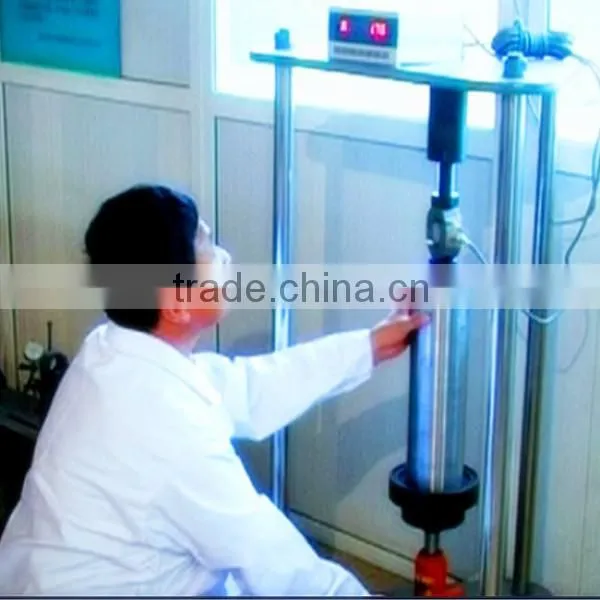

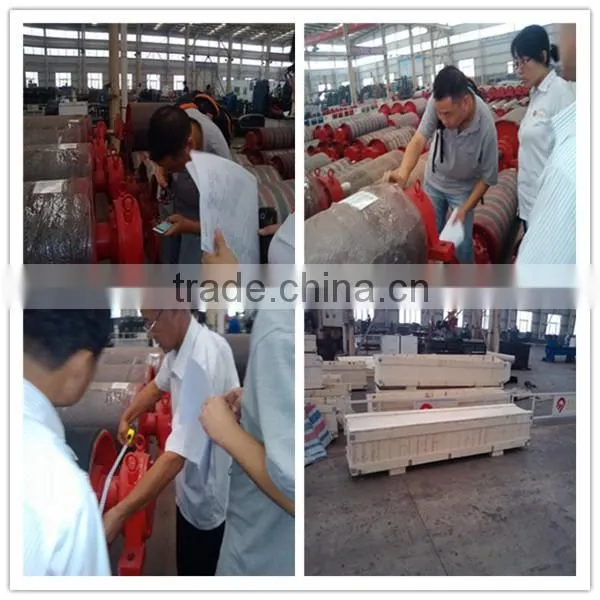

2 testing

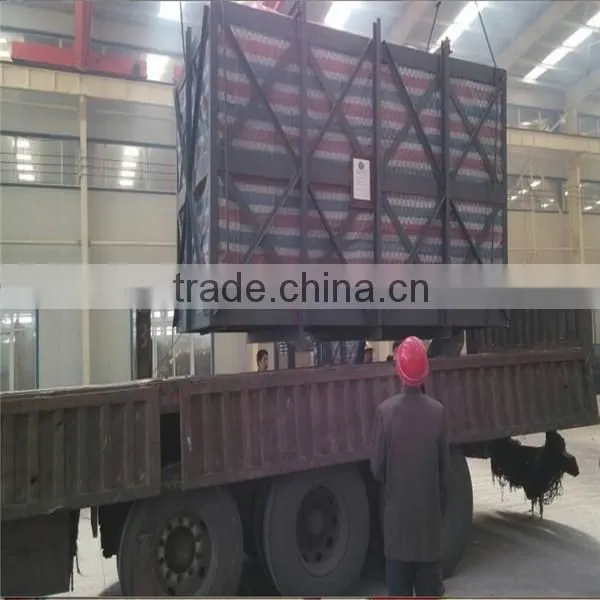

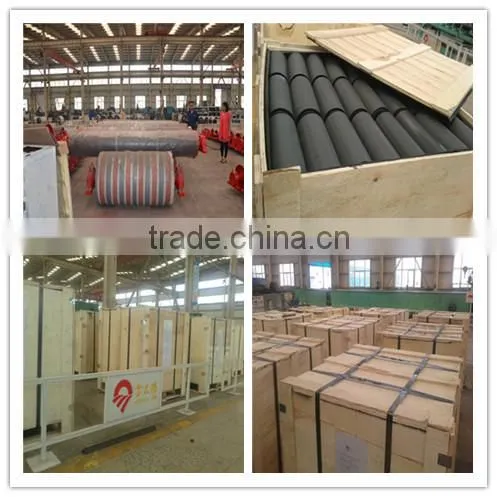

1.Standard export packing;
2.Standard wooden package box or steel frame etc;
3. As customers' requirements.

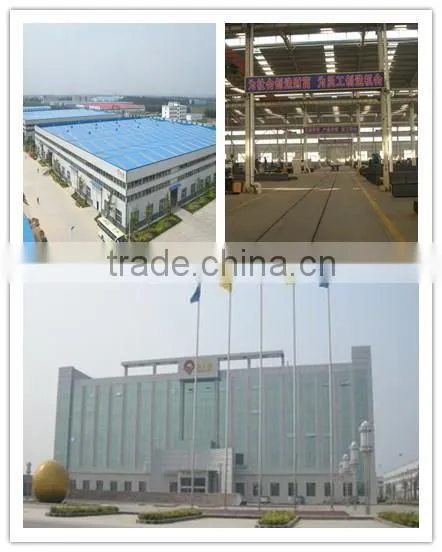

1. Goldensun Conveying Machinery&Engineering Co.,Ltd have 78 engineering technologist and 7 senior engineers,who can design the whole conveyor systems based on the terrain and use,now we have a number of patented products and innovative technology.
2. We have deployed enough inspectors with ISO certificate to carry out the inspection strictly according to the international standard to make sure that all conveyors will meet customers’ quality requirements.
3. Before one order transport by sea,we will provide good packaging to protect the components become rusty,all our customer is very satisfy about that.
4. If what our customer need is conveyor system,we will offer the assembly drawing and user guide,if the project is big and the equipment is intricate,our technical engineer will even arrive the site abroad,teach our customer how to assembly.
