1.Product details:

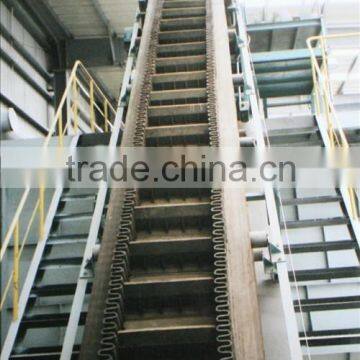

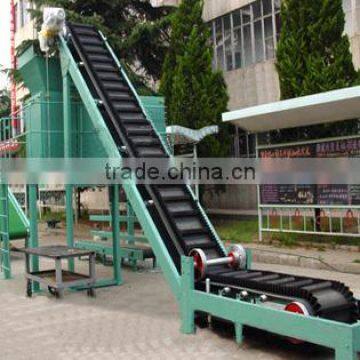

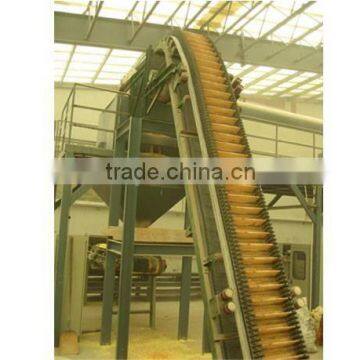

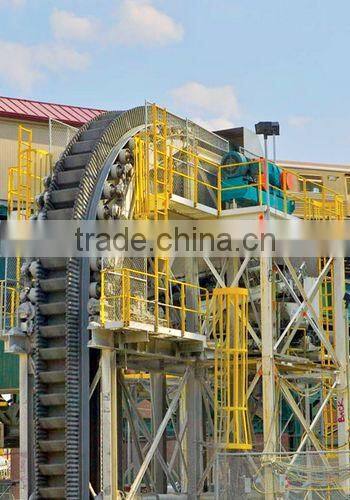

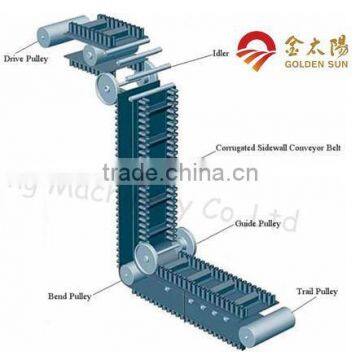

Corrugated steep angle belt conveyor is mainly applied to the continuous steep conveying for the bulk materials, which adopt the conveying belts equipped with corrugated sidewalls and transverse diaphragms with the of products conveying tilting angle of 0°--90°(70° and blow preferred). This series of products are widely applied in the industries such as coal, grain, building materials, chemical, water and electricity, agriculture, port, and metallurgy, etc. It has the advantages of high reliability, energy saving and lifting the materials reliably and economically as the general belt conveyor conveys horizontally or at a small tilting angle.
2.Technical Parameters:
| Belt width (mm) |
Belt speed(m/s) |
Conveying quantity(m³/h) | ||||
| Tilt angle | ||||||
| 30° | 35° | 40° | 45° | 50° | ||
| 500 |
0.8,1.0,1.25,1.6,2.0 |
35 | 32 | 28 | 25 | 23 |
| 19 | 16 | 14 | 13 | 11 | ||
| 52 | 49 | 45 | 41 | 38 | ||
| 31 | 27 | 24 | 21 | 19 | ||
| 46 | 40 | 35 | 31 | 28 | ||
| 31 | 27 | 23 | 21 | 19 | ||
| 650 |
0.8,1.0,1.25,1.6,2.0 |
75 | 70 | 65 | 59 | 54 |
| 44 | 38 | 34 | 30 | 27 | ||
| 66 | 78 | 69 | 62 | 40 | ||
| 86 | 52 | 46 | 41 | 27 | ||
| 86 | 78 | 69 | 62 | 56 | ||
| 60 | 52 | 46 | 41 | 37 | ||
| 800 |
0.8,1.0,1.25,1.6,2.0,2.5 |
86 | 75 | 66 | 59 | 53 |
| 57 | 50 | 44 | 39 | 35 | ||
| 117 | 106 | 94 | 84 | 75 | ||
| 82 | 71 | 63 | 56 | 50 | ||
| 172 | 160 | 149 | 137 | 125 | ||
| 134 | 118 | 104 | 92 | 83 | ||

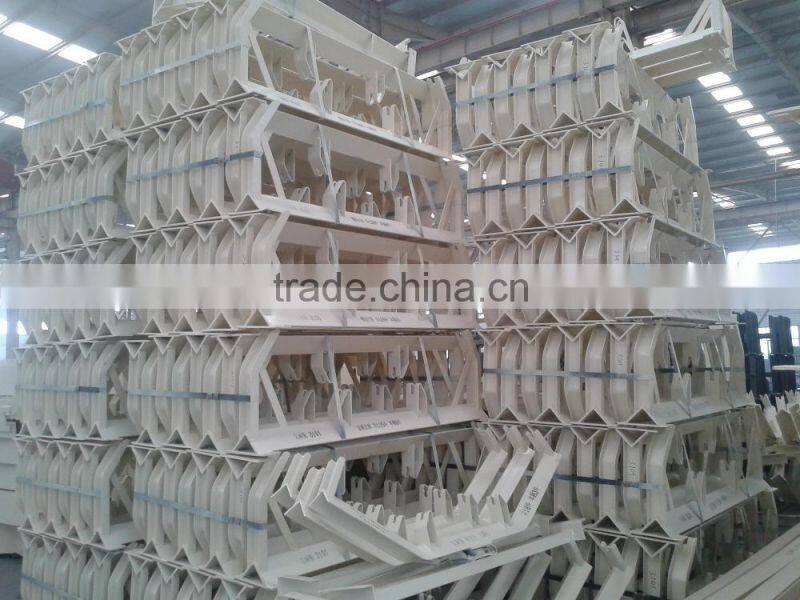

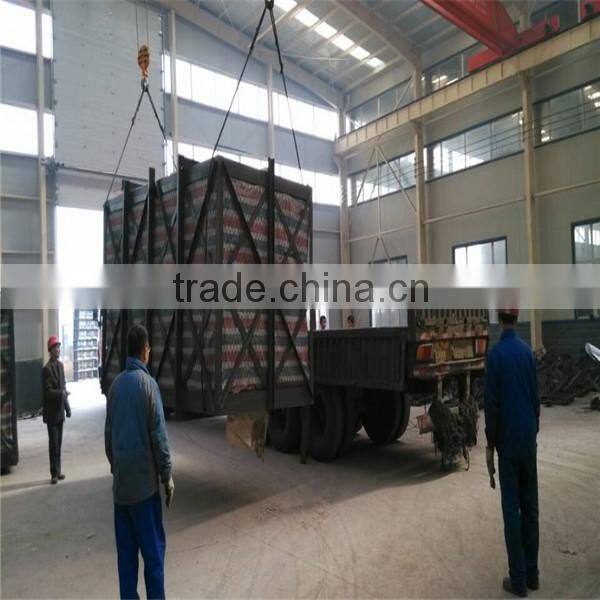

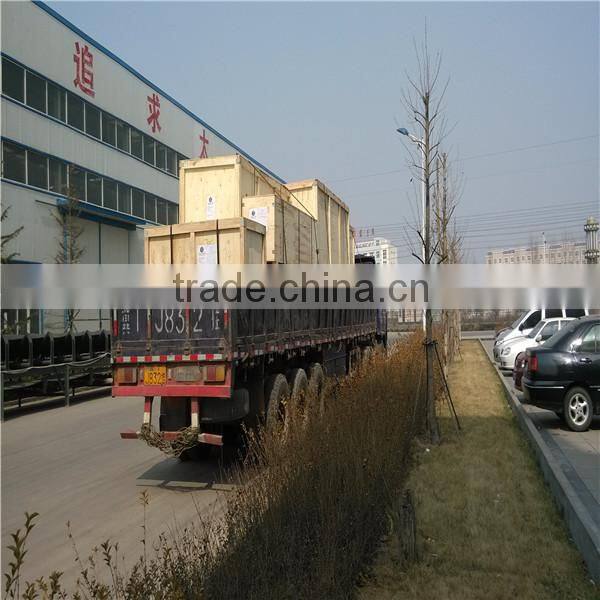

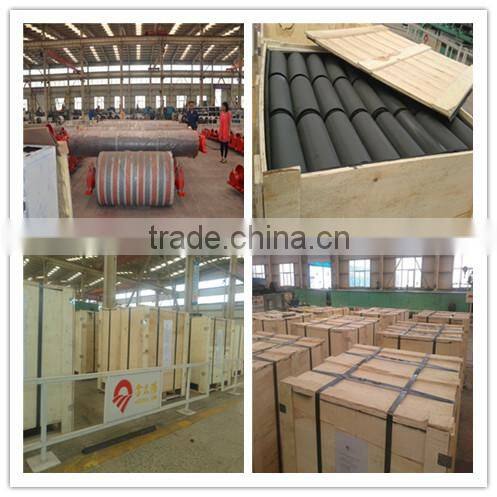

3.Packaging&shipping

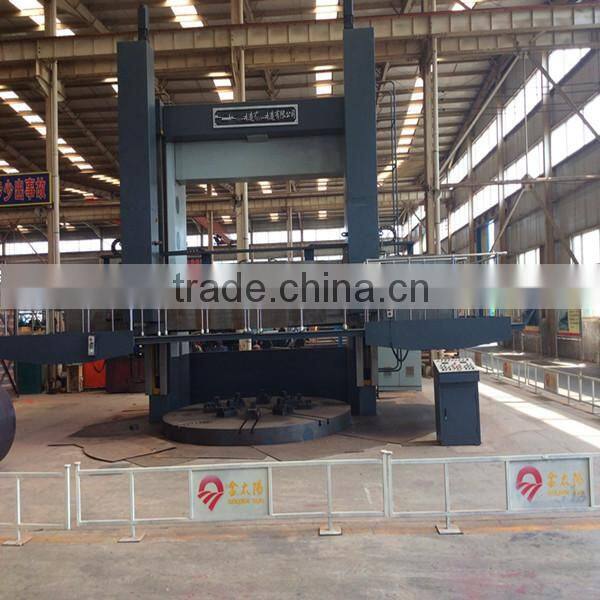

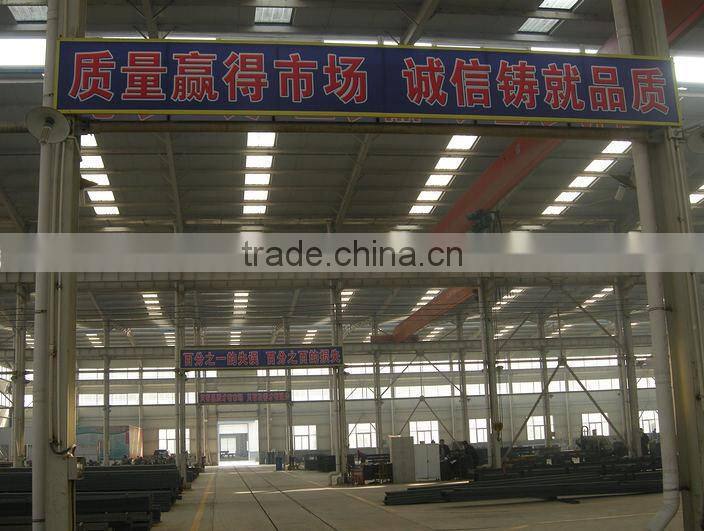

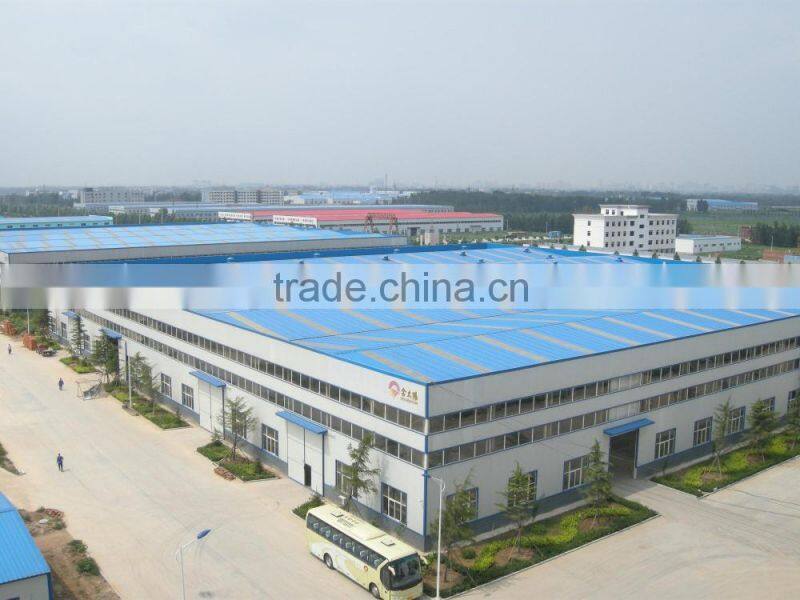

4.Our workshop
5.Our service:
1). Provide a professional consultant type serviceto our Client with optimized proposal and reasonable advices.
2). Real time service and reaction from basic engineering, manufacturing to construction, commission, operation, upgrading and retrofit your existing project.
3). Site technical guide and support.
4).Have offices in domestic and foreign country to ensure for our customers with reliable support from locations around the world.
5).Main equipment Brand: Motor-Siemens or ABB, Reducer-SEW or Flender, Bearing-SKF etc.
6).Quality assurance: our pulley shell are submerged-arc welding,welding seam 100 percent no damage and 25 percent X-ray scan examination,static balance test after assembly,the precision meet ISO standard and CE certificate.
After-sales services:
Goldensun product quality is very good,our guarantee period is one year. With the qualified and professional after-sale service team, who are experts in installation, check and repair .Goldensun supply the conveyor and component repair services. Advanced cutting, welding and repair methods are being used to ensure or exceed ISO9001 standards or customers' requirements.
