Help CenterCNC Compression Spring Machine GH-CNC428
Related Products
Specifications
1) Compression CNC spring forming machine;2) CNC spring forming machine with high speed;
3) Automatic spring forming machine.

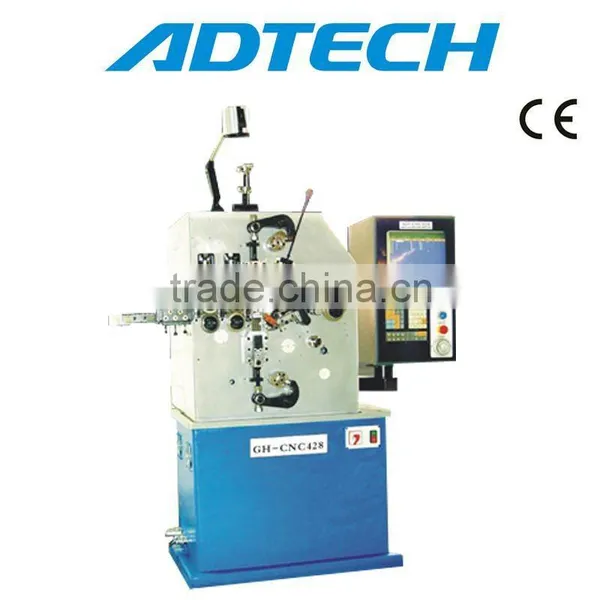

GH-CNC428 spring coiling machine Description:
1.GH-CNC428 spring coiling machine is a four-axis computerized compression spring making machine consisting of wire feeding axis, outside diameter axis, space axis and cutting tool axis. The four axes can work independently or synchronously.
2.The upper and lower blocks are driven by two motors independently for controlling the space and cutting tool. The two axes can be exchanged.
3.The space can be adjusted by two methods easily and flexibly: cam inclined knife and shaft pushing.
4The spring outside diameter can be adjusted easily by means of setting the program and the outside diameter axis is working independently.
5.This machine can manufacture the compression springs of any shape without adjusting the mechanical parts and absolutely avoid changing the cam plate.
6.This machine can manufacture various compression springs, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire molding.
Technical paremeters for 4-axis cnc compression spring machine GH-CNC428:
Model |
GH-CNC428 |
Axis |
4 Axis |
Diameter |
0.8~3.0mm |
Max Feeding Dia |
50mm |
Max Feeding Length |
unlimited |
Max production speed |
400RPM |
Probe |
2set |
Cam Servo Motor |
2.7kw |
Wire Feed Servo Motor |
2.0kw |
Axis Servo Motor |
2.0kw |
Coiling Axis |
2.0kw |
Power AC |
three-phase 380V |
Dimension |
1550 X 900 X 1900mm |
Weight |
900kg |
