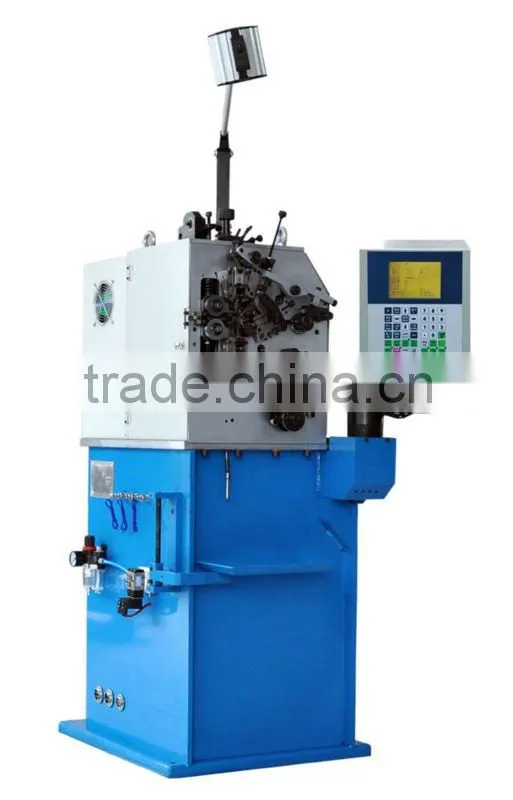

GH-CNC416 CNC Wire Forming Machine
US$ 1 - 1
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ADTECH
Model Number:
GH-CNC416
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Spring Coiling MachineGH-CNC416US$ 1 - 1MOQ: 1 Set -
Oil Seal Springs Making Machine GH-CNC416US$ 1 - 1MOQ: 1 Set
-
CNC Compression Spring Coiler GH-CNC2208US$ 1 - 1MOQ: 1 Set
-
Wire Forming Machine Manufacturers/spring MachineNegotiableMOQ: 1 Set
-
CNC Spring Machine GH-CNC2208US$ 1 - 1MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
ADTECH
Model Number
GH-CNC416
Specifications
1) Cheap CNC wire forming machine;2) Used to make wire forming machine;
3) High speed wire forming machine.
GH-CNC4164 Axes CNC Compression Spring MachineMaking Spring Example:

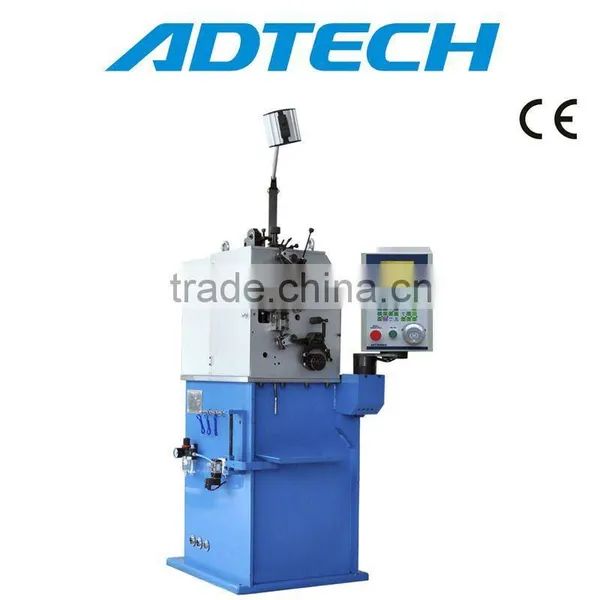

CNC spring machine GH-CNC416 description:
- GH-CNC416 CNC compression spring machine is a four-axis computerized compression spring making machine consisting of wire feeding axis,outside diameter axis, space axis and cutting tool axis. The four axes can work independently or synchronously.
- The upper and lower blocks are driven by two motors independently for controlling the space and cutting tool. The two axes can be exchanged.
- The space can be adjusted by two methods easily and flexibly: cam inclined knife and shaft pushing.
- The spring outside diameter can be adjusted easily by means of setting the program and the outside diameter axis is working independently.
- The machine can manufacture the compression springs of any shape without adjusting the mechanical parts and absolutely avoid changing the cam plate.
- The machine can manufacture various compression springs, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip springs as well as various simple wire molding.
Technical paremeters for CNC spring machine GH-CNC416 :
Model |
GH-CNC416 |
Axis |
4 Axis |
Diameter |
0.4~1.6mm |
Max Feeding Dia |
20mm |
Max Feeding Length |
unlimited |
Max production speed |
600RPM |
Probe |
2set |
Cam Servo Motor |
1.5kw |
Wire Feed Servo Motor |
1.0kw |
Axis Servo Motor |
1.0kw |
Coiling Axis |
1.0kw |
Power AC |
three-phase 380V |
Dimension |
1100 X 700 X 1660mm |
Weight |
450kg |
Relative products:
|
|
|
| GH-CNC2208 2-axis cnc compression spring machine | GH-CNC35 4/6-axis cnc universal spring machine | GH-CNC428 4-axis cnc compression spring machine |
