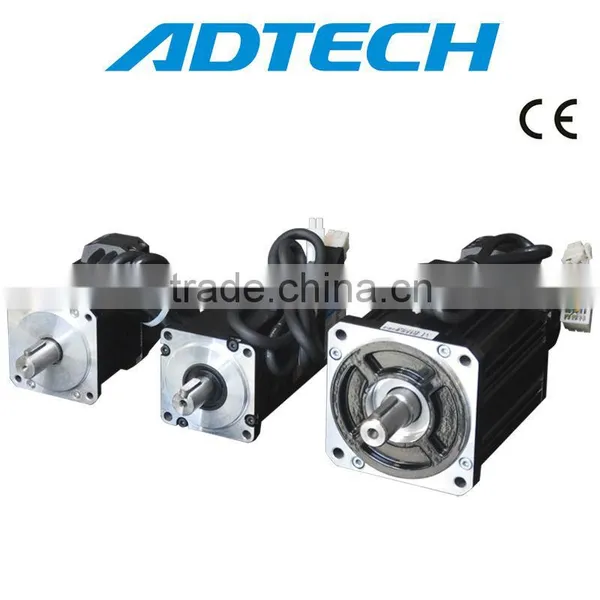

High-Speed AC Servo Motor

Name: High-Speed AC Servo Motor
Brand: ADTECH
SKU: 107842423
Availability: InStock

US$ 1 - 1,200 MOQ: 1 Set

Key Specifications

Brand Name:

ADTECH

Model Number:

ADTECH Series

Type:

Servo Motor

ADTECH (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Brand Name ADTECH

Model Number ADTECH Series

Type Servo Motor

Output Power 400W-3800KW

Certification CE

AC Voltage 208-230 / 240 V

Place of Origin Guangdong, China

Specifications

1) servo motor 0.4kw-3.8kw;
2) Low noise AC servo motor;
3) High precision servo motor;
4) High speed servo motor;
5)ISO,CE

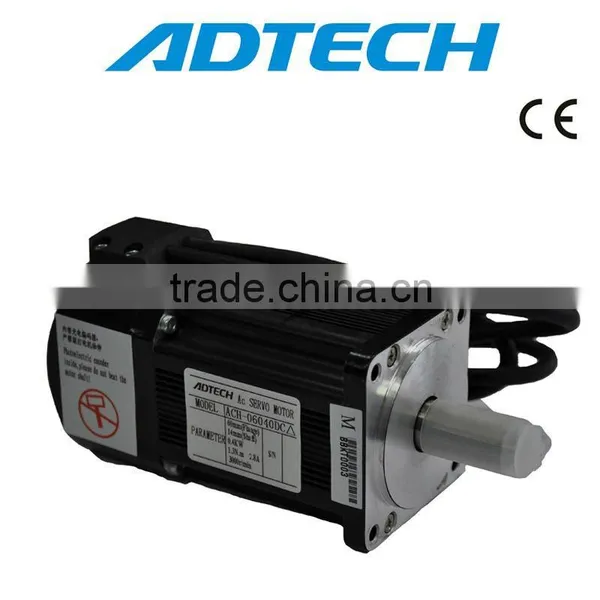

AC Servo Motor ACH-06040D

Features:

AC Servo Motor ACH-06040D Chart:

Servo Motor model	ACH-06040D
Rated power (W)	400
Rated rotation (r/min)	3000
Rated torque (N.m)	1.3
Maximum torque (N.m)	3.8
Rated line current (A)	2.5
Rated line voltage (V)	220
Rotor inertia (Kg.m2×10^-4)	0.26
Brake	---
Coder line number (PPR)	2500
Suitable drive model	QS5AA015M / QS5AA020M
Weight (Kg)	1.7
Insulation grade	B
Rating	Continuous
Ventilation protection	Completely sealed, self cooling

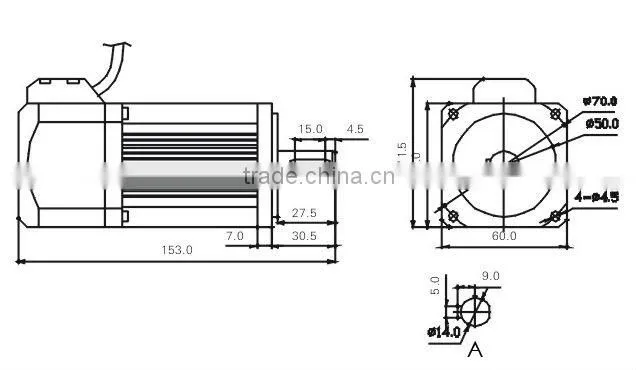

Installation mode	Flange(60, 90,110, 130)
Over-heating protection	None
Place,altitude and atmosphere	Indoor, lower than1000m, no corrosive and inflammable gas, dust and oil mist
Ambient temperature and humidity	Environment temperature: -20°C ~+50°C; relative humidity: <90% (no condensing)

AC Servo Motor ACH-06040D Speed-torque Characteristics Figure:

Relative Product:


servo motor and servo driver	ACH-0604DC Low-inertia Servo Motor	ACH-13100CC Middle Inertia Servo Motor

Low-inertia series ACH motor Rated speed:3000 r/min				ACH Low-Inertia Series
Servo Motor Model	ACH- 06020DC	ACH- 06040DC	ACH- 09075DC	ACH- 11060DC	ACH- 11120DC	ACH- 11150DC	ACH- 11180DC
Flange Specification(mm)	60		86	110
Rated Power(KW)	0.2	0.4	0.75	0.6	1.2	1.5	1.8
Rated Torque(Nm)	0.63	1.3	2.4	2.0	4.0	5.0	6.0
Maximum Torque(Nm)	1.9	3.8	7.1	6.0	12	15	18
Rated Current(A)	1.5	2.8	3	2.5	5.0	6.0	6.0
Rated Speed(r/min)	3000
Rated Voltage(V)	220
Inertia (kgm2x10-4)	0.17	0.302	2.45	3.1	5.4	6.3	7.6
Wire Quantity of Encode (PPR)	2500
Application Environment	Temperature: Work temperature: 0°C ~ 40°C,storage temperature: -20°C ~ 80°C
	Humidity: Relative Humidity< 90%(Non-Frost)
	Air: Indoor condition, less than 1000m high, non corrosive ,non flammable gas and dust and oil-mist
Weight(Kg)	1.11	1.33	3.4	4.5	5.5	6.1	6.7

Middle-Inertia Series ACH Motor Rated Speed:2000 r/min 2500 r/min			ACH Middle-Inertia Series
Servo Motor Model	ACH- 09075BC	ACH- 11120BC	ACH- 13200CC	ACH- 13100CC	ACH- 13150CC	ACH- 13260CC	ACH- 13380C3C
Flange Specification (mm)	86	110	130
Rated Power (KW)	0.75	1.2	2.0	1.0	1.5	2.6	3.8
Rated Torque (Nm)	3.5	6.0	7.7	4.0	6.0	10	15
Maximum Torque (Nm)	10.5	12	22	12	18	25	30
Rated Current (A)	3.0	4.5	7.5	4.0	6.0	10	10
Rated Speed (r/min)	2000		2500
Rated Voltage (V)	220						380
Inertia (kgm2x10-4)	3.4	7.6	15.3	8.5	12.6	19.4	12.6
Wire Quantity of Encode (PPR)	2500
Application Environment	Temperature: Work temperature: 0°C ~ 40°C,storage temperature: -20°C ~ 80°C
	Humidity: Relative Humidity< 90%(Non-Frost)
	Air: Indoor condition, less than 1000m high, non corrosive ,non flammable gas and dust and oil-mist
Weight(Kg)	3.8	6.7	10	7.7	8.9	11.5	14.7
