Specifications
Easy setting,aLL-in-one controlHarmonic suppression;positioning stabilization reduction
Vibration control,CE/ISO improved

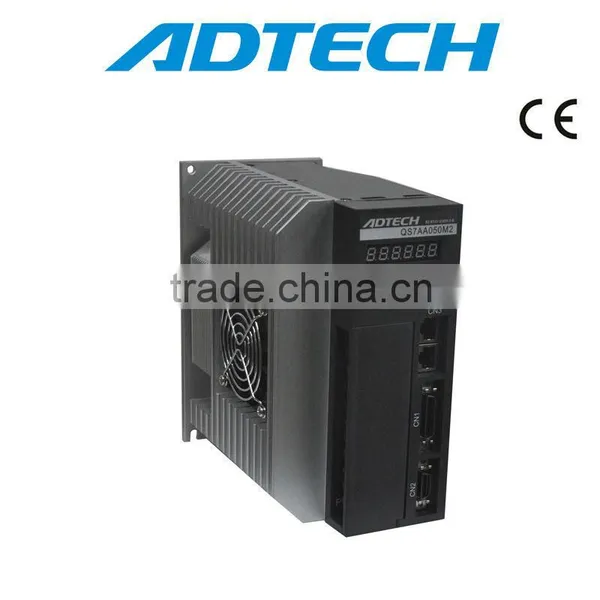

QS7AA050M2 is a new generation of general-purpose servo motor driver, which is optimized and improved on the basis of QS6 series servo driver. Adhering to the series QS6 series servo driver excellent quality, more stable and more convenient. More mature and stable, rich and complete information. The servo drivers add to 485 new communication functions, more convenient and reliable connection with the host computer or controller software.
QS7AA050M2 Servo Controller Feature:
- Fully retain the advantages characteristics of QS6 series servo driver.
- AC sine wave control, torque smoothly and without pulsation.
- 2500 ppr incremental photoelectric encoder, high positioning accuracy, rotary positioning accuracy up 1/10000R.
- Speed ratio up to 1:5000, from low speed to high speed torque characteristics are stable.
- High-speed arithmetic processing FPGA, maximum motor speed up to 5000RPM.
- A rich complete set of parameters that can be configured to run different operating modes, so meet different demand.
- Position, speed, torque control mode, using widely.
- Adopt intelligent space vector control algorithm (SVPWM), could produce greater torque and less noise.
- Up to three times the overload design, with a load capacity greater.
- Perfect protection: over current, overvoltage, overheating and encoder failure, etc.
- Perfect condition monitoring functions, such as the position error, motor speed, feedback pulse, command pulse and so on.
QS7AA010M Servo Controller Paramenters:
Input Voltage |
AC220V -15%~+10% |
Driver Current |
50A |
Matching Motor |
1500W-2600W ServoMotor |
Using Temperature |
Work:45°C Storage:-40°C~55°C |
Relative Humidity |
40%~80% with no condensation |
Atmosphere |
86-106kpa |
Control Mode |
Position control; JOG control; Speed control; Torque control; Position and speed control; Inside pulse control; Electric tool carrier control |
Pulse Command |
Pulse+ Direction; CW + CCW Pulse; Two-phase AB orthogonal pulses |
Control Precision |
0.01% |
Response Frequency |
≤200Hz |
Pulse Frequency |
≤500kHz |
Speed Ratio |
1:5000 |
Regenerative Brake |
Internally Installed |
Electronic Gear |
1/30000~30000/1 |
Overload Capacity |
≤300% |
Feedback Pulse |
2500p/r, Frequency division can be set arbitrary within 0-128 |
Display Function |
Motor speed, motor current, motor torque, motor position, the position deviation, the number of command pulses, the pulse frequency, the straight-line speed, input and output diagnostic |
Protection Function |
Over speed, over current, overvoltage, under voltage, overload, super bad, encoder fault, the temperature is too high, the internal chip failure, module failure |
Relative Product:
|
|
|

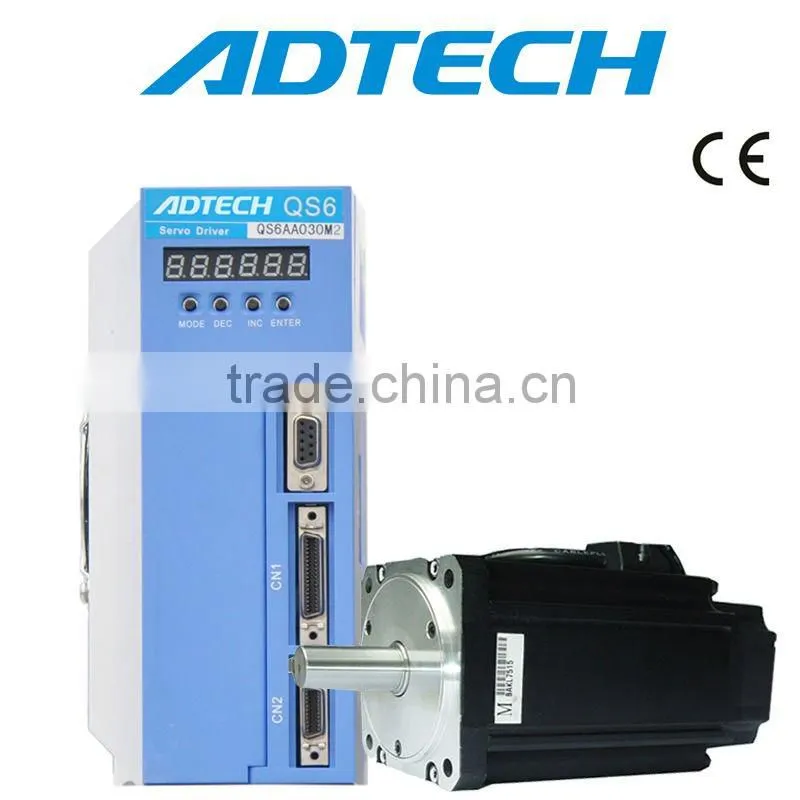

QS6AA030M2 servo motor and servo driver |

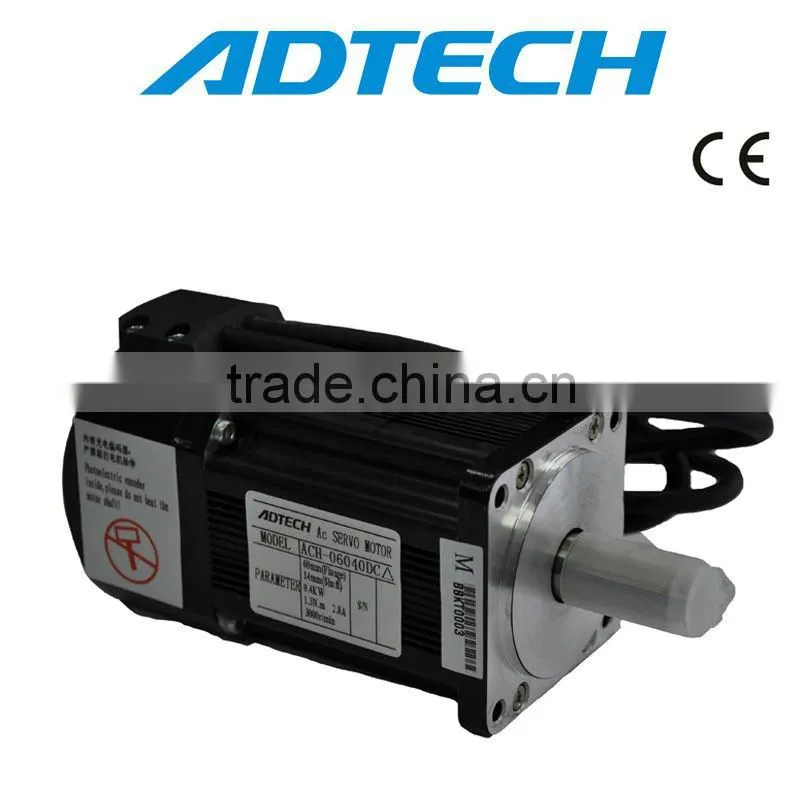

ACH-0604DC Low-inertia Servo Motor | ACH-13100CC Middle Inertia Servo Motor |

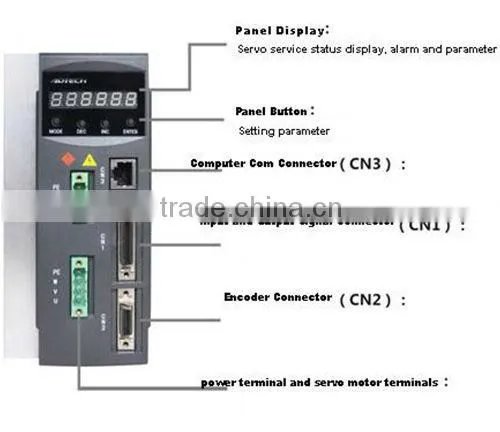

QS7AA010M Servo Controller size:
