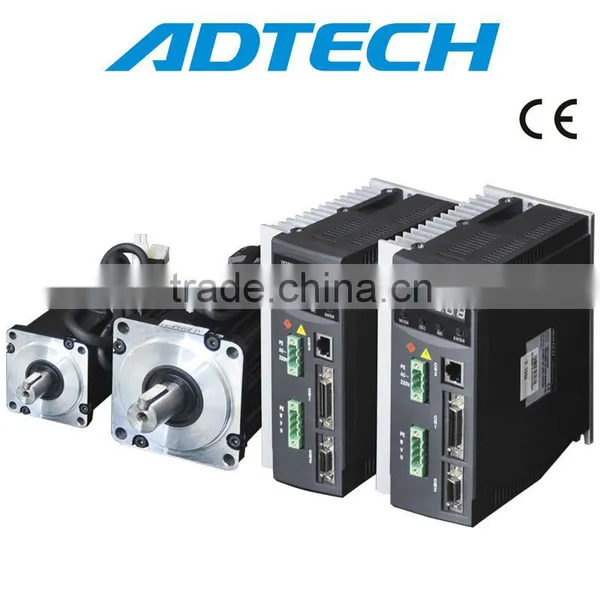

ADTECH Series Low-Inertia AC Servo Motor

Name: ADTECH Series Low-Inertia AC Servo Motor
Brand: ADTECH
SKU: 107842377
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

ADTECH

Model Number:

Low-Inertia Series

Type:

Servo Motor

ADTECH (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Brand Name ADTECH

Model Number Low-Inertia Series

Type Servo Motor

Output Power 0.2kw--1.8kw

Certification CE

AC Voltage 208-230 / 240 V

Place of Origin Guangdong, China

Specifications

1) Low-Inertia Series servo motor;
2) Low noise AC servo motor;
3) High precision servo motor;
4) Rated speed: 3000 r/min

ADTECH Low-Inertia Series Servo Motor

Servo motor is applied to equipment that need to precise location. Such as: fixed-length, election materials, trajectory description, point-to point movement, angel segmentation and so on.
Within the range of rated speed for servo motor, the torque does not decrease. Meanwhile, the servo motor equipped with encoder feedback, so it will be very accurate to position.
When the position of servo motor has error or over loading, servo drives will be alarm of fault.
Servo motor and drives up to a closed-loop system can be used as PID regulation.

Low-inertia series ACH motor Rated speed:3000 r/min				ACH Low-Inertia Series
Servo Motor Model	ACH- 06020DC	ACH- 06040DC	ACH- 09075DC	ACH- 11060DC	ACH- 11120DC	ACH- 11150DC	ACH- 11180DC
Flange Specification(mm)	60		86	110
Rated Power(KW)	0.2	0.4	0.75	0.6	1.2	1.5	1.8
Rated Torque(Nm)	0.63	1.3	2.4	2.0	4.0	5.0	6.0
Maximum Torque(Nm)	1.9	3.8	7.1	6.0	12	15	18
Rated Current(A)	1.5	2.8	3	2.5	5.0	6.0	6.0
Rated Speed(r/min)	3000
Rated Voltage(V)	220
Inertia (kgm2x10-4)	0.17	0.302	2.45	3.1	5.4	6.3	7.6
Wire Quantity of Encode (PPR)	2500
Application Environment	Temperature: Work temperature: 0°C ~ 40°C,storage temperature: -20°C ~ 80°C
	Humidity: Relative Humidity< 90%(Non-Frost)
	Air: Indoor condition, less than 1000m high, non corrosive ,non flammable gas and dust and oil-mist
Weight(Kg)	1.11	1.33	3.4	4.5	5.5	6.1	6.7
