t-shirt bag making machine made in china
Introduction

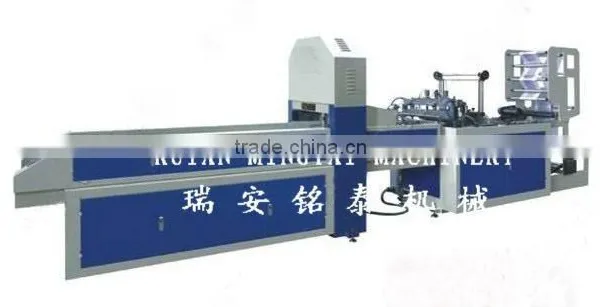

MTCY-500 belongs to plastic film bag-making machinery and can operate at a high speed under the unattended situation. It is a bag-making machine specially adapted to U type plastic films and can deal with bag bottoms,which is suitable for large,medium-Sized or small bag-making producers.
MTCY-500 type bag-making machine has a high-speed operation ability of producing average 80-150m/min film bags per minute and can operate continuously and stably for a long time.While using,this machine can carry on blanking process in the case that no special operator operates and manages for a long time during operation.If raw materials well.it will continue operating.Its key technology is imported from japan's technology with many advantages such as servo drive control novel struture,reliable performance,high production efficiency,high automatic degree and firm seal,etc.This machine is a new model which substitutes original bag-making machine.
Accessory
1.With servo motor: 1 set Panasonic
2.Photo cell: one set
3.Punching device: one set
4.Computer control
5.PLC:1set Mitsubishi
6.Conveyor belt
Main Technical Parameter
Model |
Max. Width of Bag-making |
Max. Length of Bag-making |
Thickness of film |
Speed of Bag-making |
Voltage of electric equipment |
Air pressure |
Outline diameter (LxWxH) |
Weight |
MTCY-500 |
180-350mm |
400-650mm |
0.015-0.035mm |
80-150m/min |
6kw |
5kg/cm |
6500x1200 x1800mm |
1400kg |
