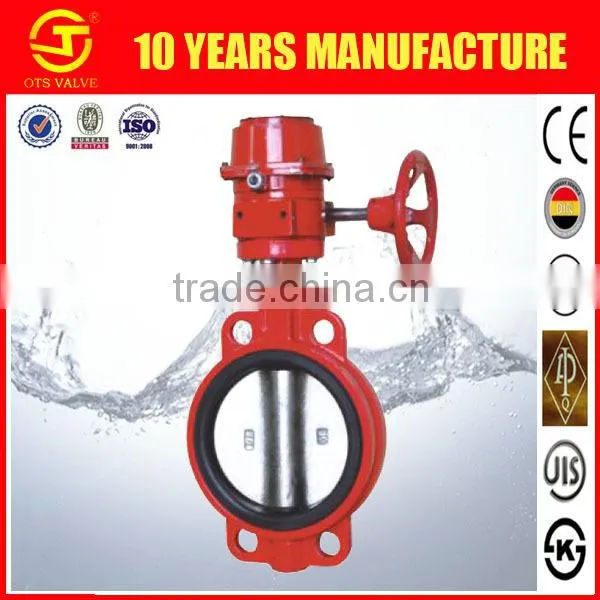

FXV-MD-063 Screw Type Fire Extinguished Signal Butterfly Valve

FXV-MD-063 Screw Type Fire Extinguished Signal Butterfly Valve thumbnail-1
FXV-MD-063 Screw Type Fire Extinguished Signal Butterfly Valve thumbnail-2
FXV-MD-063 Screw Type Fire Extinguished Signal Butterfly Valve thumbnail-3
FXV-MD-063 Screw Type Fire Extinguished Signal Butterfly Valve photo-1
FXV-MD-063 Screw Type Fire Extinguished Signal Butterfly Valve photo-2

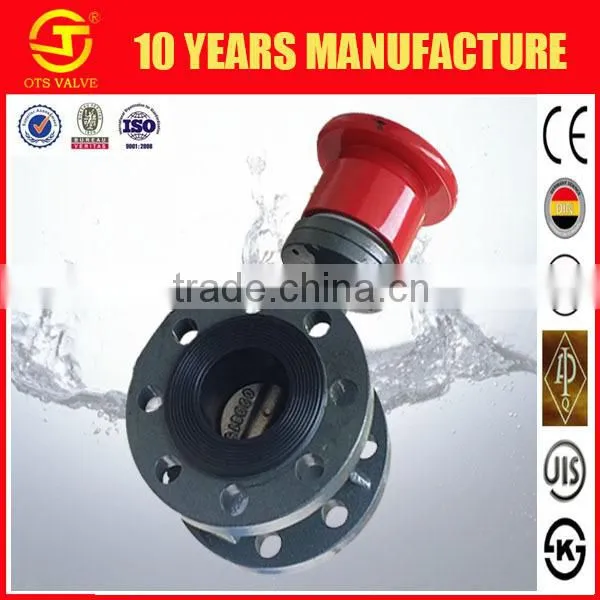

FXV-MD-063 Screw Type Fire Extinguished Signal Butterfly Valve photo-3
US$ 20 - 600 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Low Pressure
Contact Supplier Request Quote Chat Now
Tianjin OTS Valve Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Shanghai/Guangzhou/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Butterfly
Pressure Low Pressure
Power Manual
Material Casting
Temperature of Media Normal Temperature
Media Water
Port Size 40-300
Place of Origin Tianjin, China
Model Number FXV-MD-063
Brand Name OEM

 screw type fire extinguished signal butterfly valve

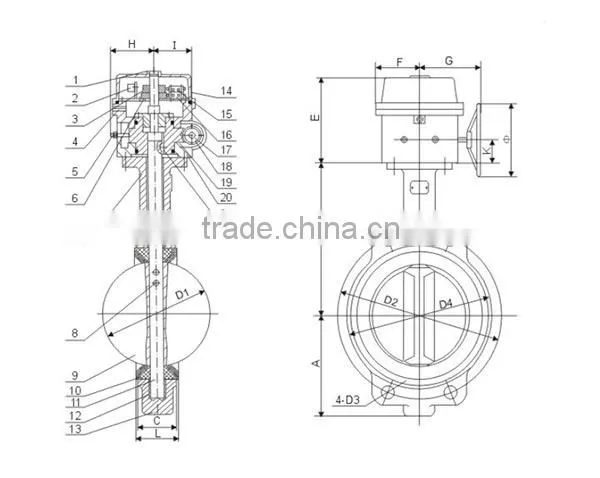

Fire extinguished butterfly valve drawing:



FXV-MD-063 screw type fire extinguished signal butterfly valve

1. Degree of opening instruction

2. wiring electric terminal

3. opening cam

4. out of line mouth

5. spacing screw

6. closing cam

7. "mouth" mould circle

8. pins

9. butterfly disc

10. the valve seat sealing-circle

11. tuming stem

12. stem sleeve

13. valve body

14. chest cover

15. openning microswitch

16. closing microswitch

17. the worm spool

18. worm

19. worm gear

20. chest body.

21, semicircle key





Dimensions and size:



DN A B C D1 D2 D3 D4 E F G H  I  K  L Ø α°
40 11/2'' 75 128 33 42.8 105 23 91 150 60 103 75 41 35 45 150 45
50 2''   129 43 53.1 120 23 96.3 150 60 103 75 41 35 45 150 45
65 2 1/2''   136 46 64.75 136.2 26.5 110 150 60 103 75 41 35 46.7 150 45
80 3''   154 46 79.1 160 18 126.1 150 60 103 75 41 35 49 150 22.5/45
100 4''   171 52 104.6 185 24.5 160 150 60 103 75 41 35 54.7 150 22.5
125 5''   193 56 123.8 215 23 184 150 60 103 75 41 35 58 150 22.5
150 6''   209 56 156.3 238 25 214.4 150 60 103 75 41 35 58.6 150 22.5
200 8''   251 60 203.1 295 25/23 269 150 60 127 75 41 35 63.4 150 15/22.5
250 10''   281 68 251.1 357 29 326 150 60 127 85 63 40 70 200 15
300 12''   316 78 302.2 410 29 385 150 60 127 85 63 40 79.5 200 11.5/15
