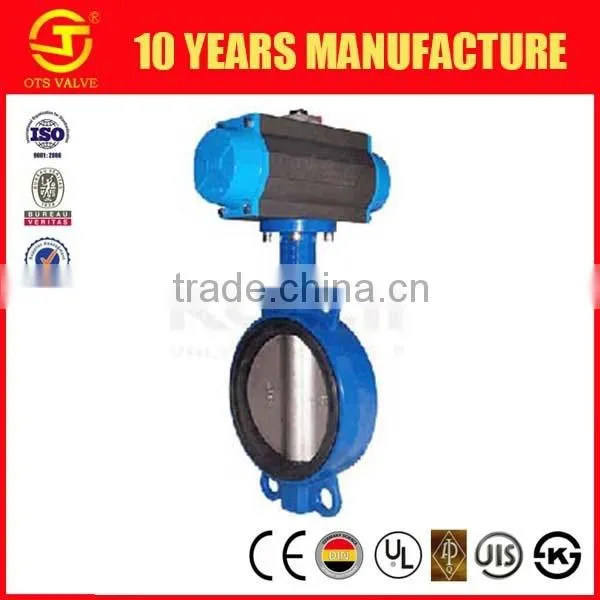

Help Center(BV-MZ-007)pneumatic Actuated Butterfly Valve
Related Products
-
(BV-MZ-012)Electricity Operated Resilient Seated Butterfly ValveUS$ 20 - 30MOQ: 50 Sets -
SV-MD-031 Gas Safety Emergency Shut-off Solenoid ValveUS$ 50 - 1,000MOQ: 20 Sets
-
SV-MD-033 Gas Lantern Safety Emergency Shut-off Electromagnetic ValveUS$ 100 - 1,000MOQ: 20 Sets
-
SV-MD-032 Waterproof and Explosion-proof Netural Gas Solenoid ValveUS$ 1 - 1,000MOQ: 2 Sets
-
BV-MD-036 Electric Air/gas/water/ Oil Direct Action Solenoid ValveUS$ 50 - 2,000MOQ: 1 Set
ABOUT BUTTERFLY VALVE
A butterfly valve is a valve which can be used for isolating or regulating flow. The closing mechanism takes the form of a disk. Operation is similar to that of a ball valve, which allows for quick shut off. Butterfly valves are generally favored because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required. The disc is positioned in the center of the pipe, passing through the disc is a rod connected to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, therefore a pressure drop is always induced in the flow, regardless of valve position.

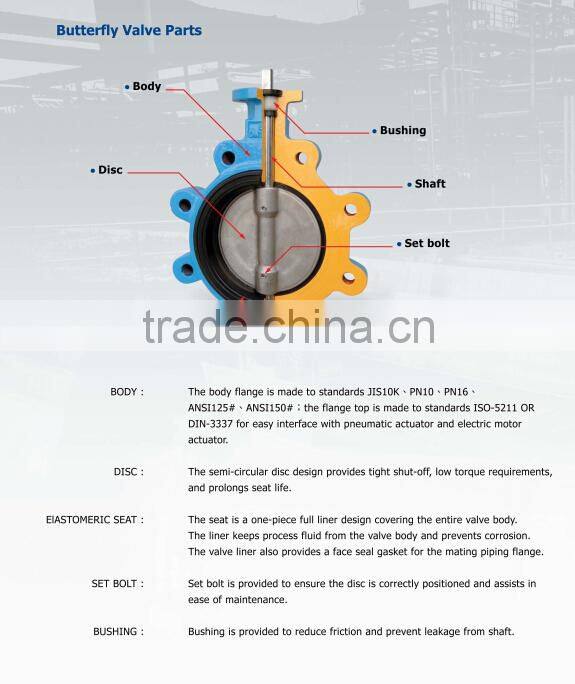

Basic Structure
Technical Data
DN:50-2400
PN:1.0 OR 1.6Mpa
Design Standard:API 609/ AWWA C504 DIN3354 GB/T 12238 EN593 BS5155
Connection Standard: ASME B16 EN12627 DIN3239
Structure Length:BS 5155 EN 558 JIS B2002
Flange Standard:GB/T9113. DB2501 GB13402 JIS B2212 BS4504 BS1560
Testing Standard:GB/T13927 EN12266 DIN 3230 JIS2003 BS5146
Pressure & Temperature:DIN2401 JIS B2073 BS1560

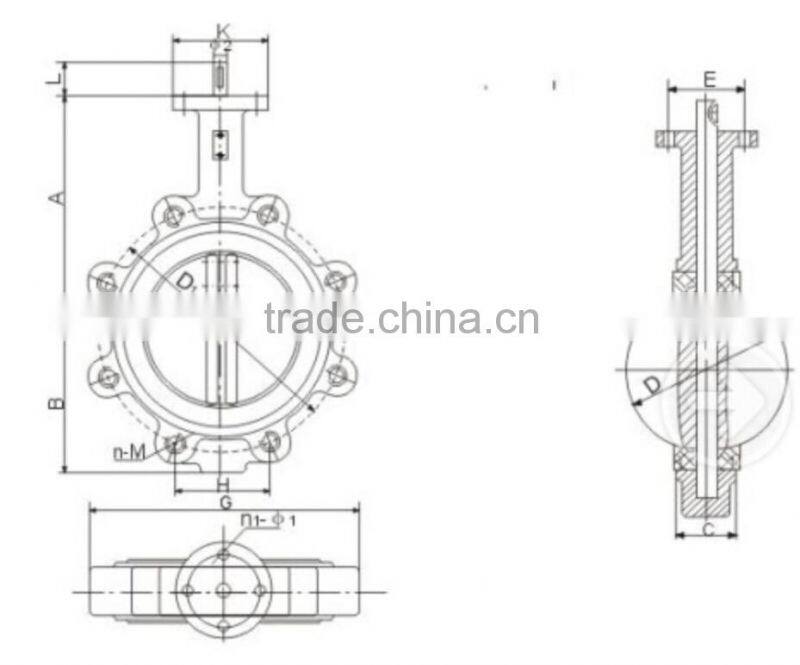

Structure Picture
Connection Dimension & Weight
Products & Packing

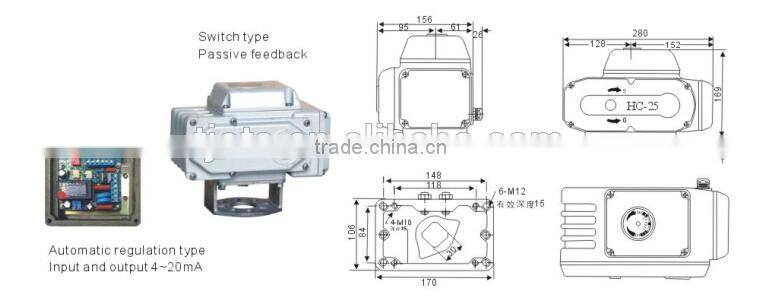

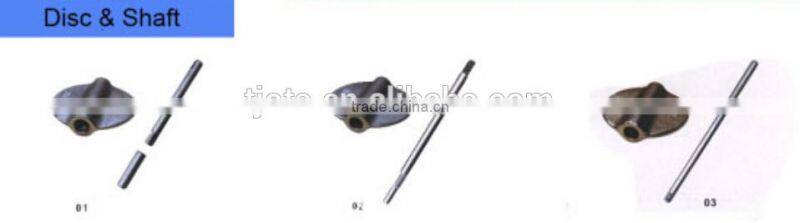

Accessories

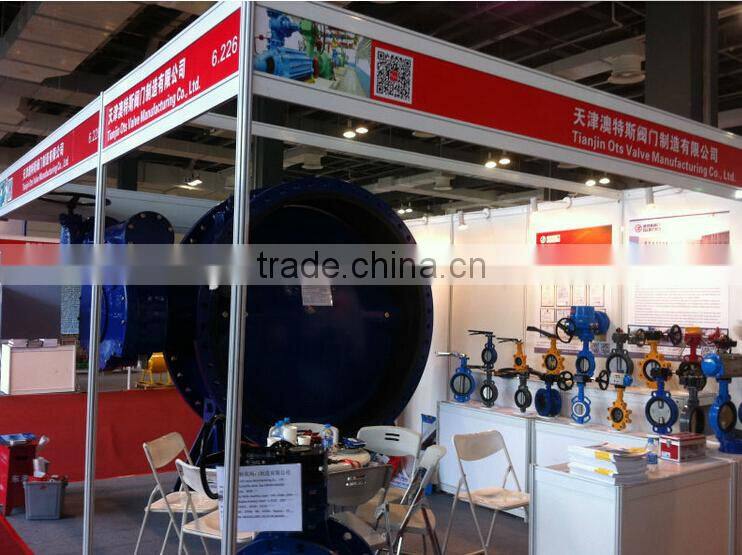

Exhibition Fair
Mainland
1.The Canton Fair in Guangzhou Each Year.
2.Shanghai Fluid Exhibiton.
Overseas
1. Turkey International Pumps & Valves Exhibition.
2. Singapore International Pumps & Valves Exhibition.
3.Thailand International Pumps $ Valves Exhibition.

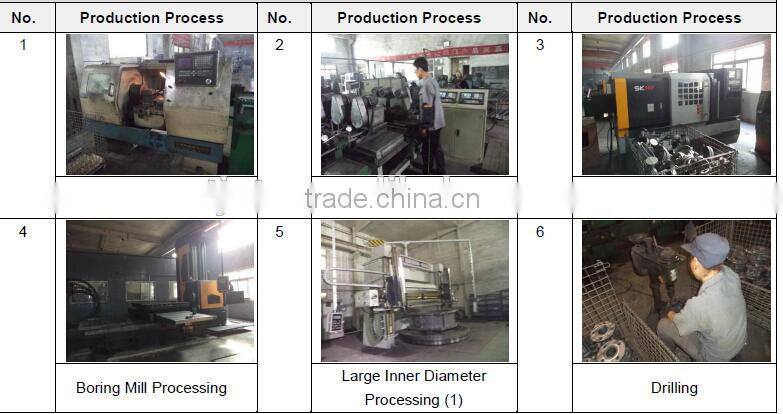

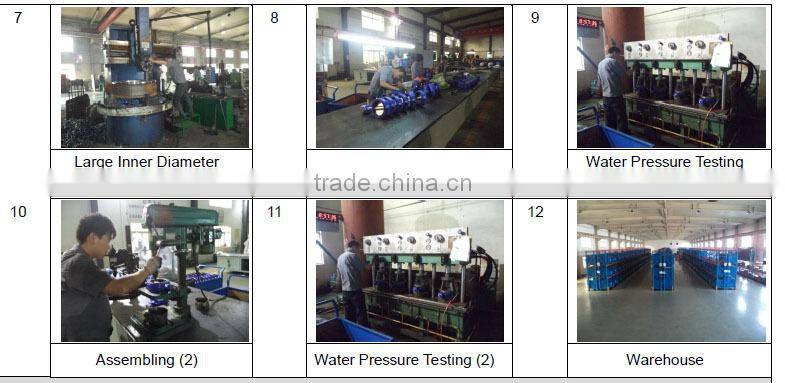

Process
ABOUT OTS
- OVER 10 YEAR'S ODM Experience
- ISO 9001:2008 certificate/ Bureau Veritas audited
- CE AND KS Certificate
- Our certification:
Quality Management System Certification
---CE 0038 Certification
---ISO 9001: 2008 Certification
---Registration Certificate of Consignors and Consignees of Imports and Exports
---Certificate of approval
---PED Certification
---SHA Certification
---60055802 Certification
---KS Certification
---TS Certification
---Business licence
---Organization Code Certificate
Any inquiries or problems about butterfly valves, please contact us freely, and I am very pleased to help you.
