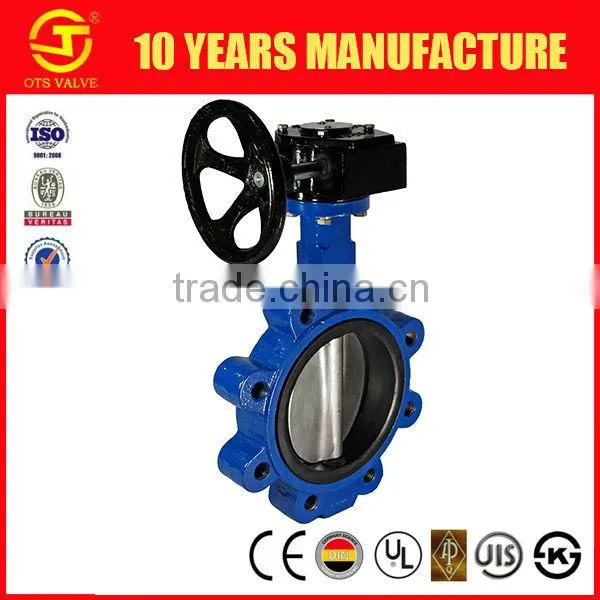

Help Center(BV-MZ-001) Lug Type Centerline Butterfly Valve Manufacturer(DN 50-2400)
Related Products
-
(BV-MZ-003) Concentric Double Flanged Butterfly Valve PriceUS$ 20 - 30MOQ: 50 Sets -
(BV-MZ-002)wafer Style Butterfly Valve for Flow Control MANUFACTURER (DN50-2400)US$ 10 - 100MOQ: 25 Sets
-
(BV-MZ-004)pinless Worm Gear Actuated Butterfly ValveUS$ 20 - 30MOQ: 50 Sets
-
(BV-MZ-007)pneumatic Actuated Butterfly ValveUS$ 200 - 300MOQ: 50 Sets
-
(BV-MZ-012)Electricity Operated Resilient Seated Butterfly ValveUS$ 20 - 30MOQ: 50 Sets
ABOUT BUTTERFLY VALVE
A butterfly valve is a valve which can be used for isolating or regulating flow. The closing mechanism takes the form of a disk. Operation is similar to that of a ball valve, which allows for quick shut off. Butterfly valves are generally favored because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required. The disc is positioned in the center of the pipe, passing through the disc is a rod connected to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, therefore a pressure drop is always induced in the flow, regardless of valve position.

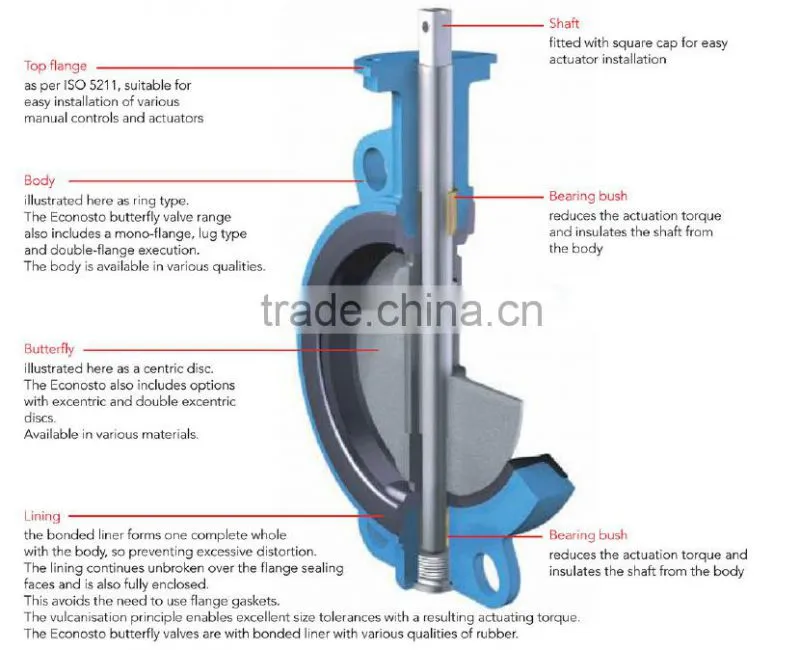

Basic Structure
Technical Data
DN:50(2")-200(8")
PN:1.6Mpa
Design Standard:API 609-2009
Installation Standard: ASMTB116.25-97
Structure Length:ASMT B16.10-2000
Testing Standard:API598-2009

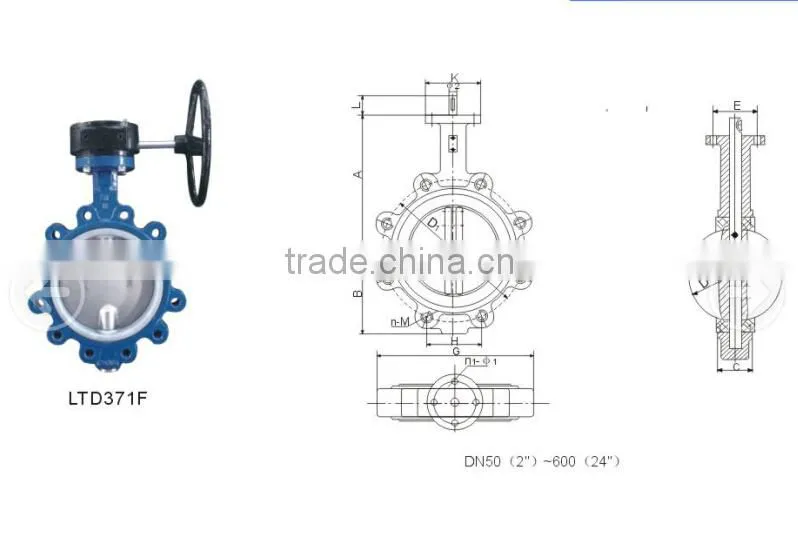

Structure Picture
Connection Dimension & Weight

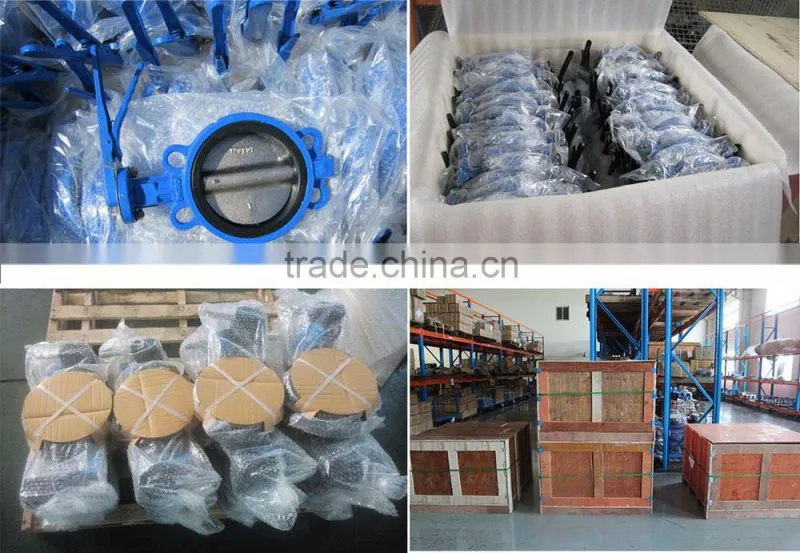

Products & Packing
Accessories

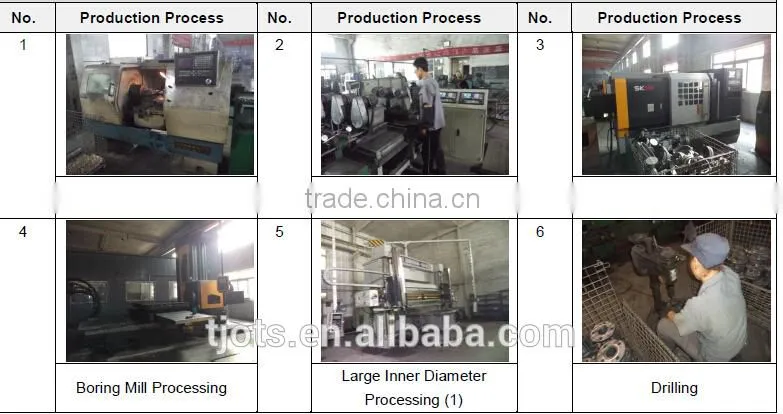

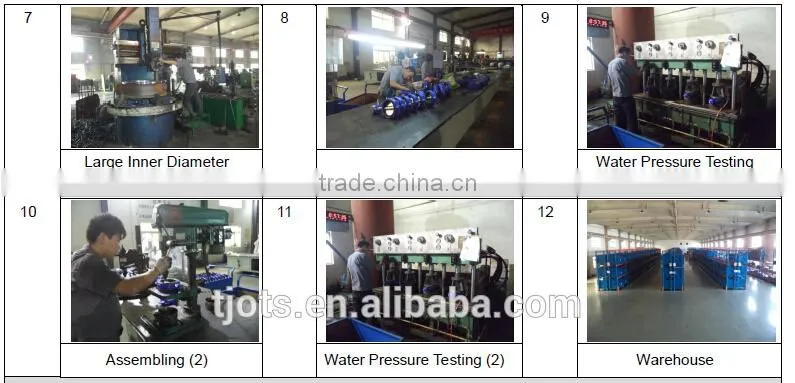

Process
ABOUT OTS
- OVER 10 YEAR'S ODM Experience
- ISO 9001:2008 certificate/ Bureau Veritas audited

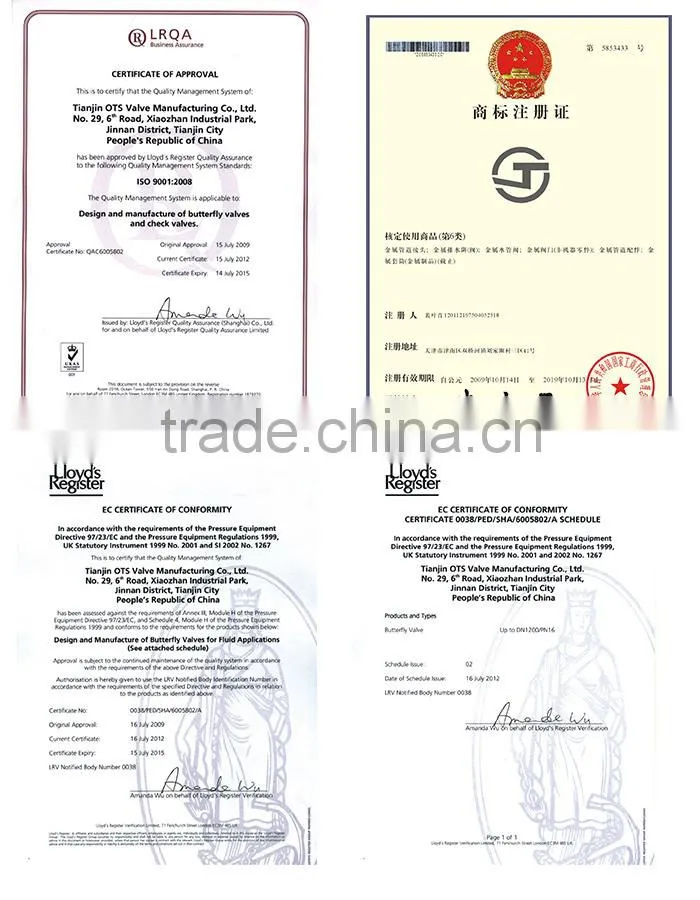

- Our certification:
Quality Management System Certification
---CE 0038 Certification
---ISO 9001: 2008 Certification
---Registration Certificate of Consignors and Consignees of Imports and Exports
---Certificate of approval
---PED Certification
---SHA Certification
---60055802 Certification
---KS Certification
---TS Certification
---Business licence
---Organization Code Certificate
Any inquiry or any problems about butterfly valves, please feel free to contact me, and I am pleased to supply service for you.
