Home > Industrial Equipment & Components > Valve > Ball Valve > BFV-MD-028 Electric Wafer Butterfly Valve

BFV-MD-028 Electric Wafer Butterfly Valve

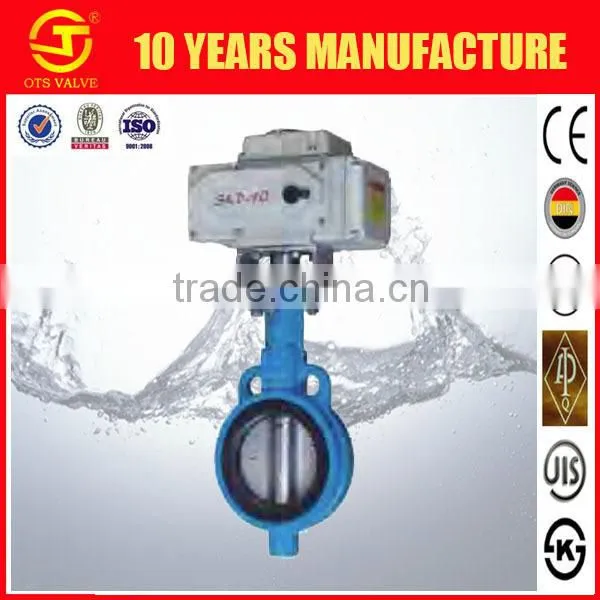

BFV-MD-028 Electric Wafer Butterfly Valve photo-1
US$ 50 - 3,000 MOQ: 20 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Standard or Nonstandard Standard
Structure Butterfly
Pressure Low Pressure
Power Other, electric
Material Casting
Temperature of Media Normal Temperature
Media Water
Port Size 50-1000mm
Place of Origin Tianjin, China
Model Number D971X
Brand Name OEM

electric wafer butterfly valve



valve standard:

JIS. DIN. API. EN. etc. We can supply samples!

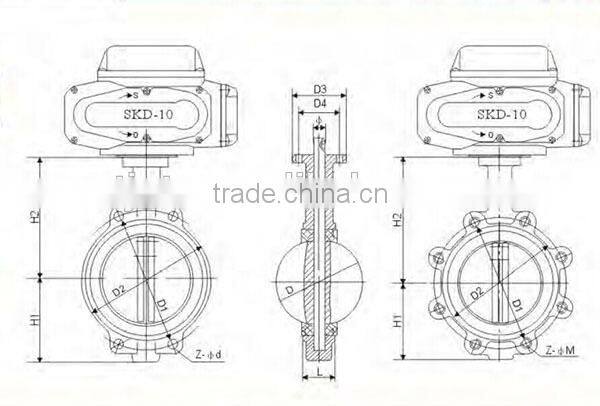

Valve Drawing:



BFV-MD-028 electric wafer butterfly valve

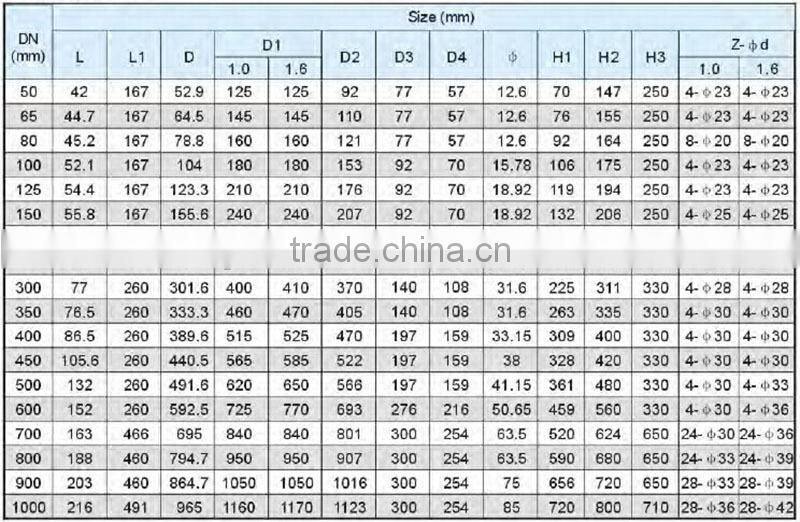

Dimensions:



BFV-MD-028 electric wafer butterfly valve



Notes: A-type butterfly valves DN50(2'')~~DN350(14'') of the D1 and n-Ø accommodate Size GB9112-88, DN2501(Germany)., BS4504, ISO2531, ISO2804, BS10-E, ANSI1259, etc. Standard flange connection. DN400(16'')~~DN500(20'') accomodate GB9112-88, DIN25001, ISO2084,BS4504 flange connection standards.



LT-type butterfly valve structure, performance, materials and parts A type are the same, different is that A type stud through the double-headed( or extended hexagon bolt) on the folder at two flange connection between the(that is, on the clip-on). LT type in addition to the ordinary hexagonal bolts through the two connections between two pipelines, but also can be installed in the pipe end (that is, a single clip-on), as the emptying valve, but need to order the contract specify the use of pipe end.



If you are interested in any types, pls feel free to write to us. Your email will be replied within 24 hours!
