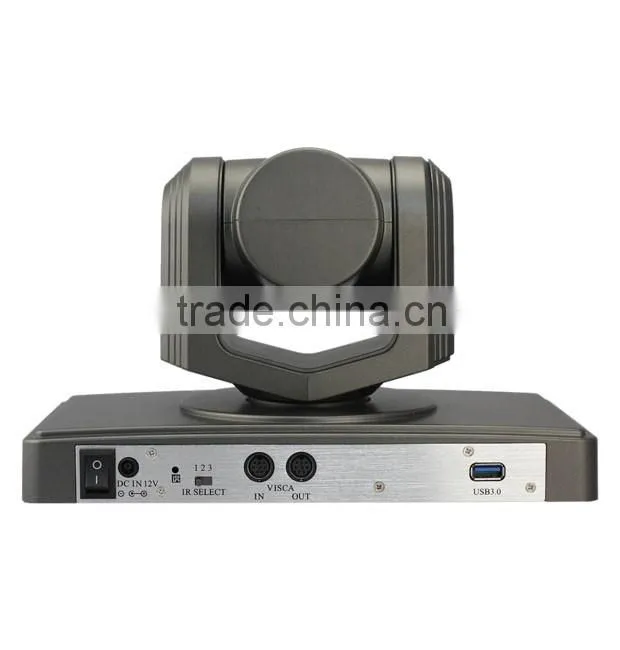

SMTSEC New USB3.0 video output Sony 3X Optical 12X Digital 3.27 Megapixel USB HD video conferencing camera (SCV-HD610-U30-SE600)
Low Cost High Performance 2.0 M HD Video camera achieved 1080p@30 high quality images. Equipped with SONY 3x optical, 12x digital zoom lens with wide Horizontal View field, ideally for small-sized videoconference rooms, auditoriums, and classroom. Support USB Interface which is easy to installation and transfer high-quality video streaming.
Features:
cutting-edge High Definition PTZ camera
Fast and smooth video handling
Low cost design for marketing
Power ON-OFF switch
Work & Standby LED indicator
Speed Match
Auto/Manual focus/brightness/WB
RS-232C/VISCA Protocol
Lens/Dome OSD
Boundary scanning
Standby & wakeup status
Standard UVC protocol
Performance:
1/2.8" Type CMOS
2.0 Megapixel
0.25 Lux at F1.2
720P@30, 1080P@30
3x Optical x 12 digital zoom
f=3.00 to 9mm F1.2-2.1
HOV 1080P 90degree,720P 70degree
USB3.0 Video output
Pan : 0-355°
Tilt: Up: 45°, Down: 45°
64 preset positions
4 cruise lines
DC 12V, 2A
Dimension:
L 250mm x W 140mm x H154mm
N. Weight: 1.23 kgs (only camera)
G. Weight: 2.4 kgs (one unit)
N.W Carton of 2 units: 2.6 kgs
G. W Carton of 2 units:5.5 kgs
Installation:
Desktop
Ceiling mount
Standard Tripod accessory
Model No. |
SVC-HD610-U30-SE600 |
|
Image |
Image Sensor |
1/2.8" Type CMOS |
Effective Pix |
2.0 Megapixel |
|
Min. Illumination |
0.25 Lux at F1.2 |
|
White balance |
Auto/Manual/Indoor/Outdoor |
|
Gain control |
Auto |
|
Backlight compensation |
On/Off |
|
Shutter speed |
1/1~1/10,000S, 22 steps |
|
S/N ratio |
>50db |
|
Lens |
Focus |
f=3.00(wide) to 9mm(tele) F1.2-2.2 |
Iris |
Auto/Manual |
|
Lens |
3 Optical x 12 digital zoom |
|
Horizontal view angle |
1080P:90 degree 720P:70 degree |
|
Video output |
USB3.0 |
|
Signal system |
720P@30, 1080P@30 |
|
Control terminal |
EIA/RS232C,EIA/RS485(Bidirectional) |
|
Control Protocol |
VISCA,PELCO-D |
|
baud rate |
9600/38400bps |
|
patrol line |
4 cruise sequence |
|
preset position |
64 preset positions |
|
Speed Match |
Pan/Tilt movement speed depends on camera module zoom in/out |
|
OSD Menu |
Access to OSD Menu and adjust camera module parameters |
|
Image auto flp |
Support Horizontal/Vertical image flip |
|
Pan movement speed |
1-200°/Second |
|
Tilt movement speed |
1-150°/Second |
|
Pan movement range |
Pan: 0-355° |
|
Tilt movement range |
Up: 45°, Down: 45° |
|
Pan scanning automatically |
Support Pan scanning automatically |
|
Boundary scanning |
0-359° scanning (programmable) |
|
Remote controller |
IR Wireless Remote controller P/T/Z |
|
Power supply |
DC12V,2A |
|
Work Temperature |
0-50℃ |
|
Humidity |
0-95%RH |
|
LxWxH |
250mm x 140mm x 145mm |
|
Weight |
2.8 kgs |
|
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
