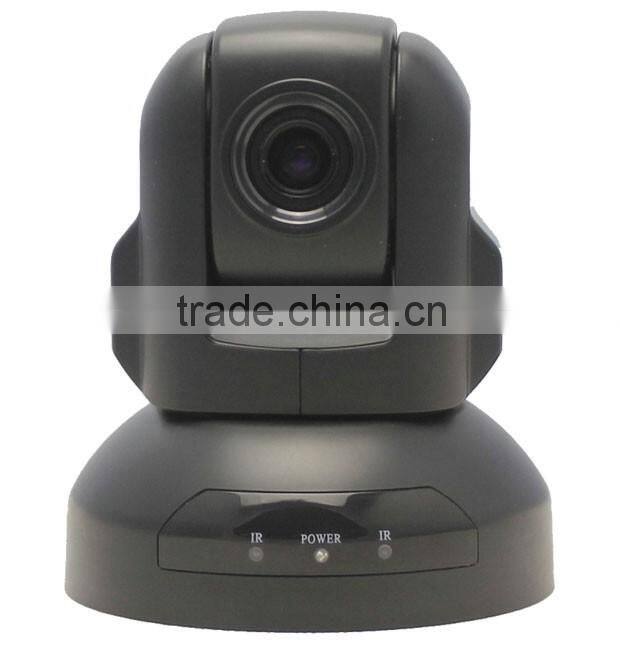

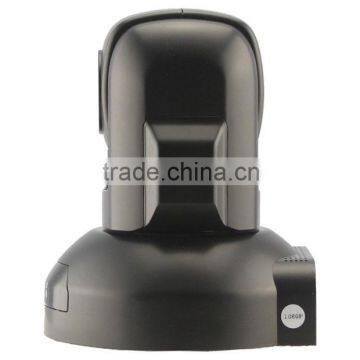

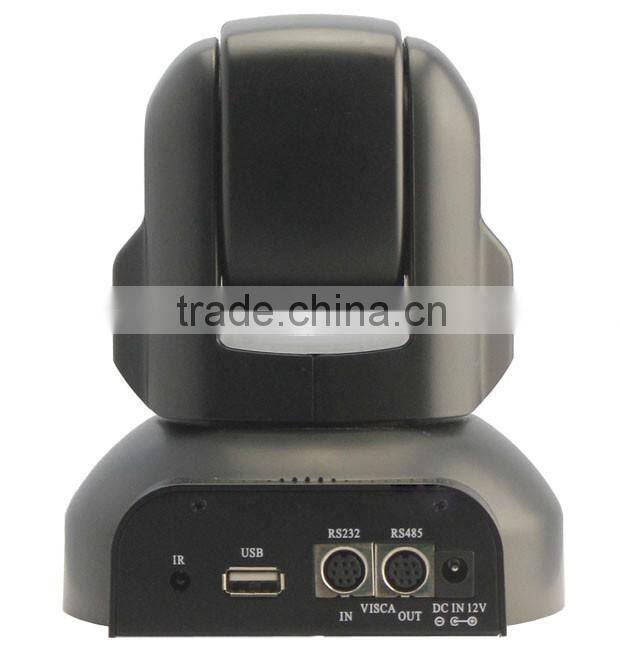

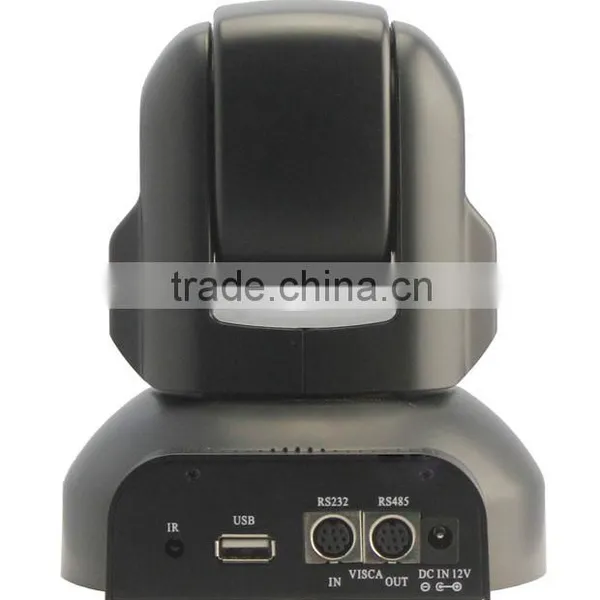

SMTSEC 3X Zoom USB2.0 HD video output Support USB wire control PTZ 2.0MP USB HD video conferencing camera(SCV-HD653)
Low Cost High Performance 2.0 Megapixel HD Color Video camera achieved 1080p@30 or 720p@30 high quality images. Equipped with 5-15mm varifocal lens, USB 2.0 ideally for Small or Medium size Web conferencing system, easily connecting to laptop for whom on business trip.
Features:
Smart design High Definition PTZ camera
Fast and smooth video handling
Low cost design for video conferencing
Work & Standby LED indicator
Speed Match
Auto/Manual IRIS/brightness/WB
RS-232C/VISCA Protocol
Boundary scanning
Image auto-flip
OSD Menu on screen
USB 2.0 simple connection for PTZ Control & video display
Performance:
1920x1080pixels progressive @30fps
5-15mm lens
HOV 41 degree
1/2.7″ HD color CMOS
Pan ±180 degree continuously
Tilt + 90 degree, - 45 degree
64 preset positions
4 cruise lines
DC 12V, 1.2A
Dimension:
L 124mm x W 120mm x H145mm
N. Weight: 1.3kgs
G. Weight: 1.5kgs
Installation:
Desktop
Ceiling/wall mount
Standard Tripod accessory
5 meters USB Cable
Model | SVC-HD653 | |
Image SenSor | Sensor | 1/2.7” HD color CMOS |
Signal System | PAL/NTSC | |
Minimum Scene lllumination | 0.5Lux at F2.0 | |
White Balance | AUTO/Manual | |
Gain Control | AUTO | |
Back-light compensation | ON/OFF | |
S/N Ratio | >50db | |
Lens | Lens | f=5-15mm F=1.6 |
Iris | AUTO/Manual | |
Zoom | Fixed lens | |
Hov | 19-41 degree | |
Video Output | USB Interface | |
Video format | MJPG/1080P29, 720P@30, YUY2/1080P@5,720P@9 | |
Control Decoder | EIA/RS-485, USB | |
Communication | EIA/RS-232(Bidirectional) | |
PTZ Control Protocol | VISCA, PELCO-D | |
Baud Rate | 9600/38400bps | |
Patrol tours | 4 | |
Preset | 64 | |
Save status after Power off | Support | |
Speed Matching Function | Support | |
Image Auto Flip | Support | |
Pan Speed | 0-280 degrees/s | |
Tilt Speed | 0-100 degrees/s | |
Pan Rotation Angle | 360 degrees | |
Tilt Rotation Angle | + 90 degrees, - 45 degree | |
Auto Pan Scan | Support | |
Boundary Scan | 0-359 degree(Programmable) | |
Remoter Control | IR Wireless remote control P/T/Z | |
Power | DC12V ±10% 1.2A | |
Operation Temperature | 0℃~50℃ | |
Environmental humidity | 0-95%RH(non-condensaion) | |
Length X width X high | 124x120x145mm/220x175x220mm(NET/PACKAGE) | |
Weight | 640g/1100g(NET/PACKAGE) | |
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
