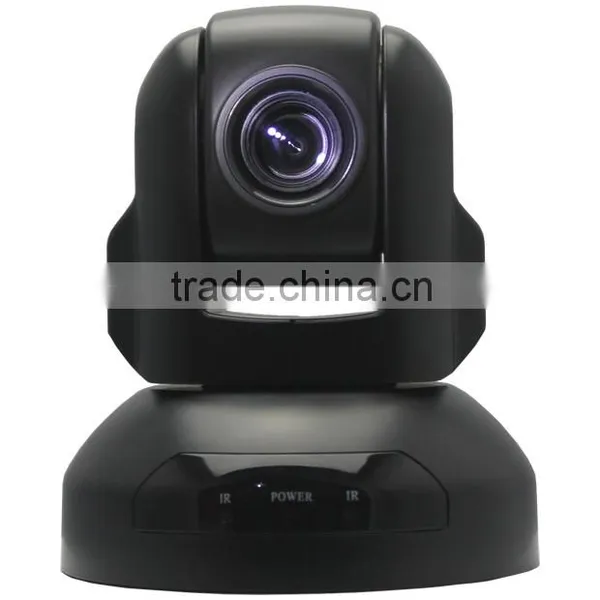

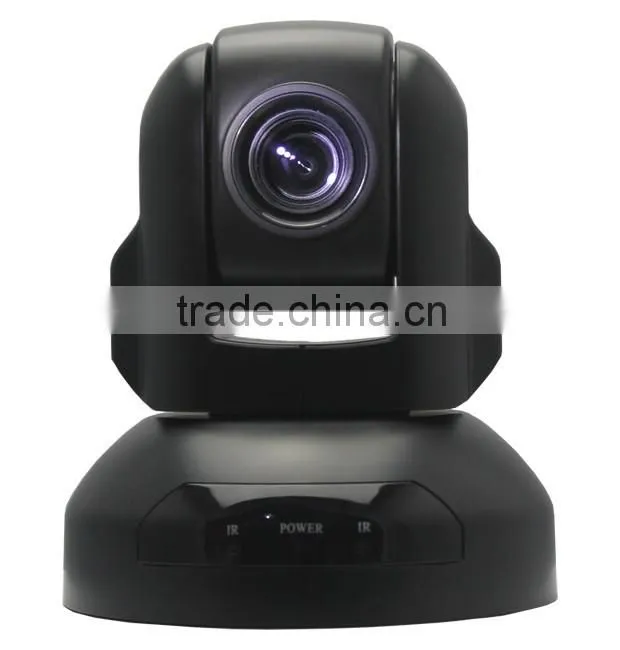

SMTSEC 10X Optical Zoom Support USB Wire Control PTZ 1.30 Megapixel USB HD Video Conferencing Camera (SCV-HD654)

SMTSEC 10X Optical Zoom Support USB Wire Control PTZ 1.30 Megapixel USB HD Video Conferencing Camera (SCV-HD654) thumbnail-1
SMTSEC 10X Optical Zoom Support USB Wire Control PTZ 1.30 Megapixel USB HD Video Conferencing Camera (SCV-HD654) thumbnail-2
SMTSEC 10X Optical Zoom Support USB Wire Control PTZ 1.30 Megapixel USB HD Video Conferencing Camera (SCV-HD654) thumbnail-3
SMTSEC 10X Optical Zoom Support USB Wire Control PTZ 1.30 Megapixel USB HD Video Conferencing Camera (SCV-HD654) photo-1
SMTSEC 10X Optical Zoom Support USB Wire Control PTZ 1.30 Megapixel USB HD Video Conferencing Camera (SCV-HD654) photo-2
SMTSEC 10X Optical Zoom Support USB Wire Control PTZ 1.30 Megapixel USB HD Video Conferencing Camera (SCV-HD654) photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SMTSEC
Model Number:
SCV-HD654
Contact Supplier Request Quote Chat Now
Shenzhen Smart Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SMTSEC
Model Number SCV-HD654
Type Digital Camera
Style Dome Camera
Sensor CMOS
Technology Pan / Tilt / Zoom

SMTSEC 10X Optical Zoom Support USB wire control PTZ  1.30 Megapixel USB HD video conferencing camera (SCV-HD654)



Product Description

 Low Cost High Performance 1.3Megapixel HD Color Video camera achieved 720p@30 high quality images. Equipped with 4.9-49mm varifocal lens, USB 2.0 ideally for Small or Medium size Web conferencing system, easily connect to laptop for whom on business trip and compatible with any Web Conferencing system in any OS.


Features:

 Smart design High Definition PTZ camera

 Fast and smooth video handling

 Low cost design for video conferencing

 Work & Standby LED indicator

 Speed Match

 RS-232C/VISCA Protocol

 Boundary scanning

 USB 2.0

Performance:

 1280x720pixels progressive @30fps

 4.9-49mm 10x optical zoom lens

 HOV48.4 degree
 1/3”HD colorCMOS Sensor

 Pan ±180degree continuously

 Tilt +90 degree, - 45 degree

 64 preset positions

 4 cruise lines

 DC 12V, 1.2A

Dimension:

 L 124mm x W 120mm x H145mm

 N. Weight: 1.3kgs

 G. Weight: 1.5kgs

Installation:

 Desktop

 Ceiling/wall mount

 Standard Tripod accessory

 5 meters USB Cable



Model

SVC-HD654


SenSor

Sensor

1/3”HD colorCMOS

Minimum Scene lllumination

0.1Lux at F1.2

White Balance

N/A

Gain Control

AUTO

Back-light compensation

ON/OFF

S/N Ratio

>50db

Lens

Lens

f=4.9-49mm

Iris

AUTO/Manual

Zoom

10x Optical Zoom

Hov

48.4 degree

Video Output

USB 2.0

Video format

720P@30

Control Decoder

EIA/RS-485, USB

Communication

EIA/RS-232(Bidirectional)

PTZ Control Protocol

VISCA,PELCO-D

Baud Rate

9600/38400bps

Patrol tours

4

Preset

64

OSD Menu

N/A

Speed Matching Function

Support

Image Auto Flip

/

Pan Speed

0-150 degrees/s

Tilt Speed

0-100 degrees/s

Pan Rotation Angle

360 degrees

Tilt Rotation Angle

+ 90 degrees, - 45 degree

Auto Pan Scan

Support

Boundary Scan

0-359degree (Programmable)

Remoter Control

IR Wireless remote control P/T/Z

Power

DC12V ±10% 1.2A

Operation Temperature

0℃~50℃

Environmental humidity

0-95%RH(non-condensaion)

Length X width X high

124x120x145mm/220x175x220mm(NET/PACKAGE)

Weight

800g



 SMTSEC 10X Optical Zoom Support USB wire control PTZ 1.30 Megapixel USB HD video conferencing camera (SCV-HD654)SMTSEC 10X Optical Zoom Support USB wire control PTZ 1.30 Megapixel USB HD video conferencing camera (SCV-HD654)SMTSEC 10X Optical Zoom Support USB wire control PTZ 1.30 Megapixel USB HD video conferencing camera (SCV-HD654)





Packaging & Shipping



China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)



•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.



Our Services



•All products have been checked and packaged in good condition before dispatch.

•All products have 1 year warranty.

SMTSEC 10X Optical Zoom Support USB wire control PTZ 1.30 Megapixel USB HD video conferencing camera (SCV-HD654)SMTSEC 10X Optical Zoom Support USB wire control PTZ 1.30 Megapixel USB HD video conferencing camera (SCV-HD654)SMTSEC 10X Optical Zoom Support USB wire control PTZ 1.30 Megapixel USB HD video conferencing camera (SCV-HD654)SMTSEC 10X Optical Zoom Support USB wire control PTZ 1.30 Megapixel USB HD video conferencing camera (SCV-HD654)SMTSEC 10X Optical Zoom Support USB wire control PTZ 1.30 Megapixel USB HD video conferencing camera (SCV-HD654)





 SMTSEC 10X Optical Zoom Support USB wire control PTZ 1.30 Megapixel USB HD video conferencing camera (SCV-HD654)
